Controls
Become familiar with all the controls before you start the engine and operate the machine.
Control Panel

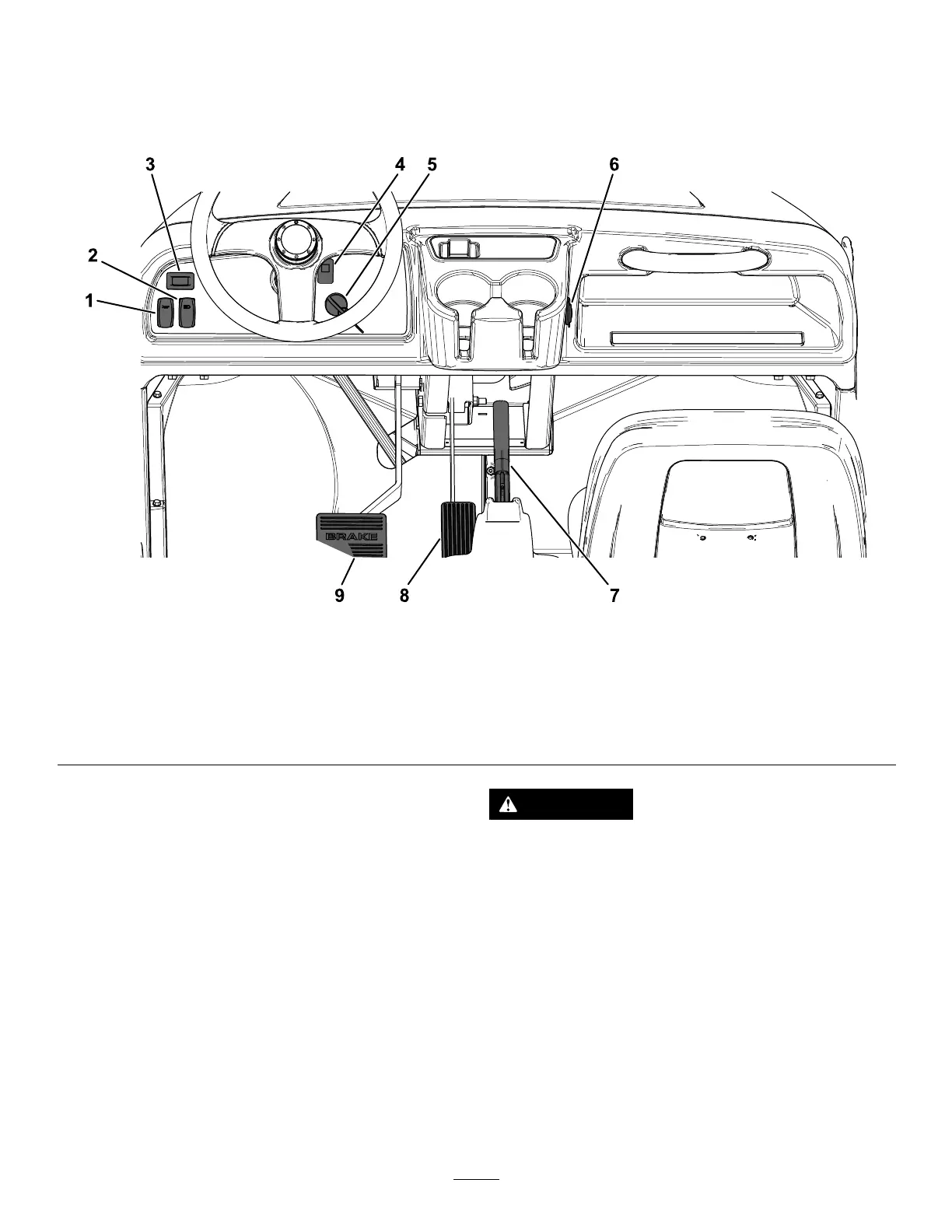

g382793
Figure 7
1. Horn switch
6. USB power point
2. Light switch 7. Parking-brake lever
3. Hour meter 8. Accelerator pedal
4. Engine oil-pressure Light 9. Brake pedal
5. Key switch
Accelerator Pedal
Use the accelerator pedal ( Figure 7 ) to vary the
ground speed of the machine. Pressing down the
accelerator pedal starts the engine. Pressing the
pedal farther increases the ground speed. Releasing
the pedal slows the machine, and the engine shuts of f.
Note: The maximum forward speed is 26 km/h
(16 mph).
Brake Pedal
Use the brake pedal to stop or slow the machine
( Figure 7 ).
CAUTION
Operating a machine with worn or incorrectly
adjusted brakes can may result in personal
injury .
If the brake pedal travels to within 25 mm (1
inch) of the machine oor board, adjust or
repair the brakes.
Parking-Brake Lever
The parking-brake lever is located between the seats
( Figure 6 and Figure 7 ). Whenever you shut of f the
engine, engage the parking brake to prevent the
machine from accidentally moving. T o engage the
parking brake, pull up the parking-brake lever . T o
disengage the parking brake, push the lever down.
