Toro Workman MDX User Manual

Electrical System
Maintenance
Electrical System Safety
• Disconnect the battery before repairing the
machine. Disconnect the negative terminal rst
and the positive last. Connect the positive terminal
rst and the negative last.
• Charge the battery in an open, well-ventilated
area, away from sparks and ames. Unplug the
charger before connecting or disconnecting the
battery . W ear protective clothing and use insulated
tools.
Servicing the Battery
Battery voltage: 12 V with 300 A (cold-cranking) at
-18°C (0°F).
• Always keep the battery clean and fully charged.
• If the battery terminals are corroded, clean them
with a solution of 4 parts water and 1 part baking
soda.
• Apply a light coating of grease to the battery
terminals to prevent corrosion.
Disconnecting the Battery
W ARNING
Incorrect battery cable routing could damage
the machine and cables, causing sparks.
Sparks can cause the battery gasses to
explode, resulting in personal injury .
• Always disconnect the negative (black)
battery cable before disconnecting the
positive (red) cable.
• Always connect the positive (red) battery
cable before connecting the negative
(black) cable.
• Always keep the battery strap in place to
protect and secure the battery .
W ARNING
Battery terminals or metal tools could short
against metal machine components, causing
sparks. Sparks can cause the battery gasses
to explode, resulting in personal injury .
• When removing or installing the battery ,
do not allow the battery terminals to touch
any metal parts of the machine.
• Do not allow metal tools to short between
the battery terminals and metal parts of the
machine.
1. Squeeze the sides of the battery cover and
remove the cover from the top of the battery
( Figure 46 ).
g024429

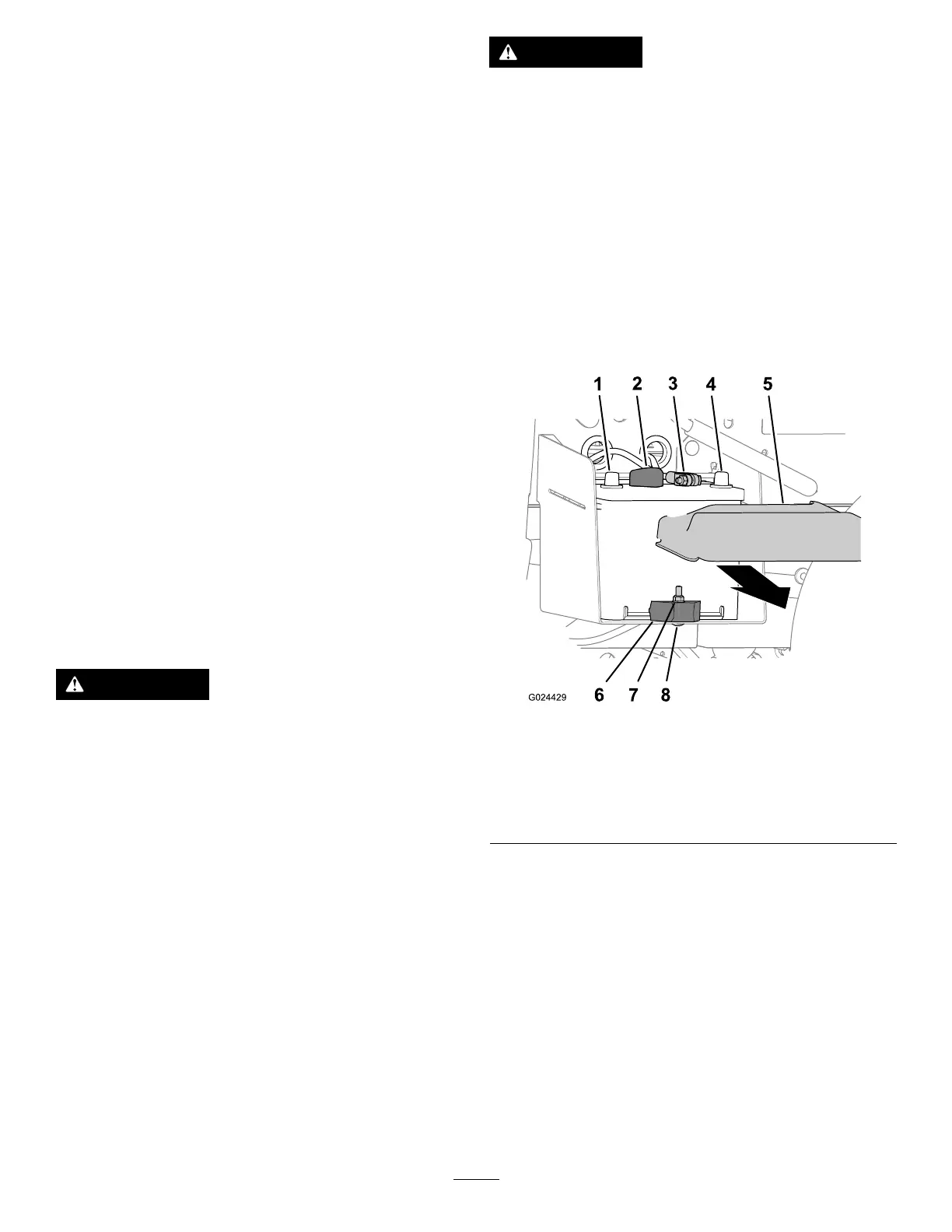

Figure 46
1. Positive battery terminal 5. Battery cover
2. Positive battery cable 6. Battery clamp
3. Negative battery cable 7. Locknut
4. Negative battery terminal
8. Carriage bolt
2. Disconnect the negative battery cable from the
terminal of the battery ( Figure 46 ).
3. Disconnect the positive battery cable from the
terminal of the battery ( Figure 46 ).
Removing the Battery
1. Disconnect the battery cables; refer to
Disconnecting the Battery ( page 42 ) .
2. Remove the locknut, carriage bolt, and battery
clamp that secures the battery to the battery tray
( Figure 46 ).
3. Remove the battery from the battery tray ( Figure
46 ).
42
