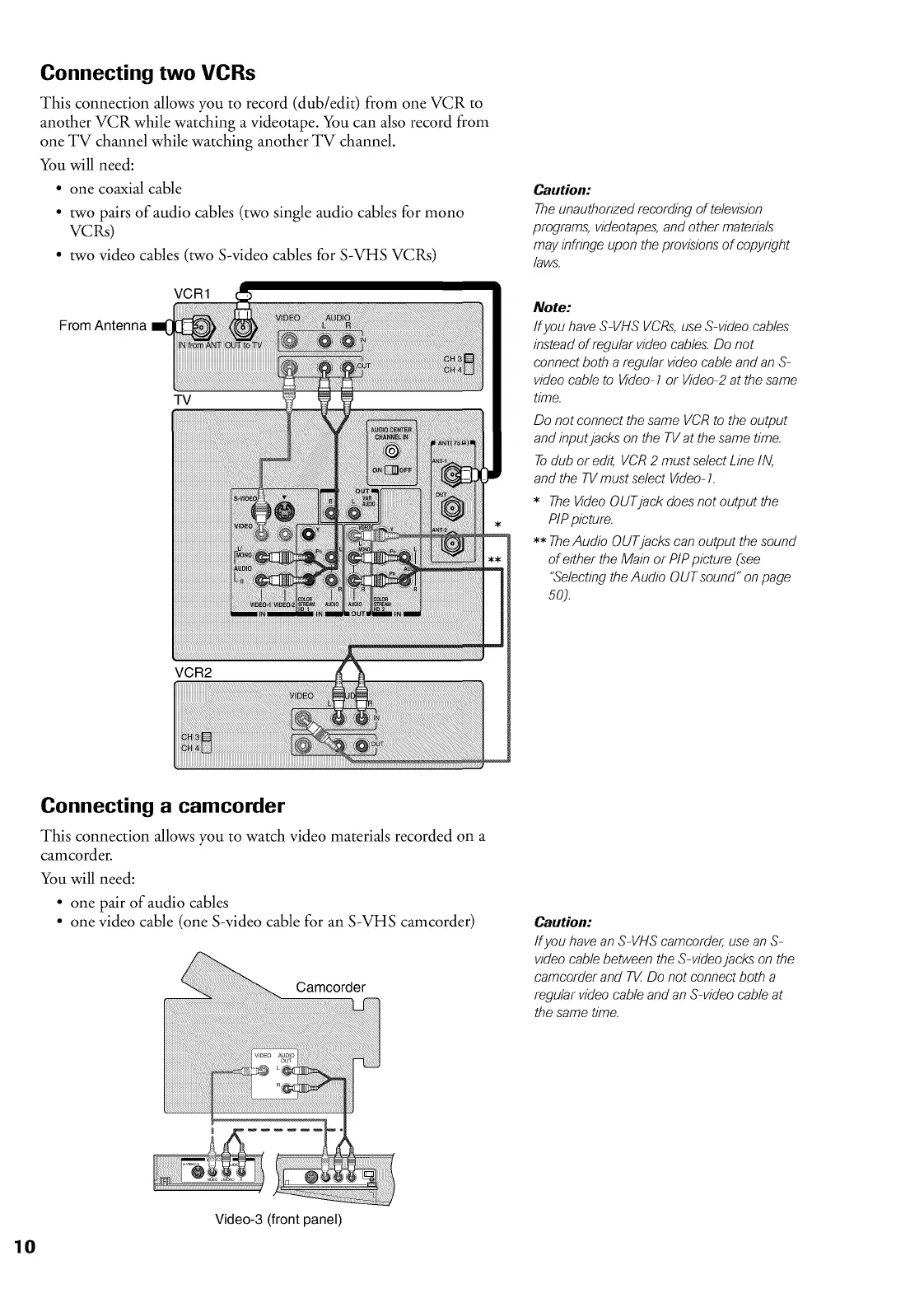

Connecting two VCRs
This connection allows you to record (dub/edit) from one VCR to
another VCR while watching a videotape. You can also record from
one TV channel while watching another TV channel.
You will need:
• one coaxial cable
• two pairs of audio cables (two single audio cables for mono
VCRs)
• two video cables (two S-video cables for S-VHS VCRs)
VCR1
From Antenna
TV
VCR2
Caution:
Theunauthorizedrecording of television
programs, videotapes,and other materials
may infringe upon the provisionsof copyright
laws.
Note:
Ifyou have S-VHS VCRs, use S-video cables
instead of regular video cables. Do not
connect both a regular video cable and an S-
video cable to Video- 7 or Video-2 at the same
time.
Do not connect the same VCR to the output
and input jacks on the TV at the same time.
To dub or edit, VCR 2 mustselect Line IN,
and the TV must select Video- 1.
* TheVideo OUTjack does not output the
PIPpicture.
** TheAudio OUTjacks can output the sound
of either the Main or PIPpicture (see
"SelectingtheAudio OUTsound" on page
50).
Connecting a camcorder
This connection allows you to watch video materials recorded on a
camcorder.
You will need:
• one pair of audio cables
• one video cable (one S-video cable for an S-VHS camcorder)
Caution:
If you have anS-VHS camcorder,usean S-
video cable between the S-videojacks on the
camcorder and T_ Do not connectboth a
regular video cableand an S-video cable at
the same time.
Video-3 (front panel)
