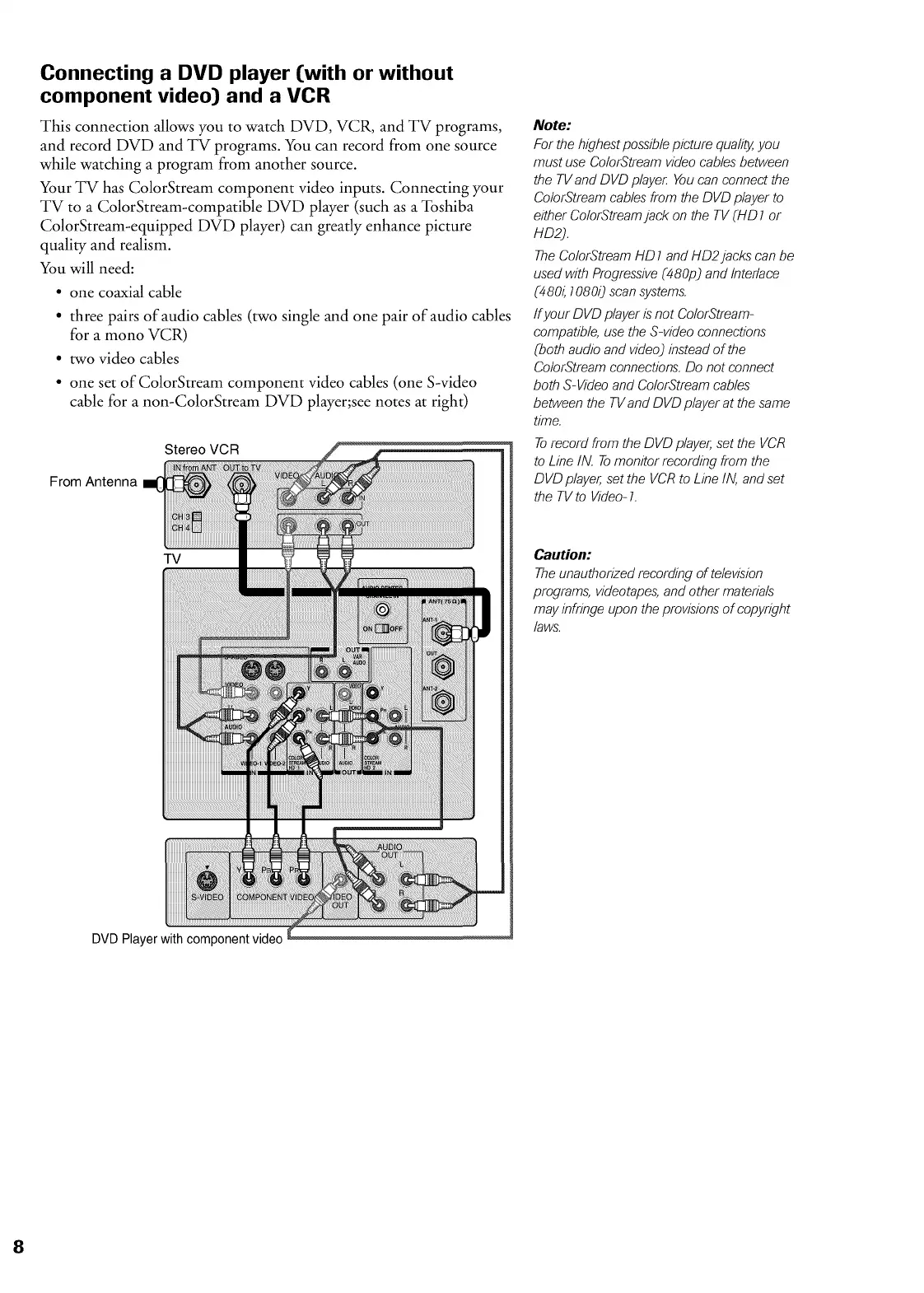

Connecting a DVD player [with or without
component video) and a VCR
This connection allows you to watch DVD, VCR, and TV programs,
and record DVD and TV programs. You can record from one source
while watching a program from another source.
Your TV has ColorStream component video inputs. Connecting your
TV to a ColorStream-compatible DVD player (such as a Toshiba
ColorStream-equipped DVD player) can greatly enhance picture
quality and realism.
You will need:
• one coaxial cable
• three pairs of audio cables (two single and one pair of audio cables
for a mono VCR)
• two video cables
• one set of ColorStream component video cables (one S-video
cable for a non-ColorStream DVD player;see notes at right)
From Antenna
Stereo VCR
TV
Note:
Forthe highestpossiblepicture qua/i_ you
must use ColorStreamvideocablesbetween
the TVand DVD playeLYoucan connect the
ColorStreamcablesfrom the DVD playerto
either ColorStreamjack on the TV(HD 7or
HD2).
TheColorStreamHD1 and HD2 jacks canbe
used with Progressive(480pj and Interlace
(480L10800 scansystems.
ffyour DVD player isnot Co/orStream-
compatible,use the S-video connections
(both audio and video)insteadof the
Co/orStreamconnections.Do not connect
both S-Video and Co/orStreamcables
between the TVand DVDplayer at the same
time.
Torecord from the DVD player,set the VCR
to Line IN. Tomonitor recording from the
DVDp/ayer,set the VCRto Line IN, and set
the TVto Video-1.
Caution:
Theunauthorized recording of television
programs, videotapes,and other materials
mayinfringe upon theprovisionsof copyright
laws.
