• A coaxial cable is the standard cable that comes in from your
antenna or cable converter box. Coaxial cables use "F"
connectors.
• Audio and video cables are usually color-coded accoMing to use:
yellow for video and red and white for audio. The red audio cable
is for the stereo right channel, and the white audio cable is for
the stereo (or mono) left channel. If you look at the rear panel of
the TV,,you will see that the terminals are color-coded in the
same maimer as the cables.
• S-video cables provide better picture performance. S-video cables
can only be used with S-video compatible components.
• ColorStream TMcables come in sets of three and provide the best
picture performance. ColorStream cables can only be used with
ColorStream compatible components.

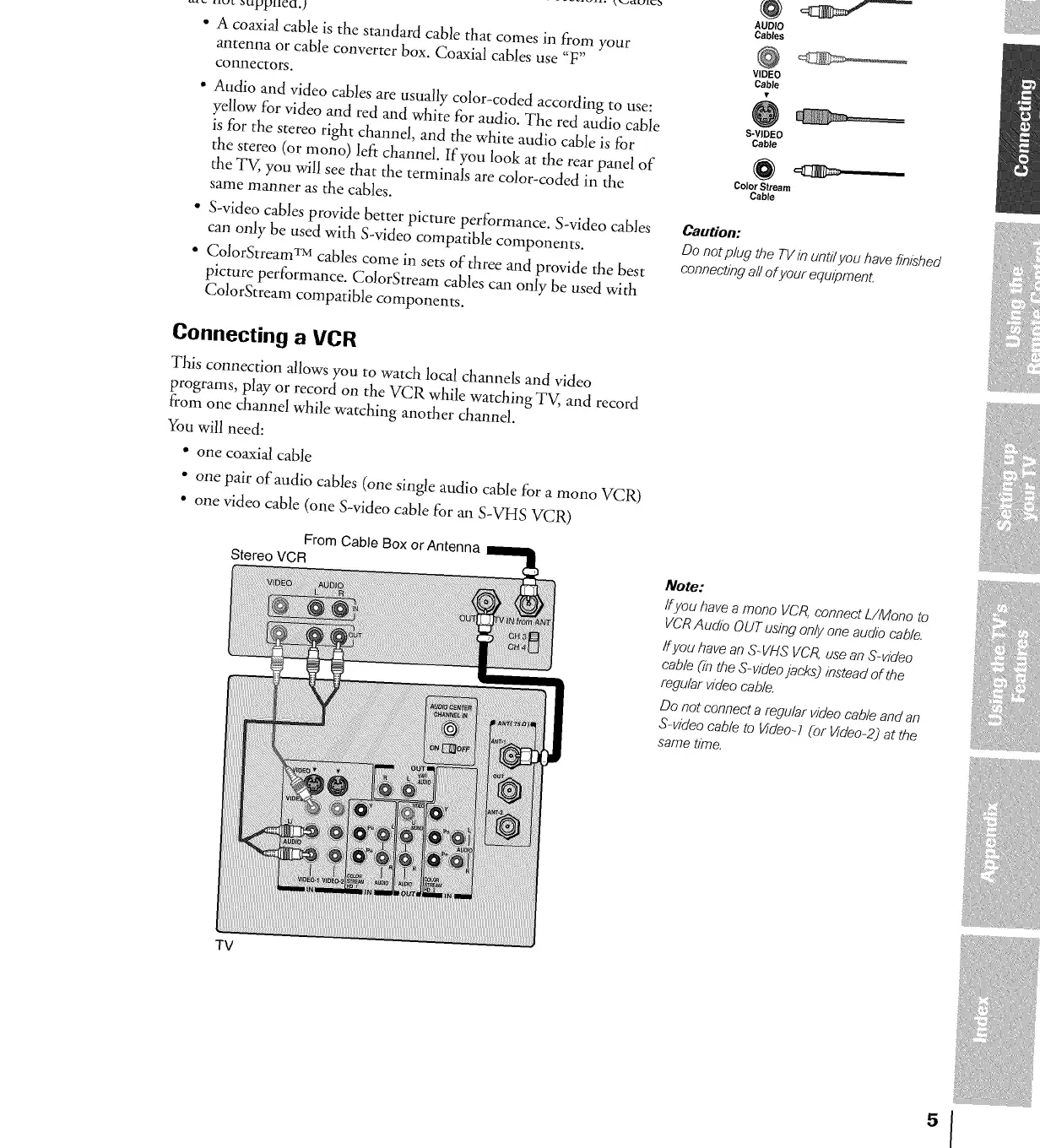

Connecting a VCR
This connection allows you to watch local channels and video
programs, play or record on the VCR while watching TV, and record
from one channel while watching another channel.
You will need:
• one coaxial cable
• one pair of audio cables (one single audio cable for a mono VCR)
• one video cable (one S-video cable for an S-VHS VCR)
From Cable Box or Antenna
Stereo VCR
VIDEO
Cable
S-VIDEO
Cable
Color Stream
Cable
Caution:
Do not plug the TVin until you havefinished
connectingall of your equipment.
Note:
tf you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
ff you have an S-VHS VCR, use an &video
cable (in the S-video jacks) instead of the
regular video cable.
Do not connect a regular video cable and an
S-video cable to Video-7 (or Video-2) at the
same time.
iiiiiz:,i,,iiii
iiiiiii!!_iiiii
iii!!;X@i{{{{_)
TV
51
