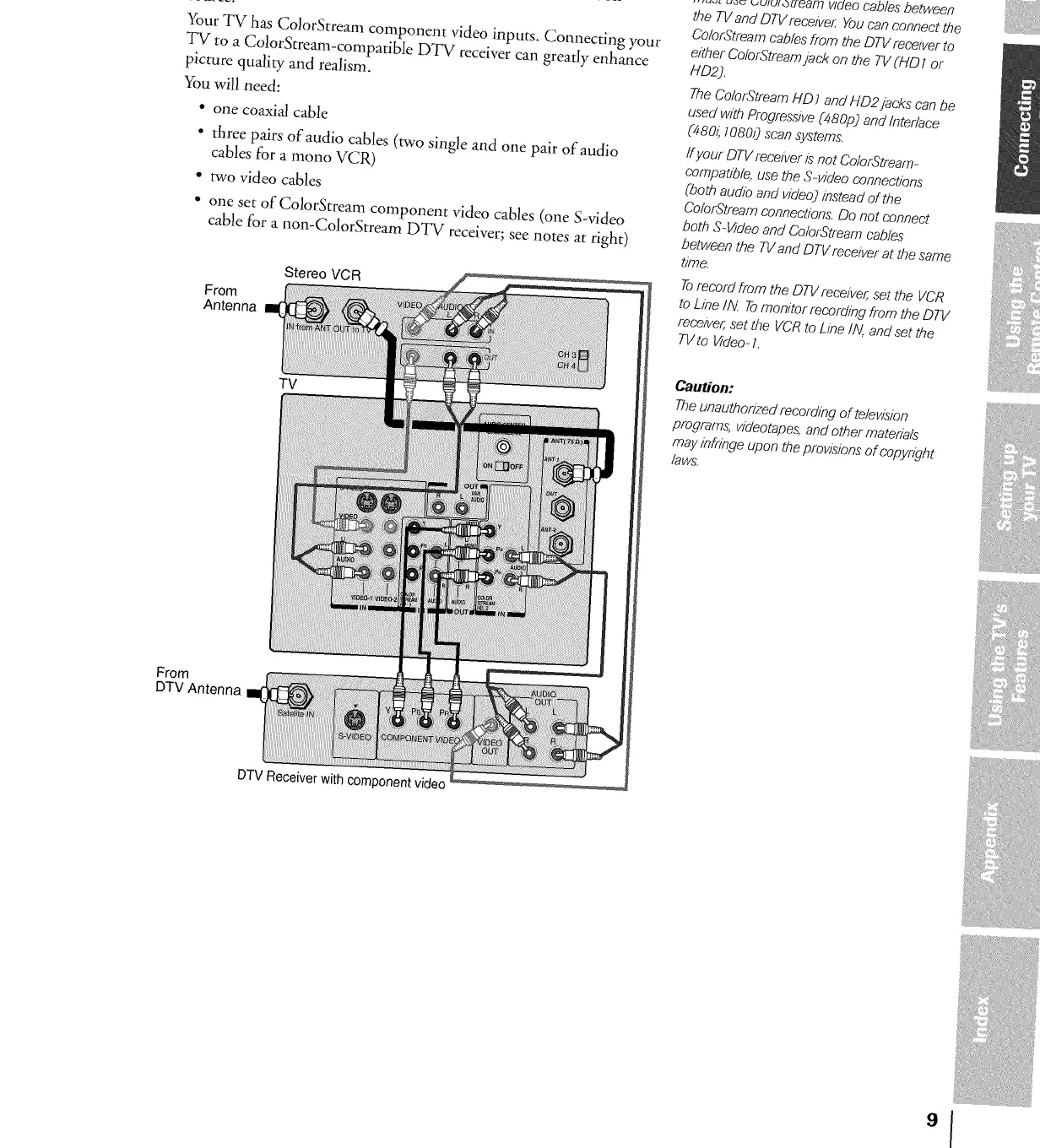

Your TV has ColorStream component video inputs, Connecting your
TV to a ColorStream-compatible DTV receiver can greatly enhance
picture quality and realism.
You will need:
• one coaxial cable
• three pairs of audio cables (two single and one pair of audio
cables for a mono VCR)
• two video cables
• one set of ColorStream component video cables (one S-video
cable for a non-ColorStream DTV receiver; see notes at right)
Stereo VCR
From
Antenna
From
DTV Antenna
Uolor,_'tream cables trom the 12/V receiver to
either Co/orStream jack on the TV (HD f or
HD2],
The Co!oiStream HDJ and HD2 jacks can be
used with Progressive (0SOp) and Interlace
(4801110800 scan systems.
ff your DTV receiver is not ColorStream-
compatible, use the S-video connections
(both audio and videoJ instead of the
Co/orStream connections. Do not connect
both S-Video and ColorStream cables
between the 7q/ and DTV receiver at the same
time.
Torecord from the DTV receiver, set the VCR
to Line IN. 70 monitor recording from the DTV
receiver, set the VCR to Line IN, and set the
TV to Video- 7.
Caution:
Theunauthorized recording of television
programs, videotapes,,and other materials
may infringe upon theprovisionsof copyright
laws.
