29
4400 Series Installation and Operation Manual – 64527-008

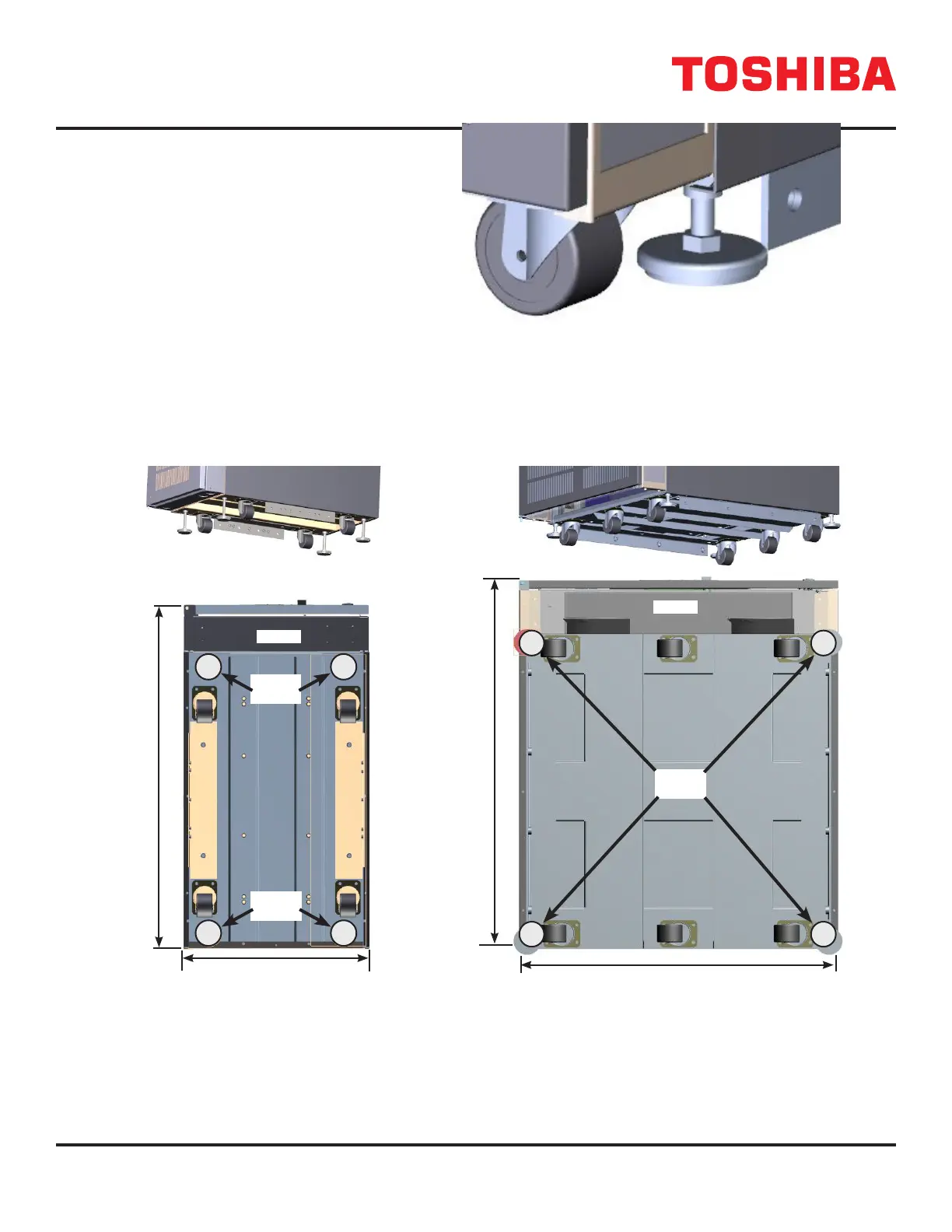

8.4 15-50kVA Anchorage - Standard
Place the UPS in the nal installation location.
Extend the threaded leveling feet until all weight has
been removed from the casters and the UPS is level.
.
FIGURE 8.4: FOOTPRINT FOR 15-30 KVA
USING LOAD LEVELING FEET
37.2 in (945 mm)
20.12 in (511 mm)
Front
Leveling
Feet
Leveling
Feet
32.1 in (816 mm)
37.1 in (943 mm)
Front
Leveling
Feet
FIGURE 8.5: FOOTPRINT FOR 50 KVA USING
LOAD LEVELING FEET
DETAIL - Load Leveling Foot
