4400 Series Installation and Operation Manual – 64527-008
8.5 80-100kVA Anchorage - Standard
Install the anchor bolts per Section 8.3 in the pattern shown in Figure 8.6.
Secure the UPS Angle Bracket skids to the oor with the anchor bolts..
Back
Front
4 x 0.703 in Dia. (17.9 mm)
27.74 in (704.5 mm)
27.1 in (689 mm)
80kVA ANCHORAGE SPACING

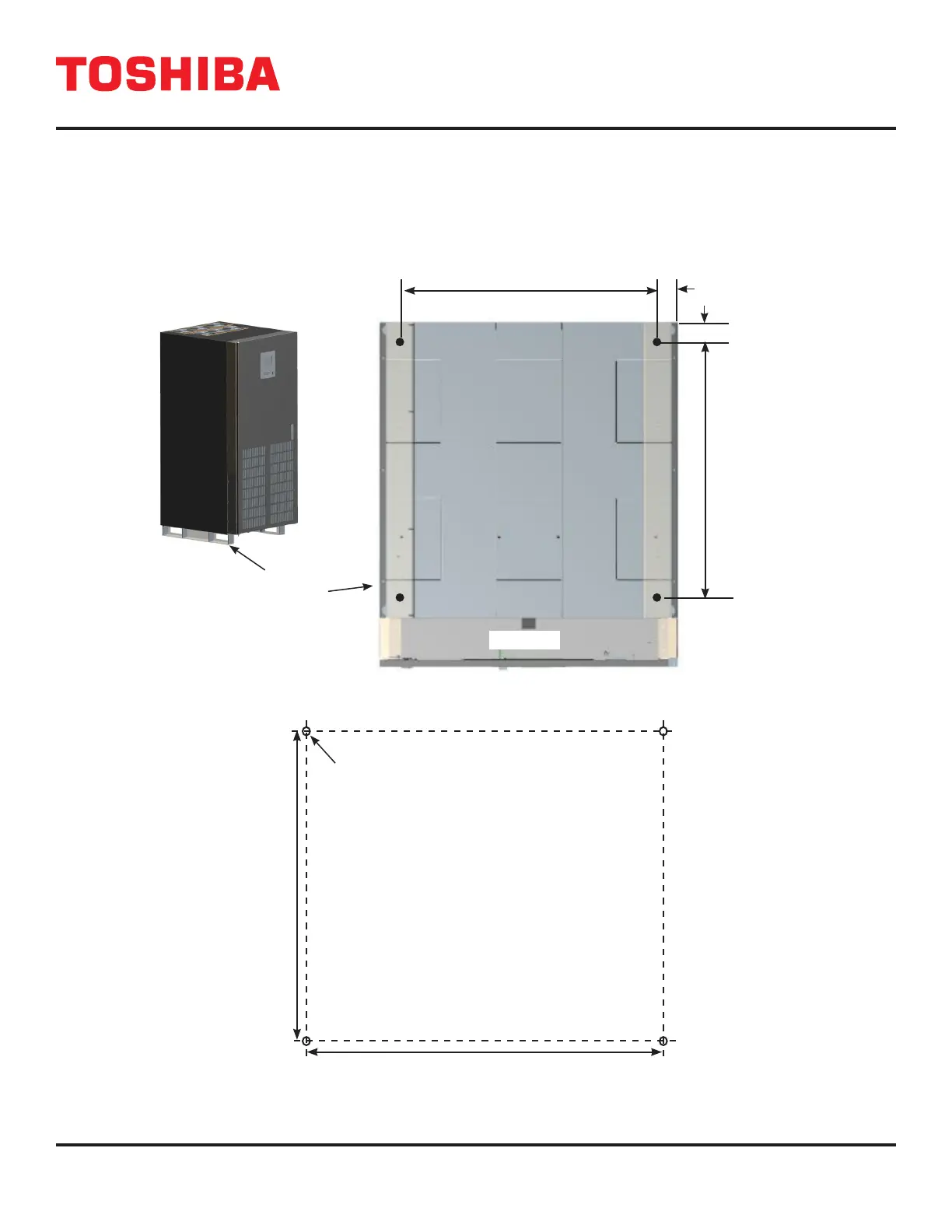

FIGURE 8.6: ANCHORAGE HOLE LOCATIONS – 80KVA UNITS (STANDARD)
Angle Bracket
Skids
80 kVA FOOTPRINT - BOTTOM VIEW
2.0 in (51 mm)
2.5 in (64 mm)
FRONT
27.74 in (704 mm)
27.1 in (689 mm)
