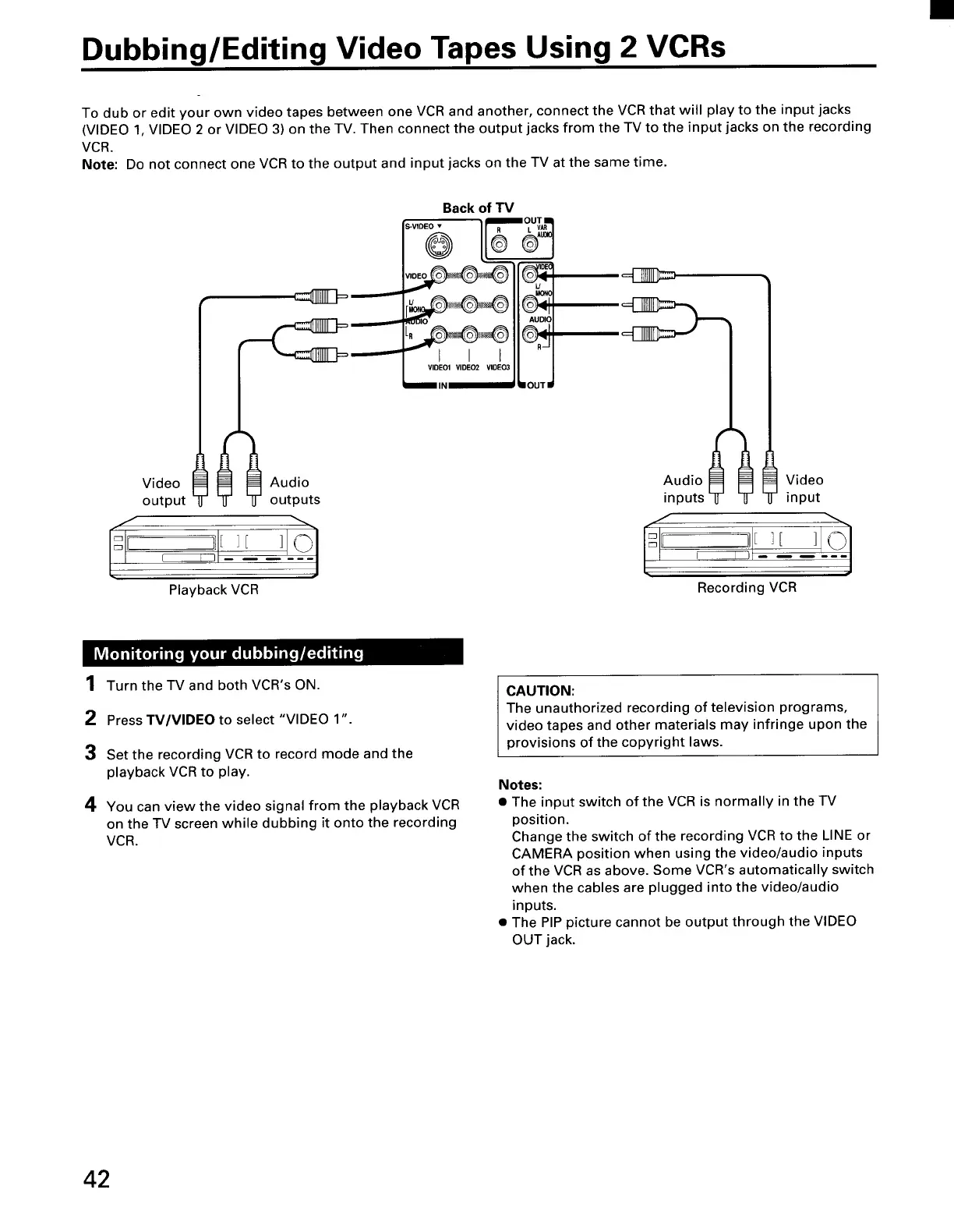

Dubbing/Editing Video Tapes Using 2 VCRs
To dub or edit your own video tapes between one VCR and another, connect the VCR that will play to the input jacks
(VIDEO 1, VIDEO 2 or VIDEO 3) on the TV. Then connect the output jacks from the TV to the input jacks on the recording
VCR.
Note: Do not connect one VCR to the output and input jacks on the TV at the same time.
Video
output
(__
raiN
'[] Audio
-[]- outputs
Back of TV
[[6oud,t
u
VIDEO1 VIDE02 VIDEO3
|OUTII
Playback VCR
1 Turn the TV and both VCR's ON.
Audio Video
inputs input
[[ ][ ]
Recording VCR
2 Press TV/VIDEO to select "VIDEO 1"
3 Set the recording VCR to record mode and the
playback VCR to play.
4 You can view the video signal from the playback VCR
on the TV screen while dubbing it onto the recording
VCR.
CAUTION:
The unauthorized recording of television programs,
video tapes and other materials may infringe upon the
provisions of the copyright laws.
Notes:
• The input switch of the VCR is normally in the TV
position.
Change the switch of the recording VCR to the LINE or
CAMERA position when using the video/audio inputs
of the VCR as above. Some VCR's automatically switch
when the cables are plugged into the video/audio
inputs.
• The PIP picture cannot be output through the VIDEO
OUT jack.
42
