e-STUDIO350/352/353/450/452/453
CONTROL PANEL
5.5 Disassembly and Replacement
Note: When taking off the control panel, check
the position of the stopper; if the stopper
is at the position “b”, remove the stopper
or move it to the position “a”.

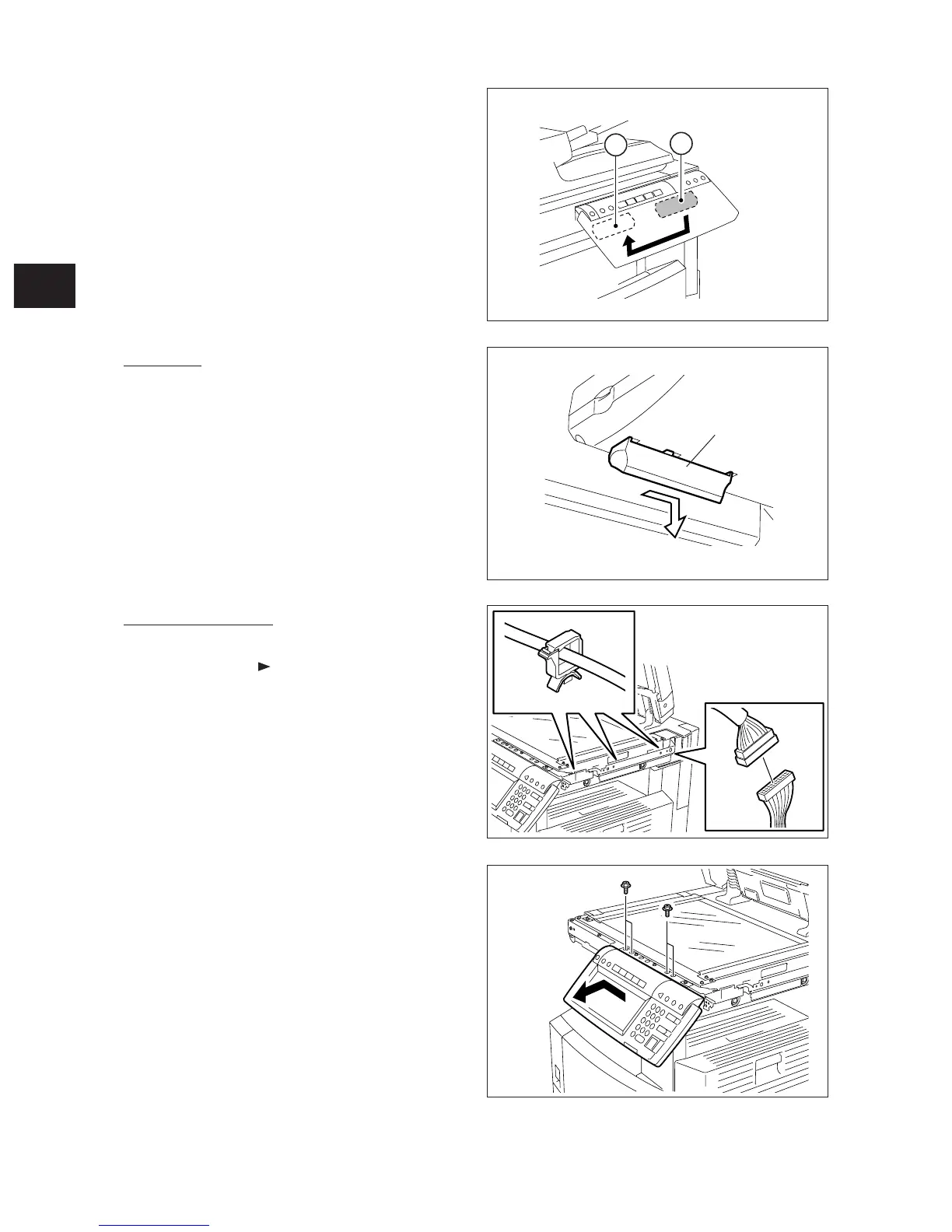

Fig. 5-501
[A] Stopper
(1) Slide the stopper and pull it out.
Fig. 5-502
Stopper
[B] Control panel unit
(1) Take off the right upper cover and the front
upper cover. ( Chapter 2.5.1 [I] [J])
(2) Disconnect 1 connector.
(3) Release the harness from 3 harness clamps.
07/06
Fig. 5-503
(4) Lower the control panel and remove 4
screws.
(5) Take off the control panel unit while sliding
it.
Fig. 5-504
