14 - 11
14
e-STUDIO350/352/353/450/452/453
AUTOMATIC DUPLEXING UNIT
© 2003 - 2008 TOSHIBA TEC CORPORATION All rights reserved

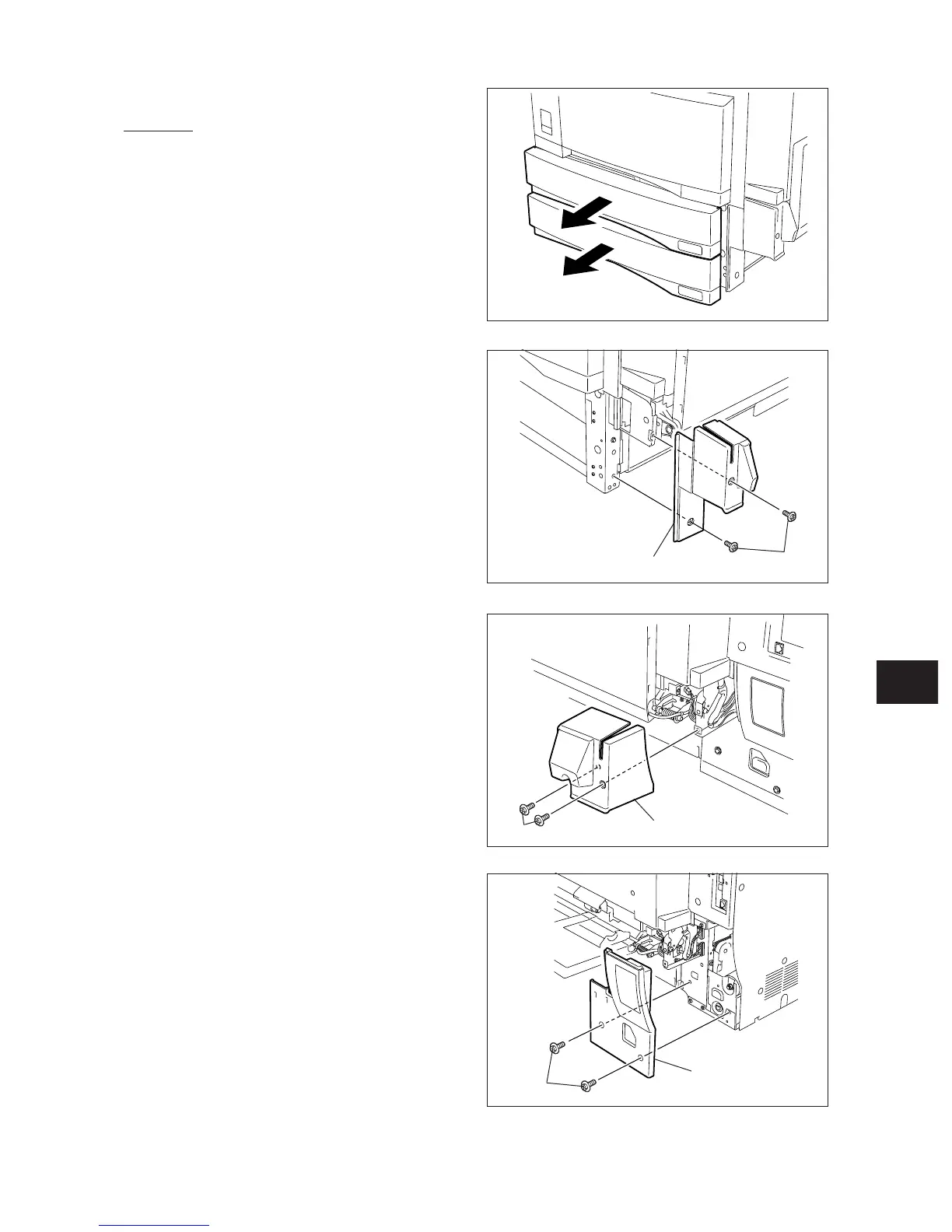

14.5 Disassembly and Replacement
[A] ADU
(1) Take off the upper and lower drawers.
Fig. 14-503
(3) Remove 2 screws and take off the right rear
hinge cover.
Fig. 14-502
(2) Remove 2 screws and take off the right front
hinge cover.
Fig. 14-504
(4) Remove 2 screws and take off the right
lower cover.
Right front hinge cover
Screw
Screw
Right rear hinge cover
Screw
Right lower cover
Fig. 14-501
