Toshiba e-STUDIO453 User Manual

14 - 9
14
e-STUDIO350/352/353/450/452/453
AUTOMATIC DUPLEXING UNIT
© 2003 - 2008 TOSHIBA TEC CORPORATION All rights reserved

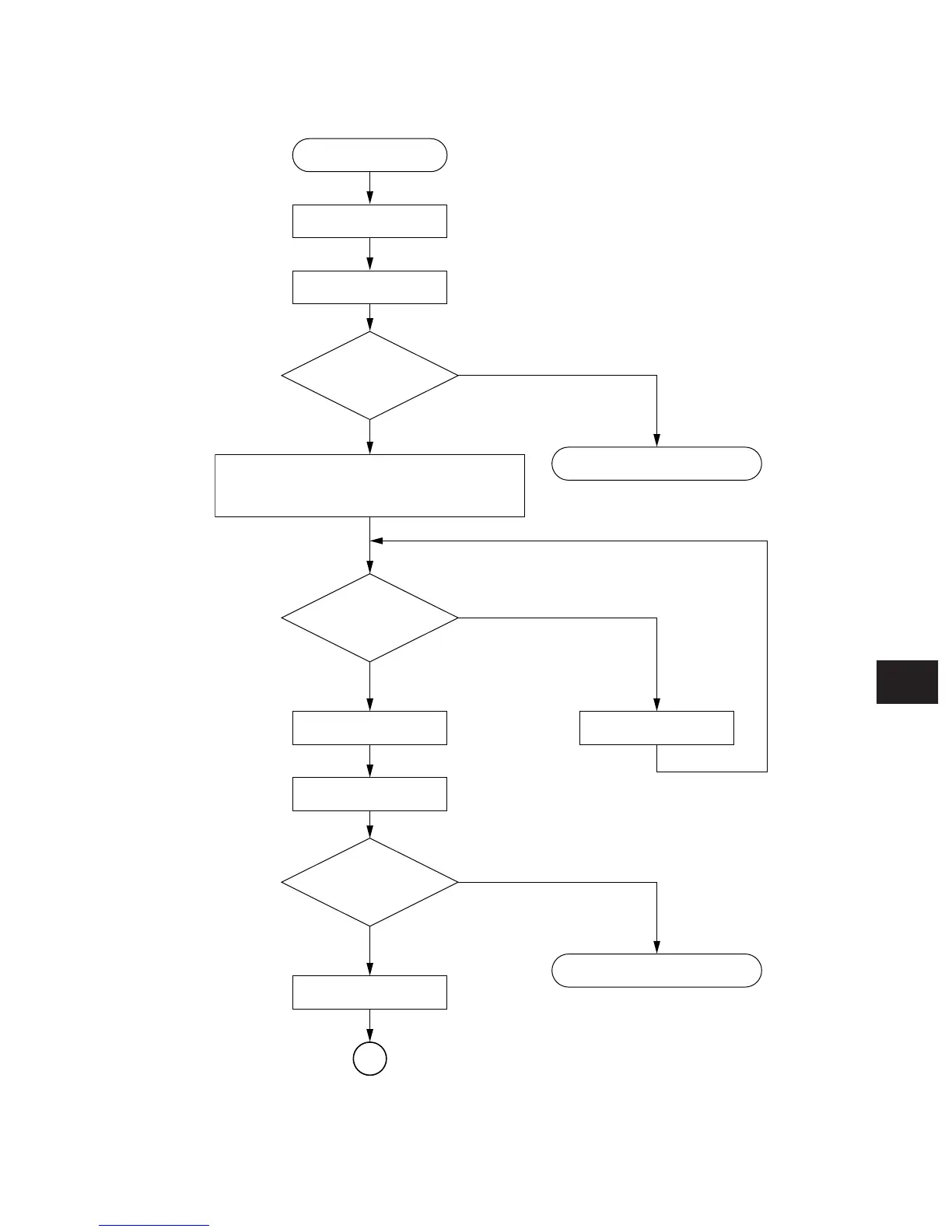

14.4 Flow Chart
Fig. 14-401
Yes
Yes
A
ADU transport jam
(
E520
)
ADU clutch ON
No
No
Yes
No
ADU transport jam
(
E510
)
ADU entrance
sensor ON?
ADU motor ON
Specified time has passed
Specified time has passed
Exit motor reverse
rotation ON
Specified time has passed
(
Paper is transported to the first
stopping position in ADU
)
Trailing edge of
first paper turned
ON the ADU exit
sensor?
ADU exit sensor
check the arrival
ADU motor stopped
ADU motor ON
