12. DEVELOPMENT SYSTEM
12.1 Conguration
Development system consists of the following unit, components and control circuits.
Toner cartridge drive unit / Toner cartridge detection switch
Temperature/humidity sensor ( chapter 11)
• Developer unit Developer material
Mixers -1 and -2
Developer sleeve (magnetic roller)
Doctor blade
Auto-toner sensor
Drum thermistor ( chapter 11)
Drum
Doctor blade
Mixer-2
Developer sleeve
Mixer-1
Auto-toner sensor

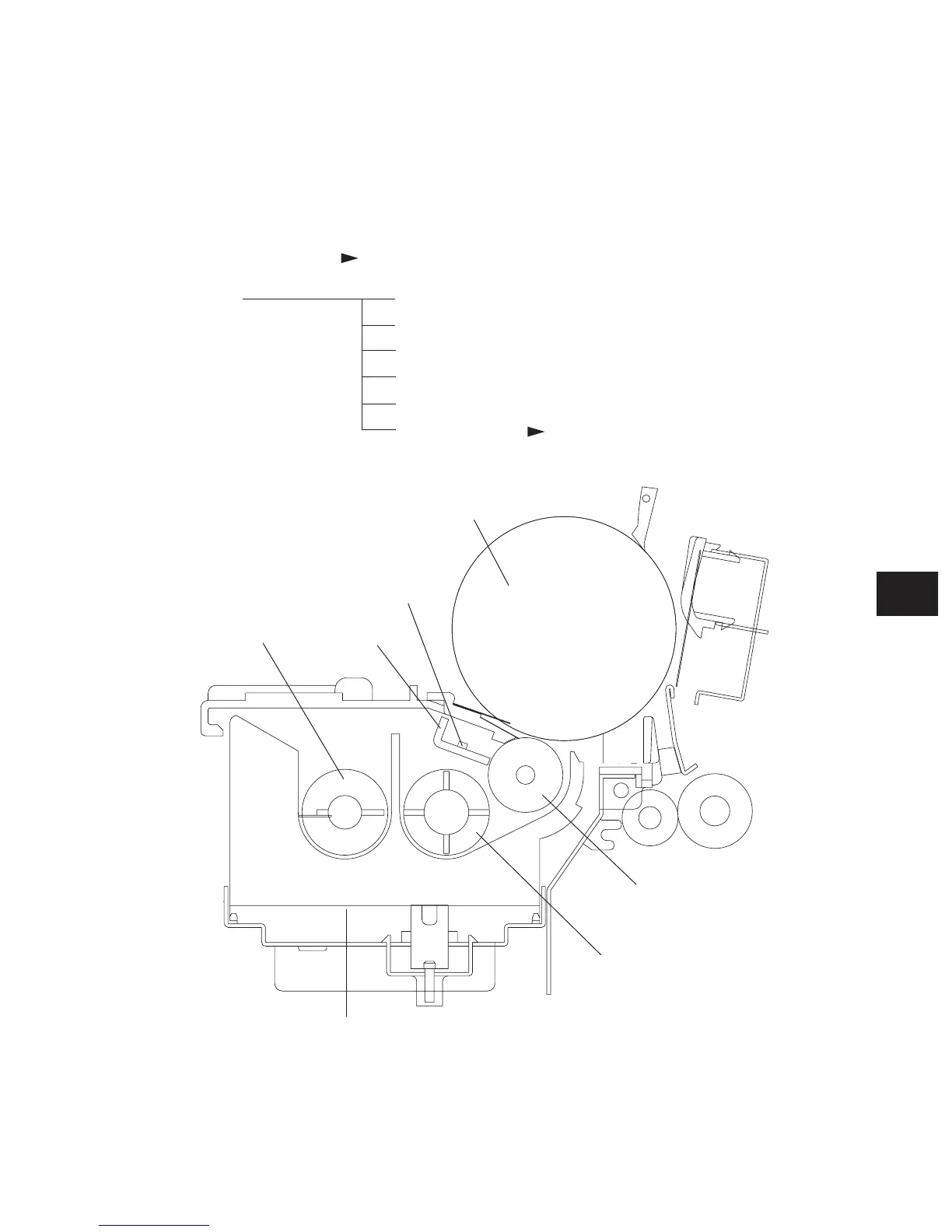

[Sectional view of developer unit]
Drum thermistor
Fig. 12-101
