14 - 8
14
e-STUDIO350/352/353/450/452/453
AUTOMATIC DUPLEXING UNIT
© 2003 - 2008 TOSHIBA TEC CORPORATION All rights reserved
14.3 Drive of ADU

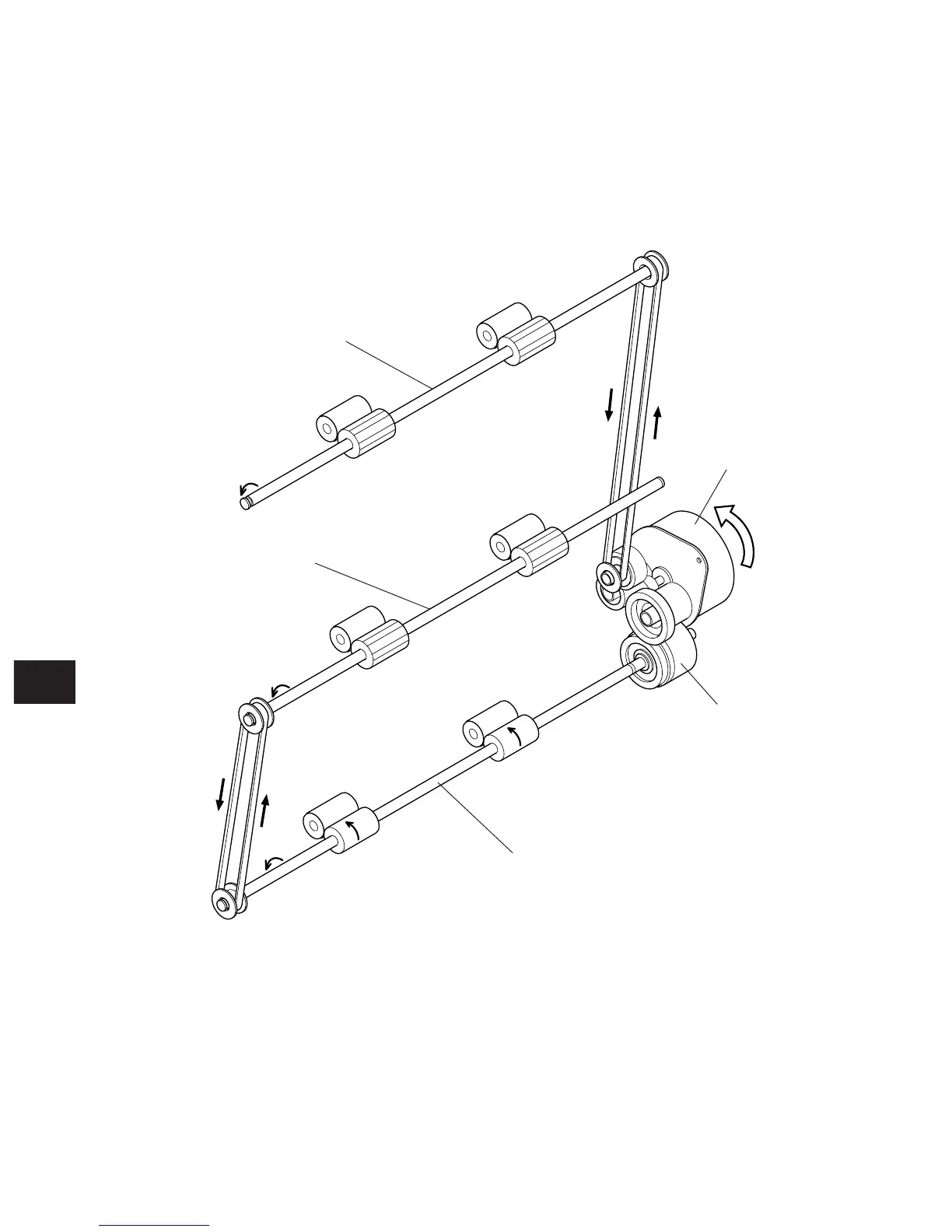

When the ADU motor rotates to the direction A, the upper transport roller is rotated driven by the gears
and belt. The ADU clutch is then turned ON and the middle transport roller and lower transport roller
are rotated.
Upper transport roller
Middle transport roller
ADU motor
ADU clutch
Lower transport roller
A
Fig. 14-301
