12 - 8
12
e-STUDIO350/352/353/450/452/453
DEVELOPMENT SYSTEM
© 2003 - 2008 TOSHIBA TEC CORPORATION All rights reserved
Fig. 12-501
Fig. 12-502
Fig. 12-503
Fig. 12-504

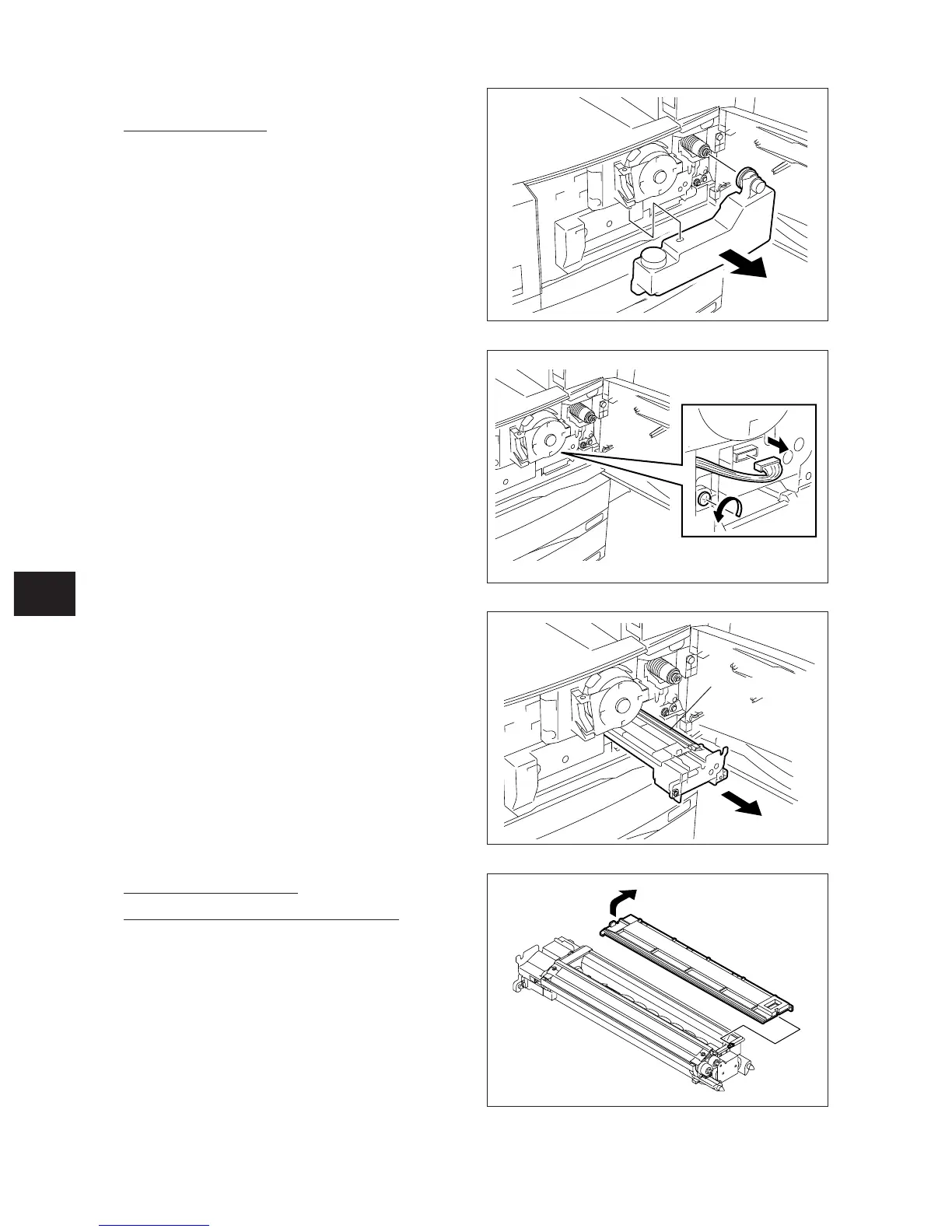

12.5 Disassembly and Replacement
[A] Developer unit
(1) Open the front cover and remove the toner
bag.
(2) Disconnect 1 connector and loosen 1 screw.
(3) Take out the developer unit.
Note:
Do not touch the developer sleeve on the top of
the developer unit.
[B] Developer material
(B-1) Discharge of developer material
(1) Slide the upper cover of developer unit to
the direction of the arrow and take off the
cover by releasing the latches.
Developer sleeve
To Next Page
