E6582051
- 10 -
2. Hardware Setup
When using the PNE001Z with VF-S15, sold separately VF-S15 option adapter (SBP009Z) is required.
2.1.
Mounting and removing
Warning
Mandatory
action
▼ The mounting/removing of option must be performed without supplying power(Turn off all
input power, wait at least 15 minutes, confirm that the charge lamp of inverter is no
longer lit). The inverter and option can become damaged.
▼ Do not use tool for the mounting/removing of option . The inverter and option can become
damaged.

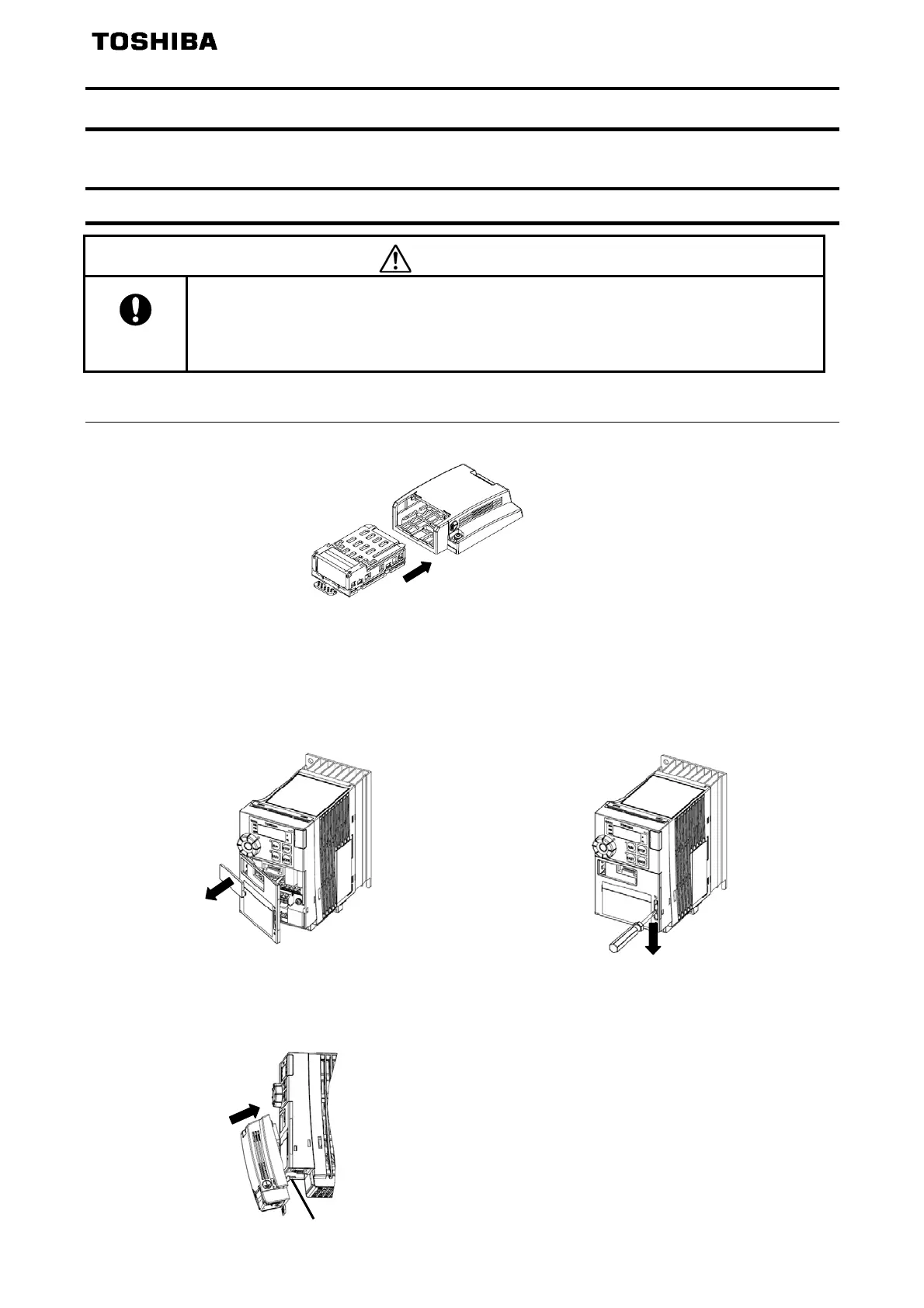

2.1.1. Mounting of option
① Insert option into option adapter.
*Note: Mount option adapter to inverter after option insertion.
Insert the option straightly and slowly along the guide inside option adapter. Follow this instruction,
the connecter can become damaged.
② Remove the option connector ➂ Lock the control terminal cover.
cover on control terminal cover.
④ Hang the hook of option adapter on the control terminal cover.
Insert the connector in the direction of arrow
SBP009Z
PNE001Z
Hook
To Next Page
