E6582051

- 12 -

2.2.

Wiring

PNE001Z is equipped with dual shielded RJ45 connectors. When you use PNE001Z with VF-S15, the

shielding of RJ45 connectors are connected to the grounding terminal of option adapter.

Cable specifications

• Minimum Cat 5e,

• Use equipotential bonding conductors,

• Connector RJ45, no crossover cable

• Shield: both ends grounded

• Twisted pair cable

• Maximum cable length = 100 m (328 ft)

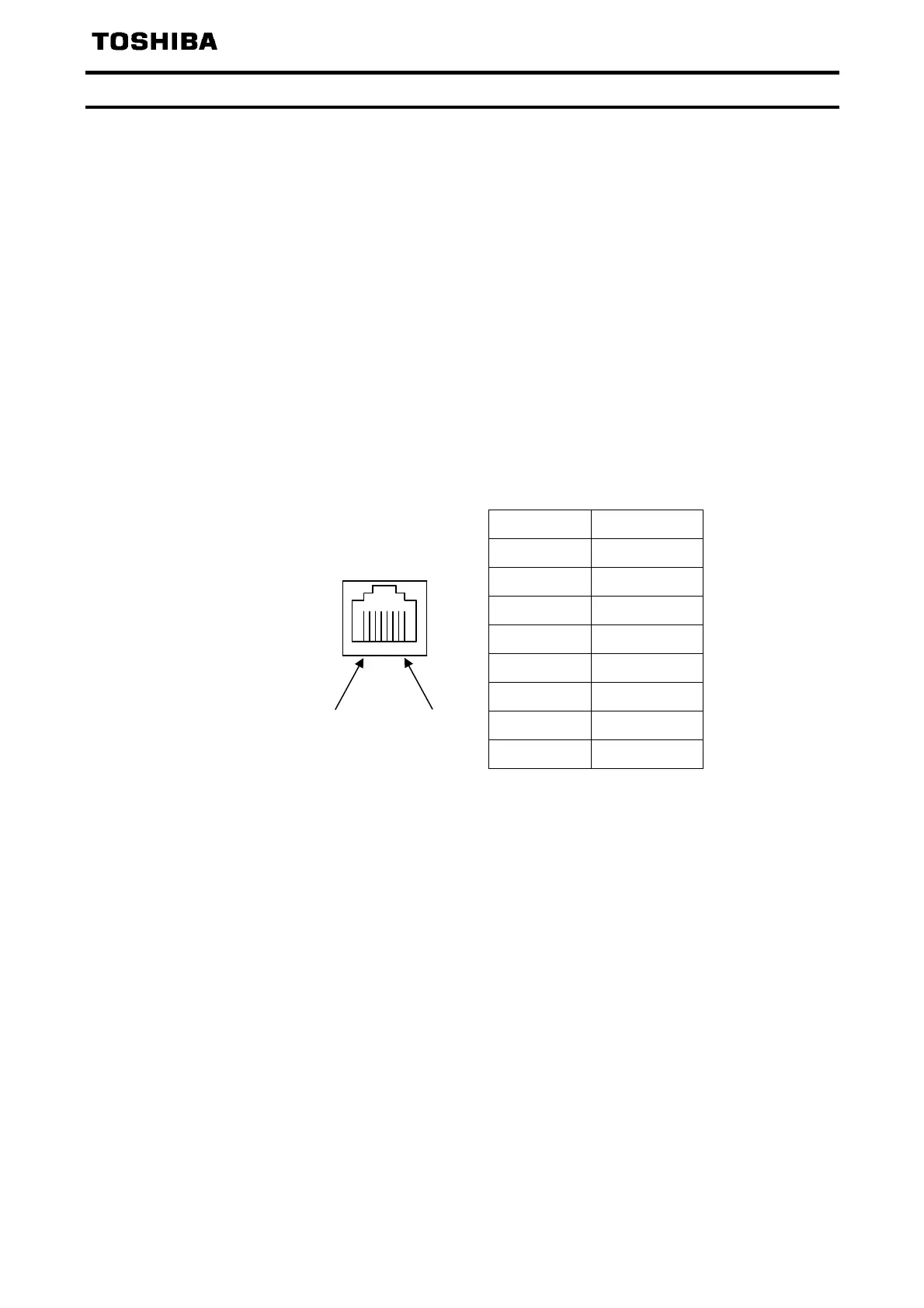

The following table describes the pin layout of RJ45 connecter.

Pin Signal

1 TD+

2 TD-

3 RD+

4 -

5 -

6 RD-

7 -

8 -

* Fix a cable so that a communication connector may be not taken the weight of wire.

8………………1

Port L and Port R
