4 Replacement Procedures 4.24 Fluorescent lamp
4-78 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
4.24.3 Replacing the 15.4-inch 1-lamp (W-XGA) Chemei fluorescent lamp
Removing the 15.4-inch 1-lamp (W-XGA) Chemei fluorescent lamp
To remove the 15.4-inch W-XGA Chemei Fluorescent Lamp, follow the steps below and
refer to Figures 4-62 to 4-66.
The fluorescent lamp is assembled in the backlight unit. To replace the fluorescent lamp,
replace the backlight unit.
1. Peel off tapes.

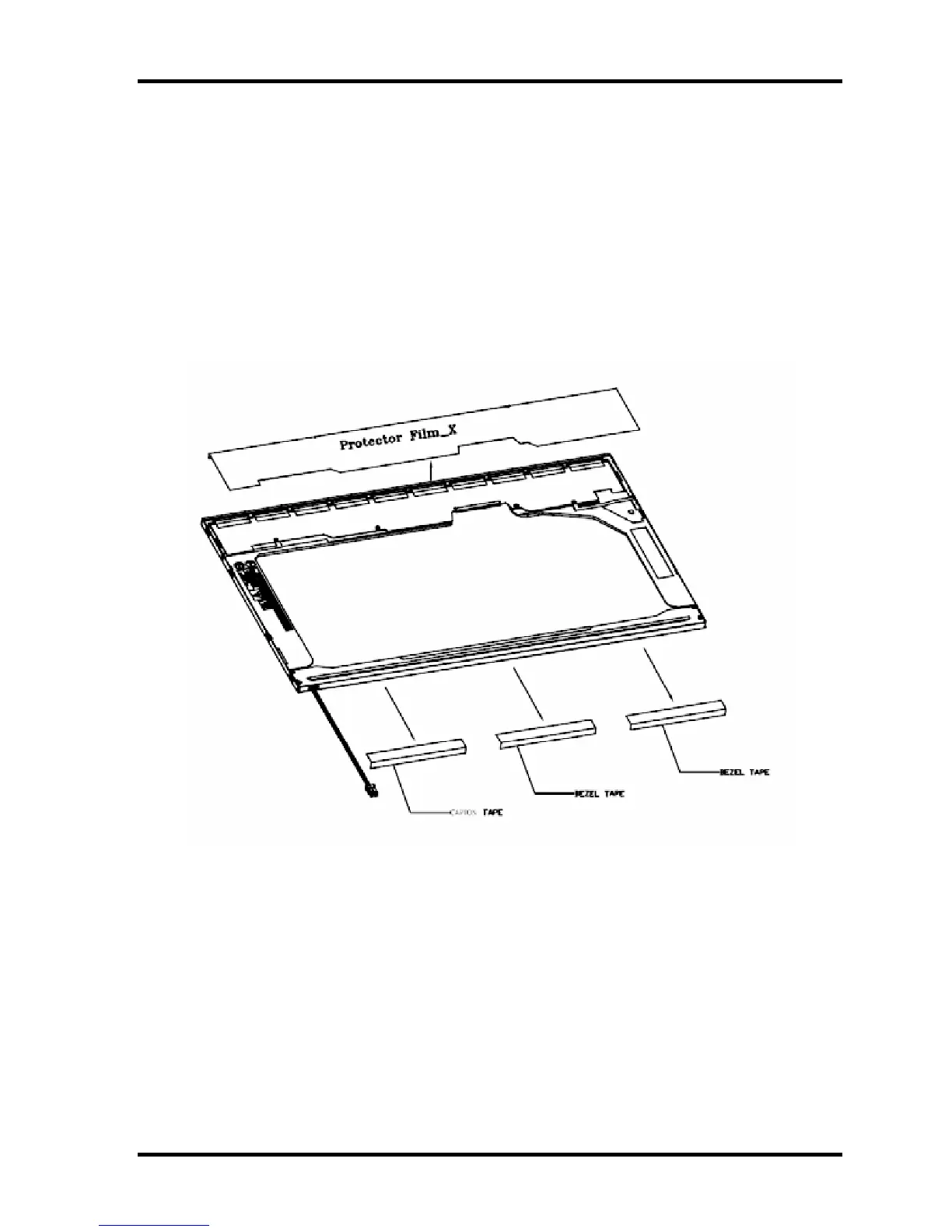

Figure 4-62 Replacing Chemei fluorescent lamp (W-XGA 1-lamp) (1)
To Next Page
