4 Replacement Procedures 4.22 Hinge
4-64 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
4.22 Hinge
4.22.1 Hinge on the middle frame
Removing the Hinge on the middle frame
The following describes the procedure for removing hinge on the middle frame (See Figure
4-49).
1. Remove the following screws and the hinge (right in the figure) on the middle frame.
? M2.5?6S TAPPING x2
2. Turn up the insulator, peel off the aluminum tape and remove the following screws
and the hinge (left in the figure) on the middle frame.
? M2.5?6S TAPPING x2

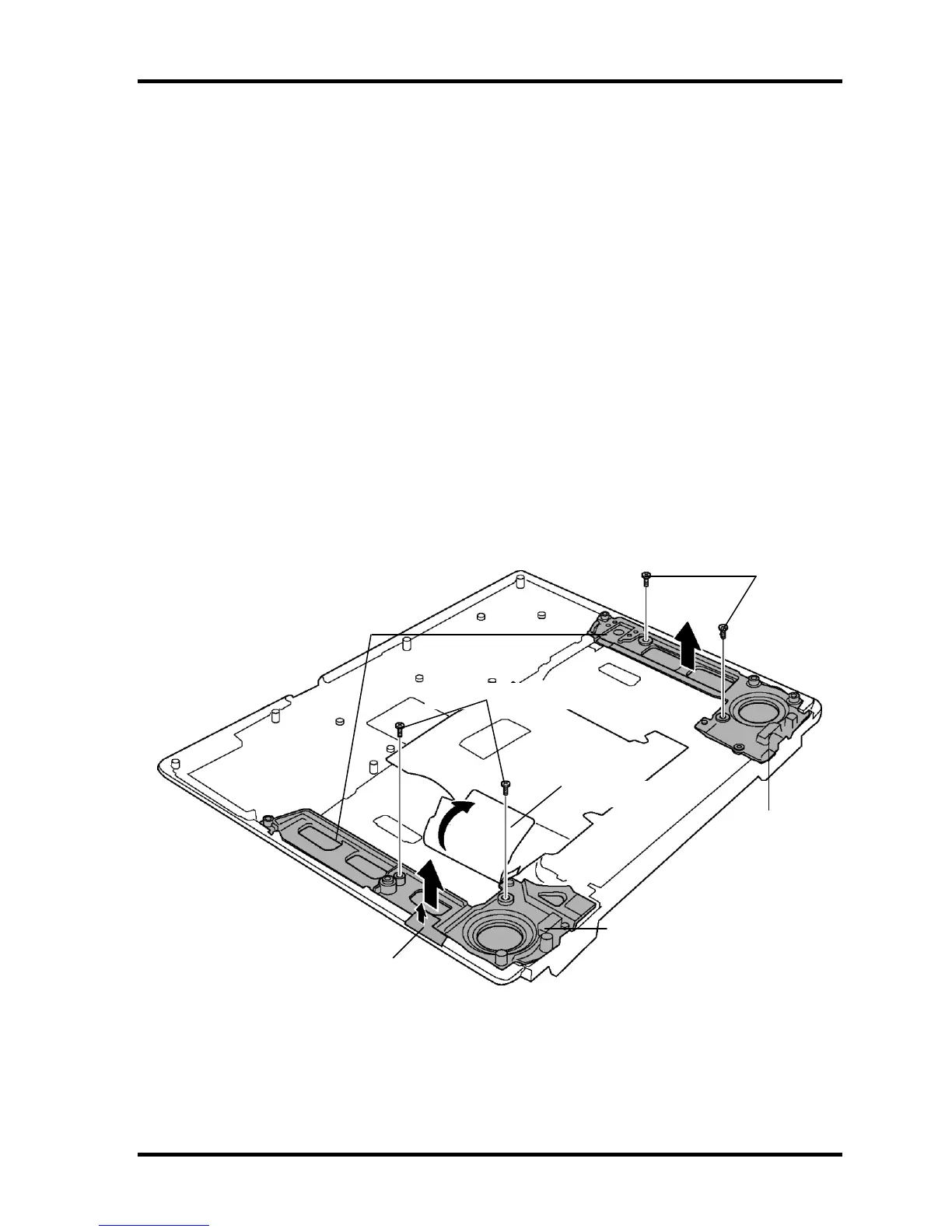

Figure 4-49 Removing the hinges on the middle frame
Insulator
Hinge
M2.5x6S TAPPING
M2.5x6S TAPPING
Right hinge
Left hinge
Aluminum tape
