4.3.1.1 System Mode
Set the system mode of the Router to the NAT mode.
Choose the menu Network→System Mode to load the following page. Select the NAT mode and the
<Save> button to apply.

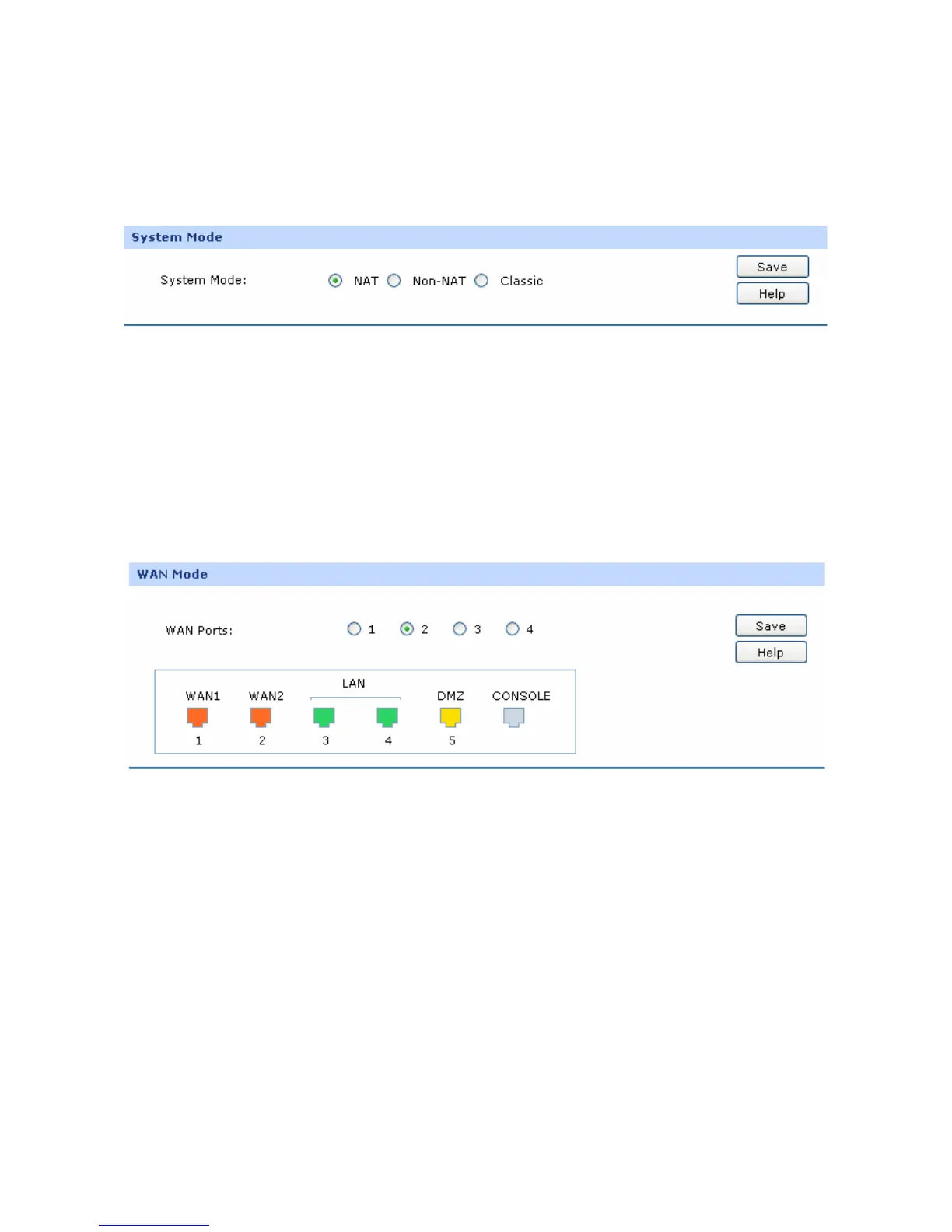

Figure 4-1 System Mode
4.3.1.2 WAN Mode
Set the Router to work in the mode of dual WAN ports.
Choose the menu Network→WAN→WAN Mode to load the following page. Select two WAN ports for
the Router and click the <Save> button to apply. Then the port 1 and port 2 will be set to the WAN1
and WAN2, which can be illustrated on the following port sketch.
Figure 4-2 WAN Mode
4.3.1.3 Internet Connection
Configure the Static IP connection type for the WAN1 and WAN2 ports of the Router.
Choose the menu Network→WAN→WAN1 to load the following page. Select the Static IP connection
type and enter the IP address, Subnet Mask and Default Gateway provided by your ISP. Set both
the Upstream Bandwidth and the Downstream Bandwidth to 100000Kbps.The
Upstream/Downstream Bandwidth of WAN port you set must not be more than the bandwidth provided
by ISP. Otherwise the Traffic Control will be invalid. Then click the <Save> button to apply. The
configuration for the WAN2 port is the same as the WAN1.
