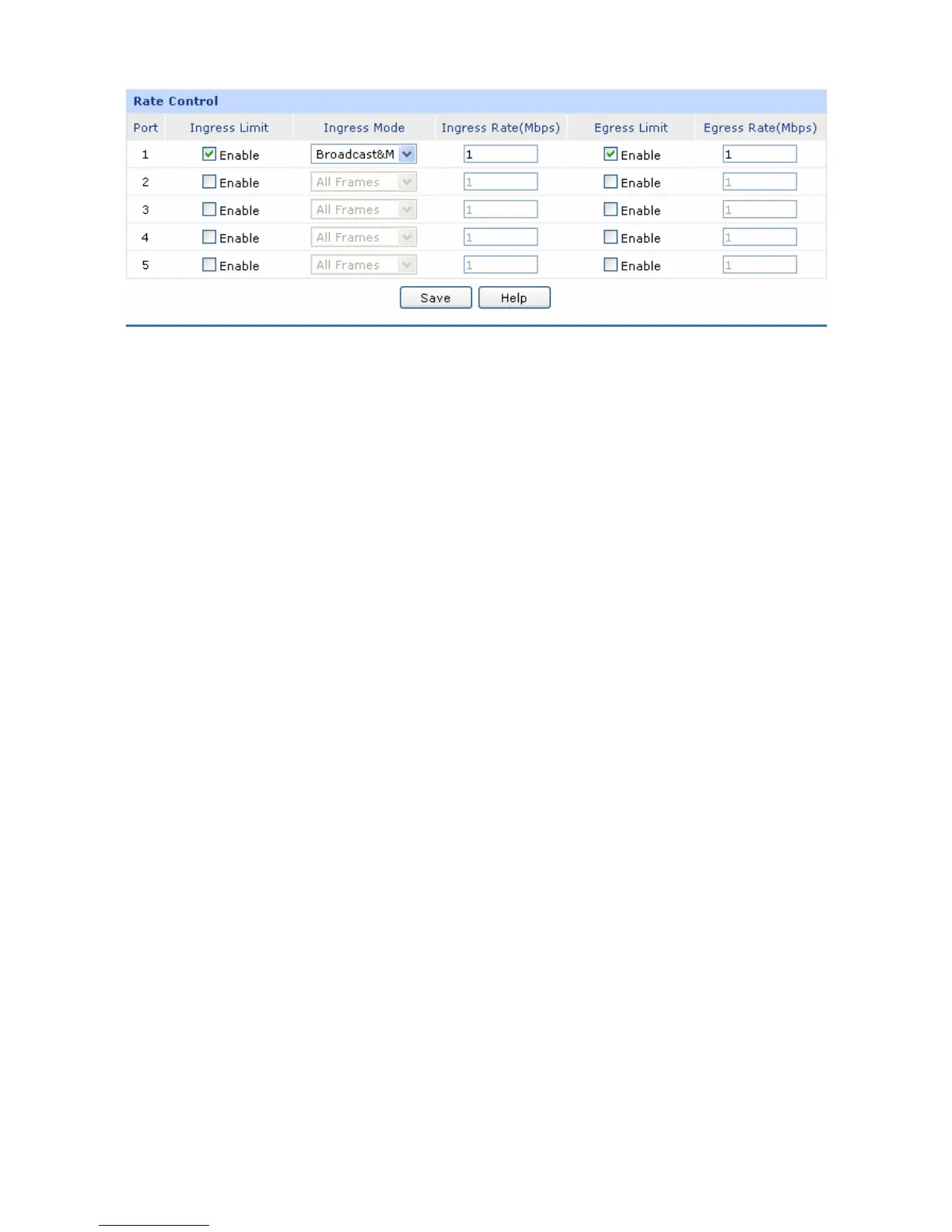

Figure 3-22 Rate Control
The following items are displayed on this screen:
¾ Rate Control
Port:
Displays the port number.
Ingress Limit:
Specify whether to enable the Ingress Limit feature.
Ingress Mode:
Select the Ingress Mode for each port. Options include:
z All Frames: Select this option to limit all the frames.
z Broadcast&Multicast: Select this option to limit
broadcast frame and multicast frame.
z Broadcast: Select this option to limit the broadcast
frame
Ingress Rate:
Specify the limit rate for the ingress packets.
Egress Limit:
Specify whether to enable Egress Limit feature.
Egress Rate:
Specify the limit rate for the egress packets.
The first entry in Figure 3-22 indicates: The Ingress and Egress Limits are enabled for port 1. The
Ingress mode is Flood while the Ingress and Egress Rates are 1Mbps. That is, the receiving rate for
the ingress packets of Flood mode will not exceed 1Mbps, and the transmitting rate for all the egress
packets will not exceed 1Mbps.
3.1.7.4 Port Config
On this page, you can configure the basic parameters for the ports.
Choose the menu Network→Switch→Port Config to load the following page.
