107
Maintenance and Adjustment
Turn the vertical adjustment screw clockwise
to raise the beam or anti-clockwise to lower
the beam.
Switch the headlights off when the beam
setting is satisfactory.
Refit the cover panel and windscreen.
Dipped Headlight Vertical
Adjustment
The dipped headlight vertical adjustment
screws are accessible without removing any
panels. They can be reached from below the
lights on the left or right hand side. Turn the
handlebars for ease of access.
Switch the headlight beam on.
Turn the vertical adjustment screws
anti-clockwise to raise the beams or clockwise
to lower the beams.
Switch the headlights off when the beam
settings are satisfactory.
Dipped Headlight Horizontal
Adjustment

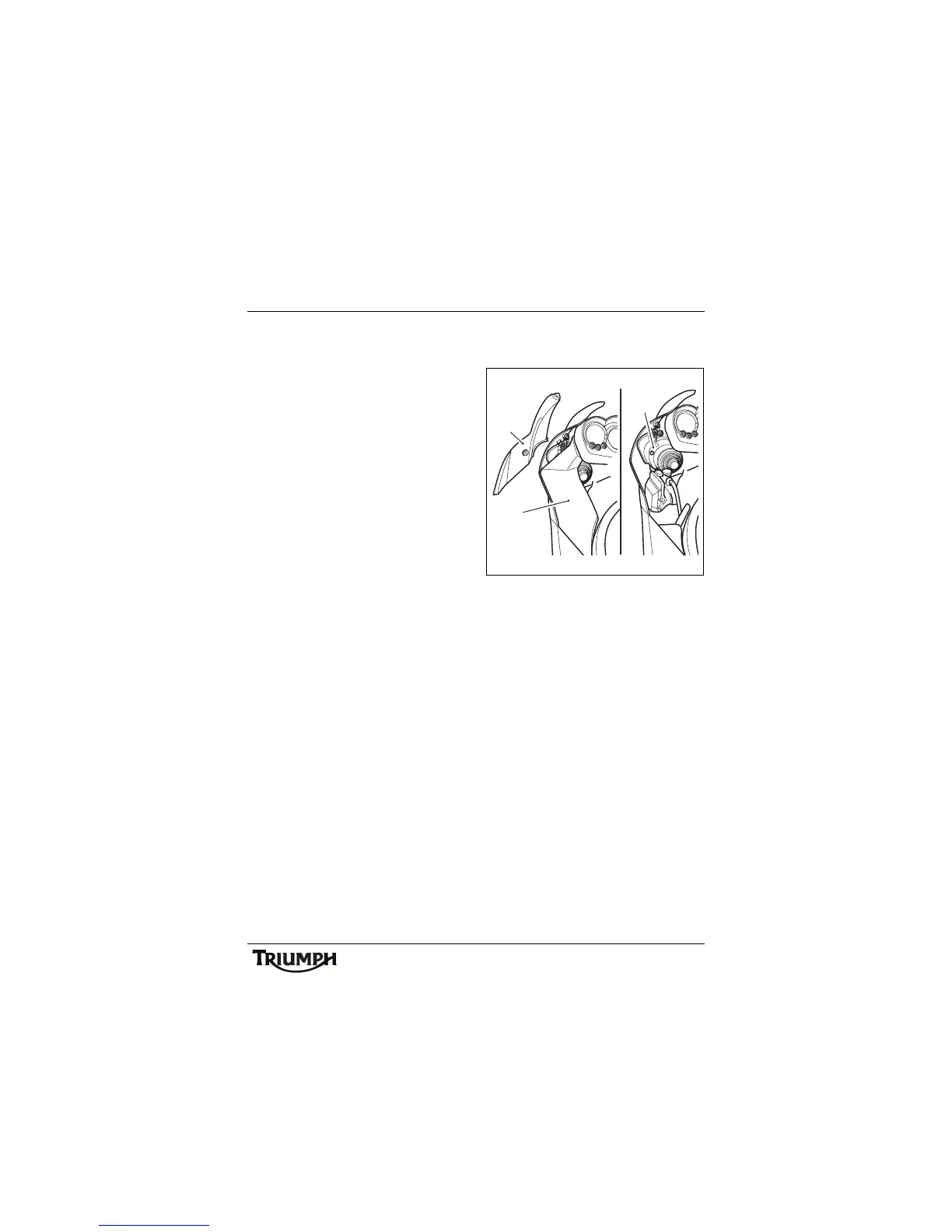

1. Left hand filler panel
2. Coolant expansion tank cover
3. Left hand headlight adjustment screw
Remove the left and right hand filler panels.
Remove the coolant expansion tank and
stowage/fuse box cover panels. It is not
necessary to remove the stowage box liner or
the fuse box.
Switch the headlight dipped beam on.
The adjustment screws are now accessible.
On the right hand headlight, turn the
horizontal adjustment screw clockwise to
move the beam to the right, or anti-clockwise
to move the beam to the left.
On the left hand headlight, turn the
horizontal adjustment screw anti-clockwise to
move the beam to the right, or clockwise to
move the beam to the left.
Switch the headlights off when the beam
settings are satisfactory.
Refit the cover and filler panels.
ccpi
1
2
3
