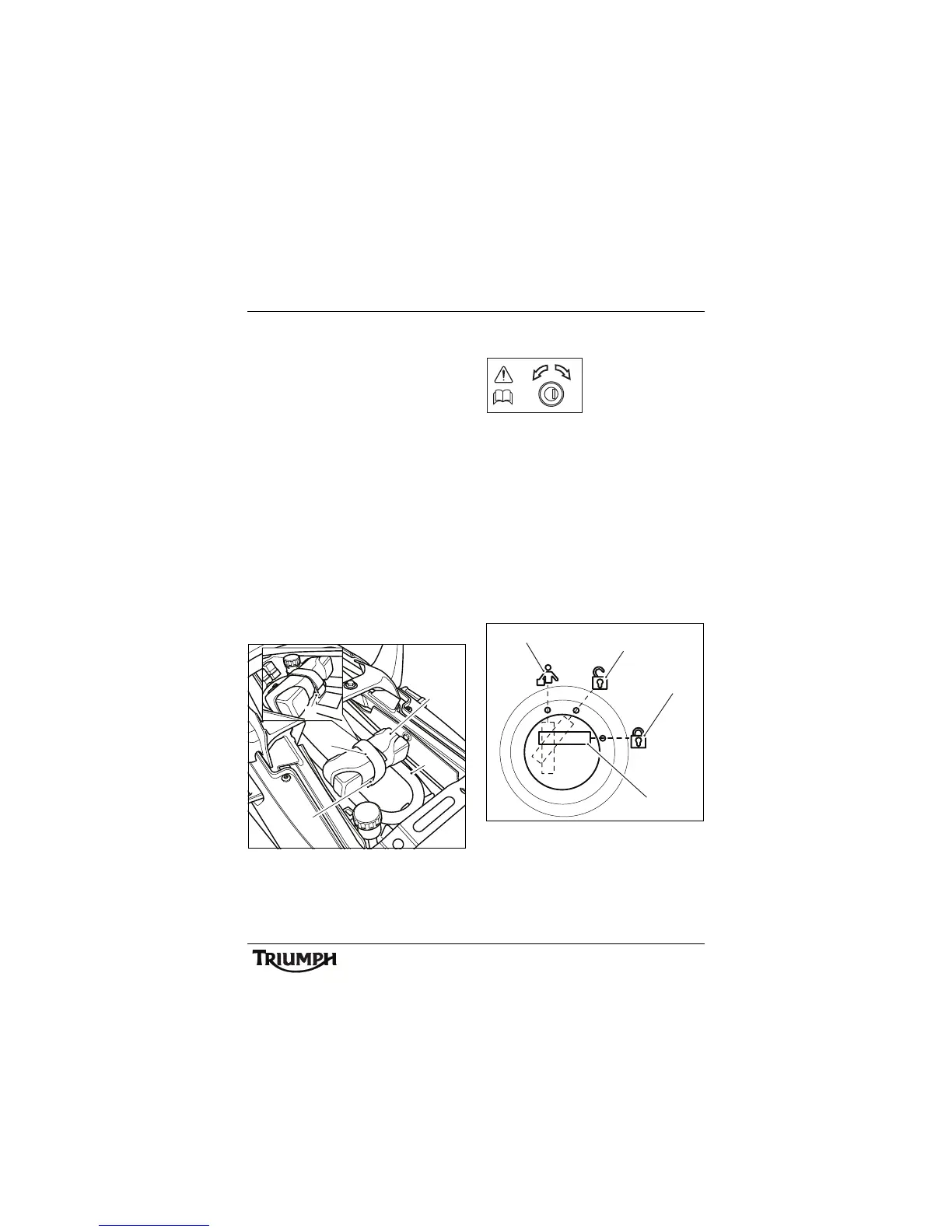

Triumph Sprint GT 1050 User Manual

41
General Information
Triumph Accessory D-lock
Storage - Sprint GT models
only
Space is provided under the seat to store a
Triumph accessory D-lock (available from
your Triumph dealer).
Secure the lock as follows:
Thread the strap through the rear mudguard
lock support from the rear, so that the buckle
faces towards the rear of the motorcycle.
Position the U-section of the lock to the rear
mudguard support features, ensuring the
open end faces towards the rear of the
motorcycle.
Position the lock body to the support on the
rear mudguard.
Thread the strap over the lock and through
the buckle, and pull tight, fastening the hook
and loop part of the strap to secure.
1. Lock U-section
2. Lock
3. Hook and loop strap
4. Rear mudguard lock support feature
5. Buckle
Pannier System - Sprint GT
To install each pannier:
Note:
• The same procedure can be
followed to remove and mount the
left hand or the right hand
panniers.
• The pannier is marked in three
positions around the lock barrel.
To lock, open or release the
panniers, the key slot must align
with the corresponding symbols
around the barrel as shown.
1. Key slot (shown in the LOCK
position)
2. Lock position symbol
3. Unlock position symbol
4. Release position symbol
c
g
ef
5
3
1
4
2
R
E
L
E
A
S
E
•
•
L
O
C
K
•
O
P
E
N
2
3
4
1
