93
Maintenance and Adjustment
Spring Pre-Load Adjustment

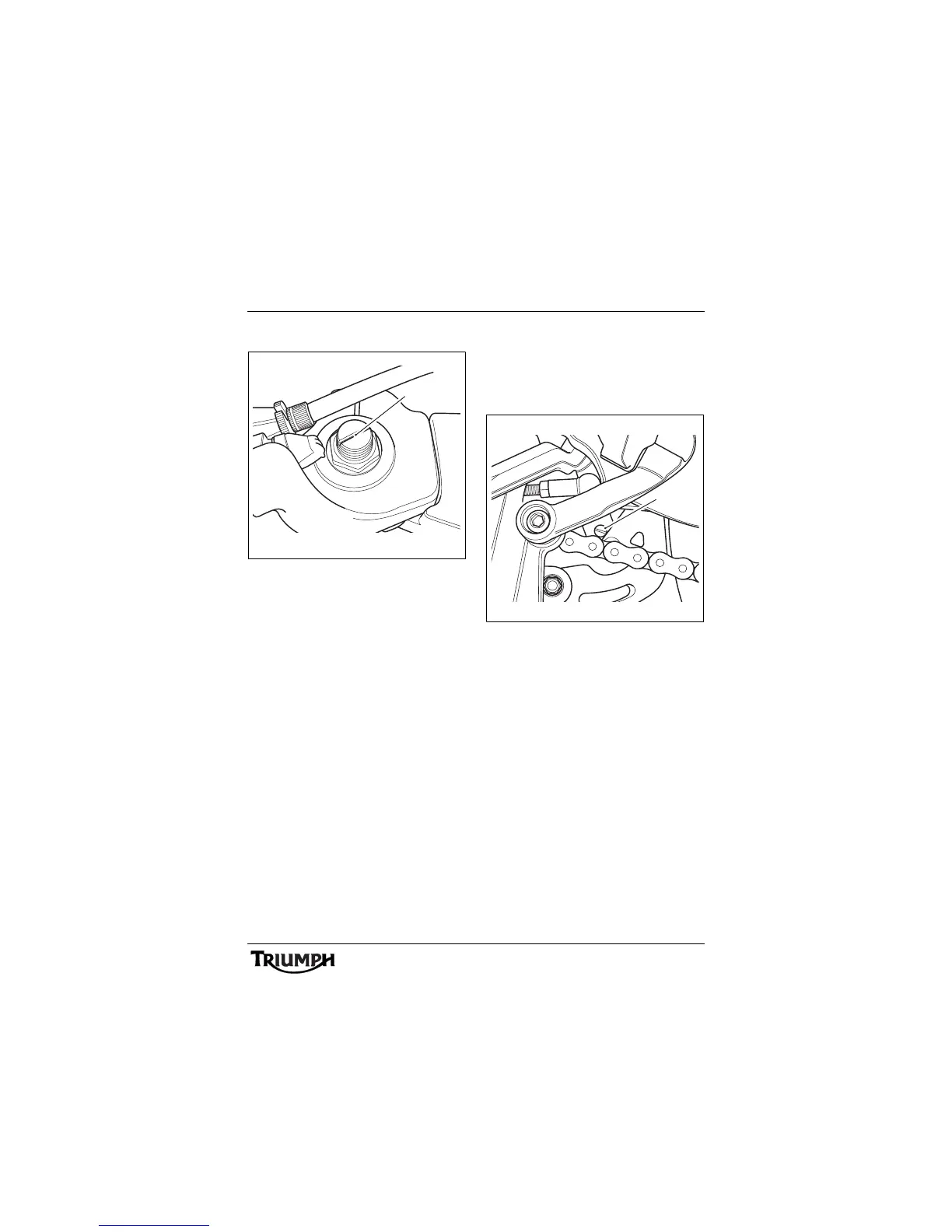

1. Spring pre-load adjuster
To change the spring pre-load, rotate the
adjuster clockwise to increase pre-load, or
anti-clockwise to decrease pre-load. Always
set the pre-load adjusters such that there are
an equal number of graduation lines visible
on both forks.
Note:
• The motorcycle is delivered from
the factory with the spring
pre-load set to three adjuster rings
visible above the fork top cap.
Rear Suspension Adjustment
The rear suspension unit is adjustable for
rebound damping and spring pre-load.
Rebound Damping Adjustment
1. Rebound damping adjuster
The rebound damping adjuster is located at
the bottom of the rear suspension unit on the
left hand side of the motorcycle.
To adjust the rebound damping setting,
rotate the adjuster clockwise to increase
rebound damping and anti-clockwise to
decrease.
Note:
• The setting is measured as the
number of adjuster turns in from
the fully screwed out (hard)
position.
• The motorcycle is delivered from
the factory with the rebound
adjuster set to 1.5 turns in from
the fully screwed out (hard)
position.
