76
Maintenance and Adjustment

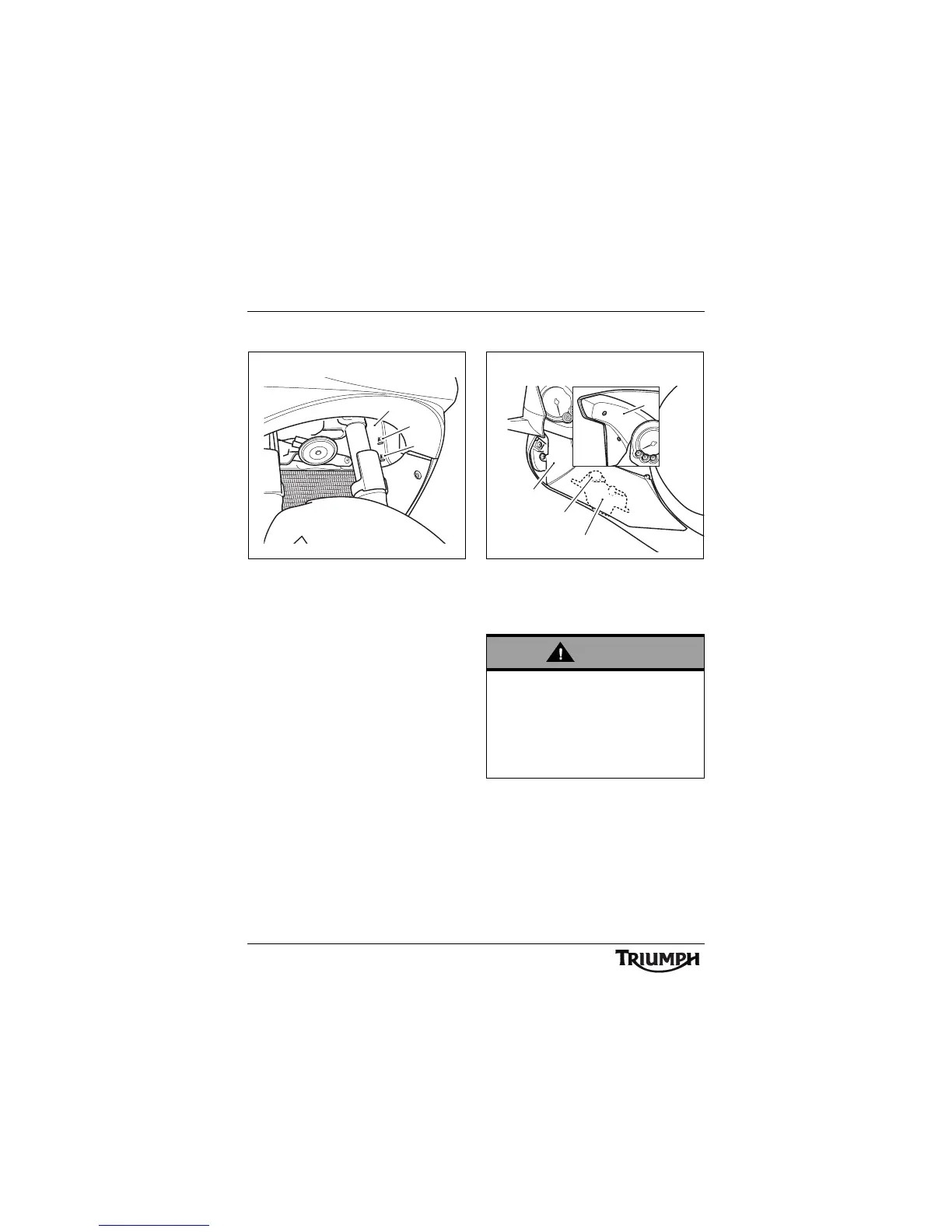

Coolant Level Inspection
1. Expansion tank
2. MAX mark
3. MIN mark
Position the motorcycle on level ground and
in an upright position. The expansion tank is
located beneath removable panels on the left
hand side of the front fairing.
The coolant level in the expansion tank can
be checked by looking up and through the
centre opening of the front fairing. The level
can also be checked from above by looking
down to the left.
Check the coolant level in the expansion
tank. The coolant level must be between the
MAX and MIN marks. If the coolant is below
the minimum level, the coolant level must be
adjusted.
Coolant Level Adjustment
1. Upper infill panel
2. Lower infill panel
3. Expansion tank
4. Tank cap
Allow the engine to cool.
Remove the two fixings, release the upper
infill panel bayonet from the grommet and
carefully remove the infill panel.
Remove the fixing and carefully remove the
lower (fairing) infill panel to expose the
expansion tank.
ccno
2
1
3
Warning
Do not remove the expansion tank or
radiator pressure cap when the engine is
hot. When the engine is hot, the coolant
inside the radiator will be hot and also
under pressure. Contact with this hot,
pressurised coolant will cause scalds and
skin damage.
ccob
1
2
4
3
