Page #104 background imageLoading...
Page #104 background image
104 “Translation of the original instruction”

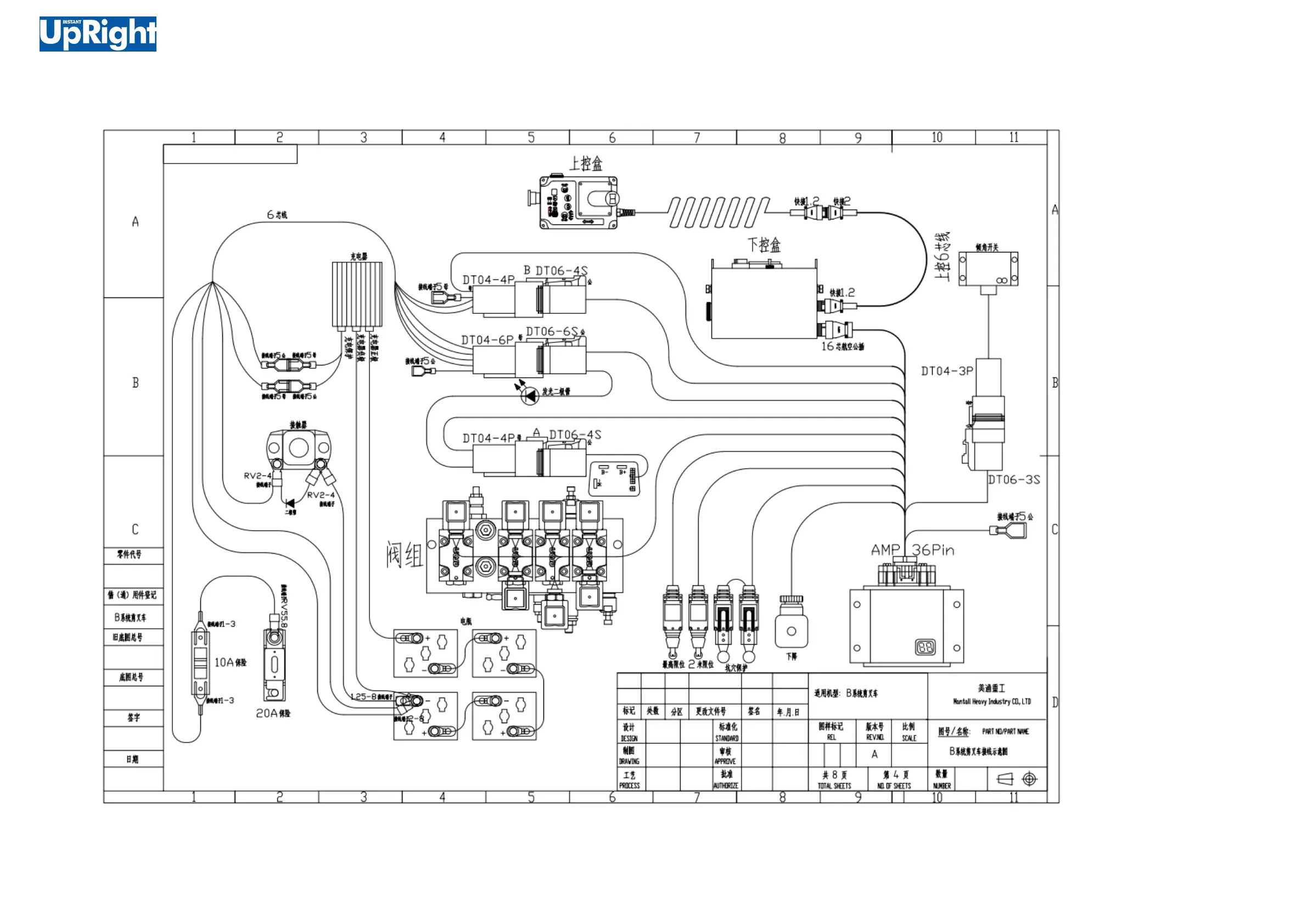

7.1.17Wiring diagram of Hydraulic drive B system
