GUID-ADAF8116-6226-4C11-9612-54B0F924E7EA

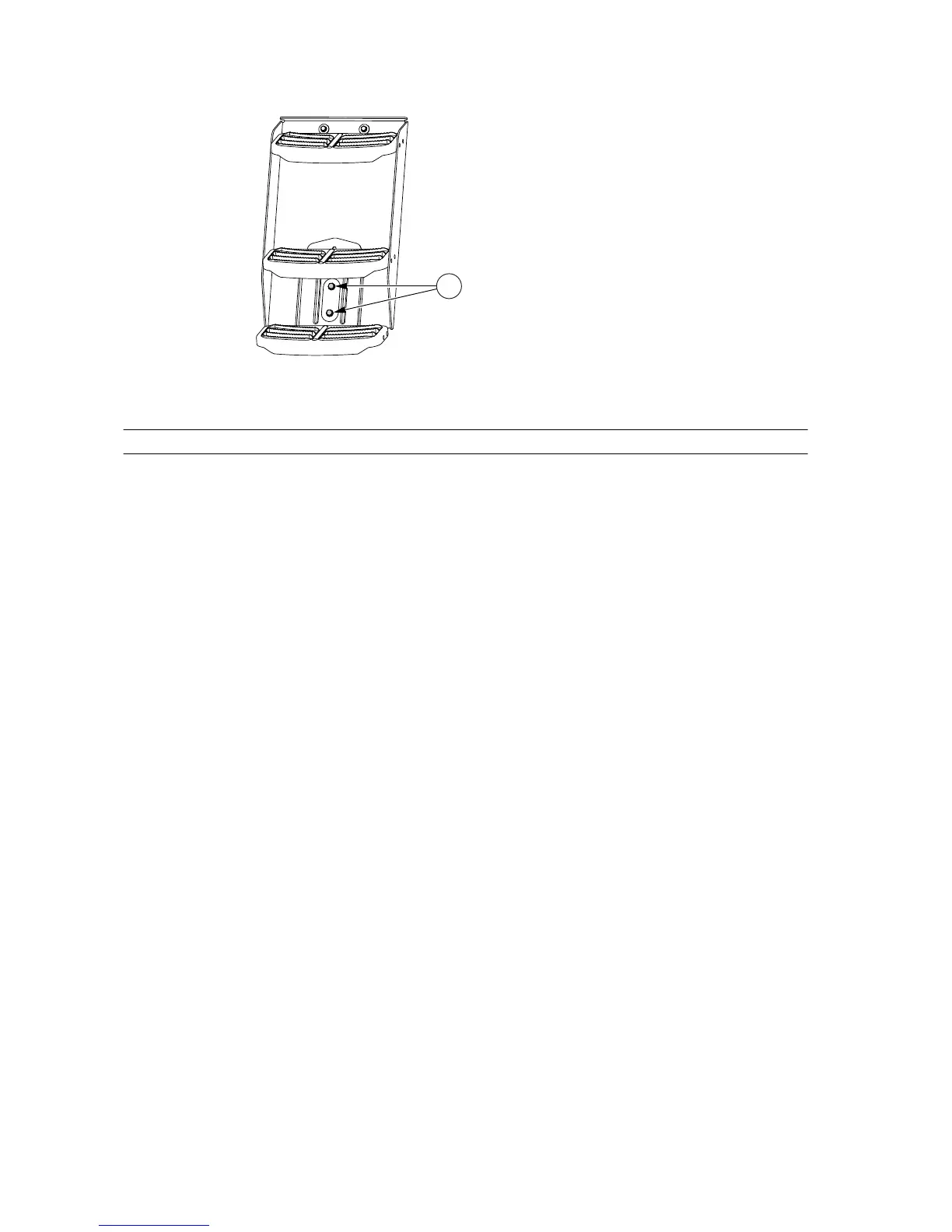

1. Screws
4.8.9.4 Checking and adjusting front mudguards
Check and adjust the front mudguards if needed.
• After transportation, check and adjust the front mudguards for maximum
turning angle.
• If necessary, move them to the right width so that the mudguards do not
touch the tractor chassis.
IMPORTANT: According to the EU directives the smallest allowed distance
between the side of the tyre and the mudguard is 40 mm and between the
top of the tyre to the mudguard is 60 mm.
4. Maintenance
- 364 -
