4.8.9.5 Adjusting flexible front mudguards
Adjust the flexible front mudguards, if needed.
GUID-2D1C18BC-43E2-4281-BC1E-E939C958ED96

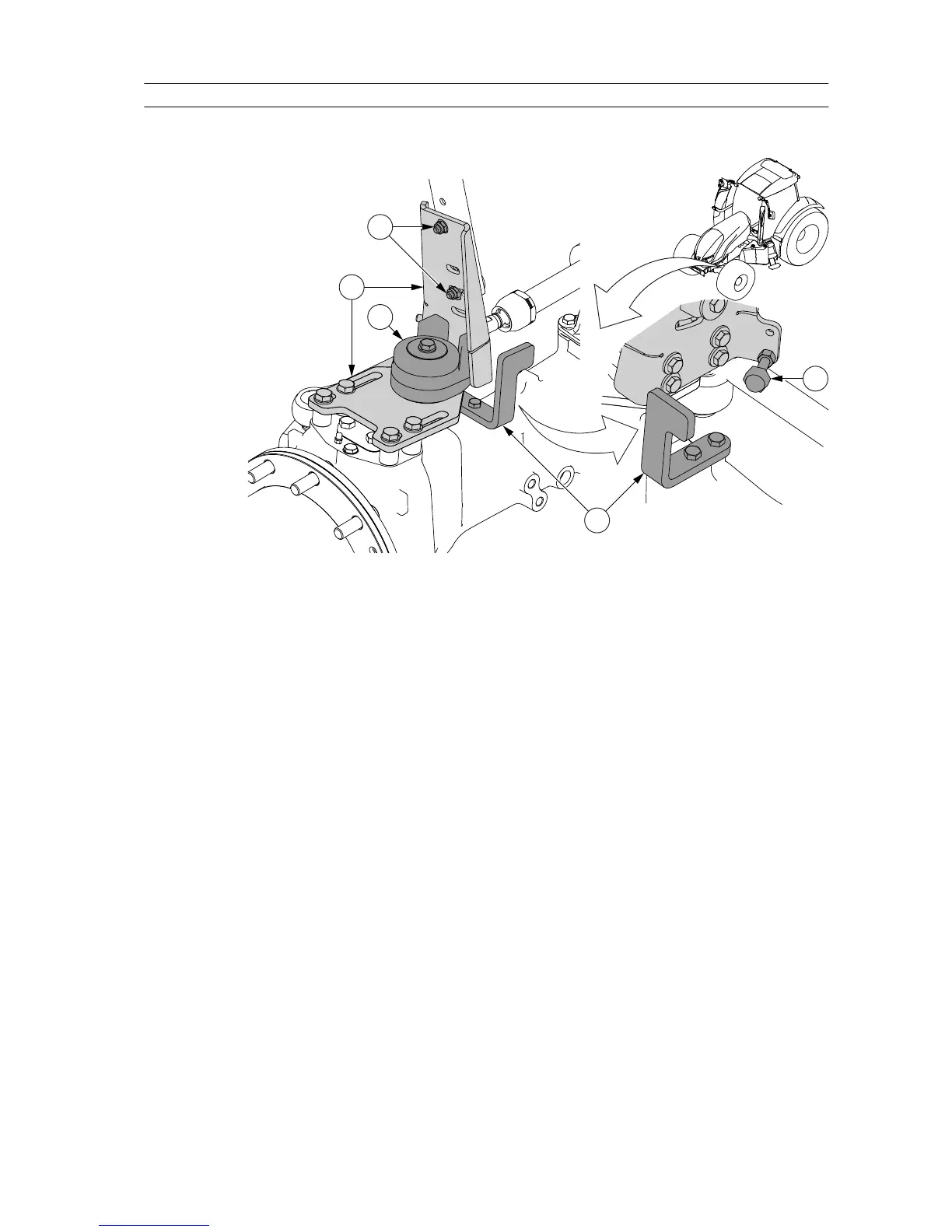

1. Fixing screws
2. Flexible front mudguard frame
3. Turning mechanism
4. Adjustment screw
5. Stopper
The mudguards can be turned fully to the side to the service position, which
eases the access to the engine compartment.
• Check the maximum oscillation and turning angles so that the front
mudguards do not come in contact with, for example, the side panel when
you fit tyres.
When this adjustment is not needed fully screw in the adjustment screw.
• If necessary, limit the turning of the mudguards by adjusting the stoppers.
If the distance between the mudguard and the tyre requires, the stoppers can
be installed as a mirror image.
