Vatech PaX-i3D Smart Installation Manual

Pax-i3D Smart(PHT-30LFO) Installation Manual
59
4 Installing the Equipment: Floor Standing (Optional)
4.5
Fixing the base (Optional)
Concrete oor
Anchor bolts
M8 Size
Part No. : 34
2PCS
Hammer drill L=200mm7.9
Hammer
Ratchet wrench

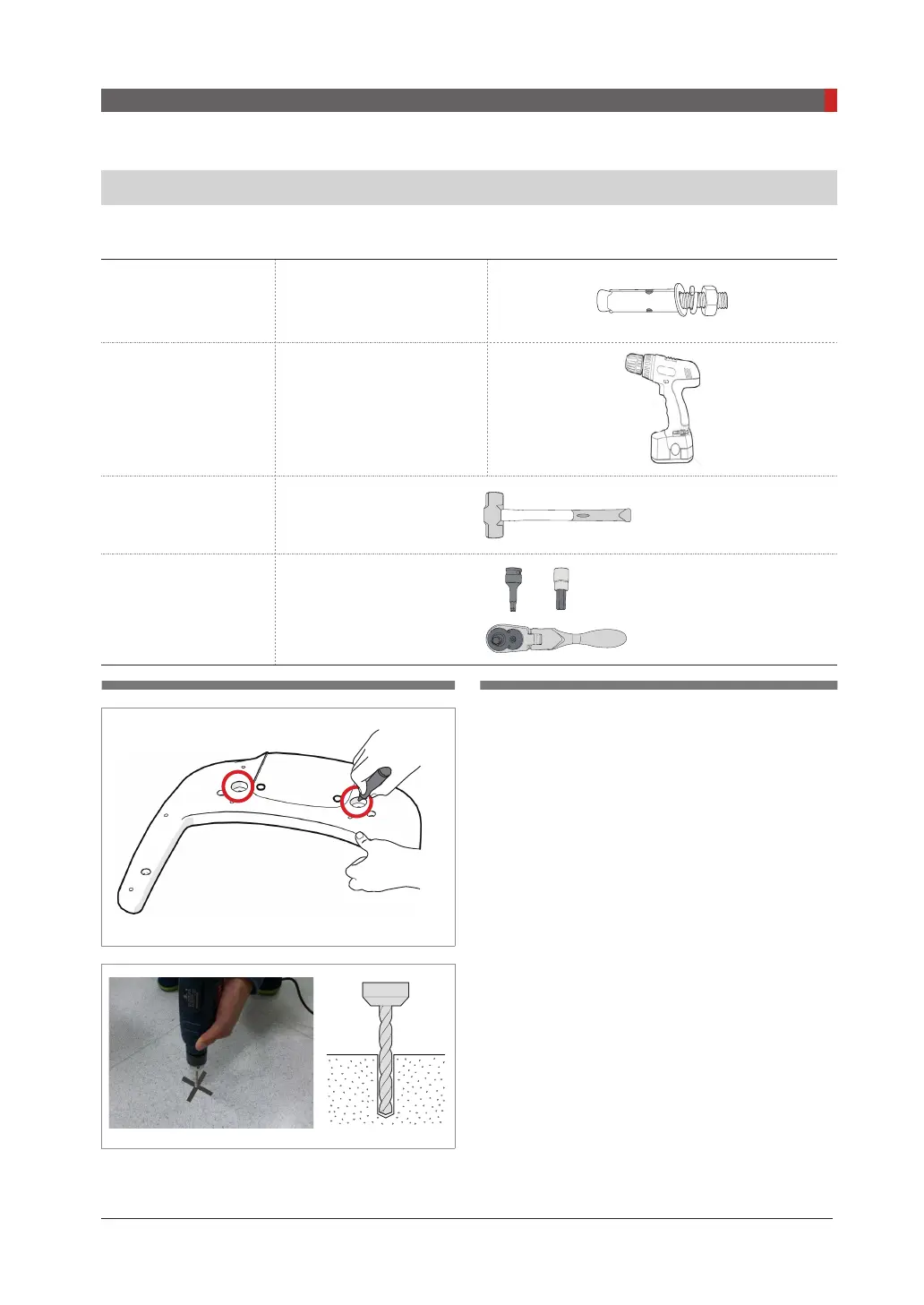

1.
Before installing the equipment, put the
base unit on the installation site and mark 2
locations on the oor.
2.
Drill the floor holes of size 12mm x 30mm
(depth) using the concrete hammer drill.
3.
Remove the debris and clean the holes using
the dust pump.
