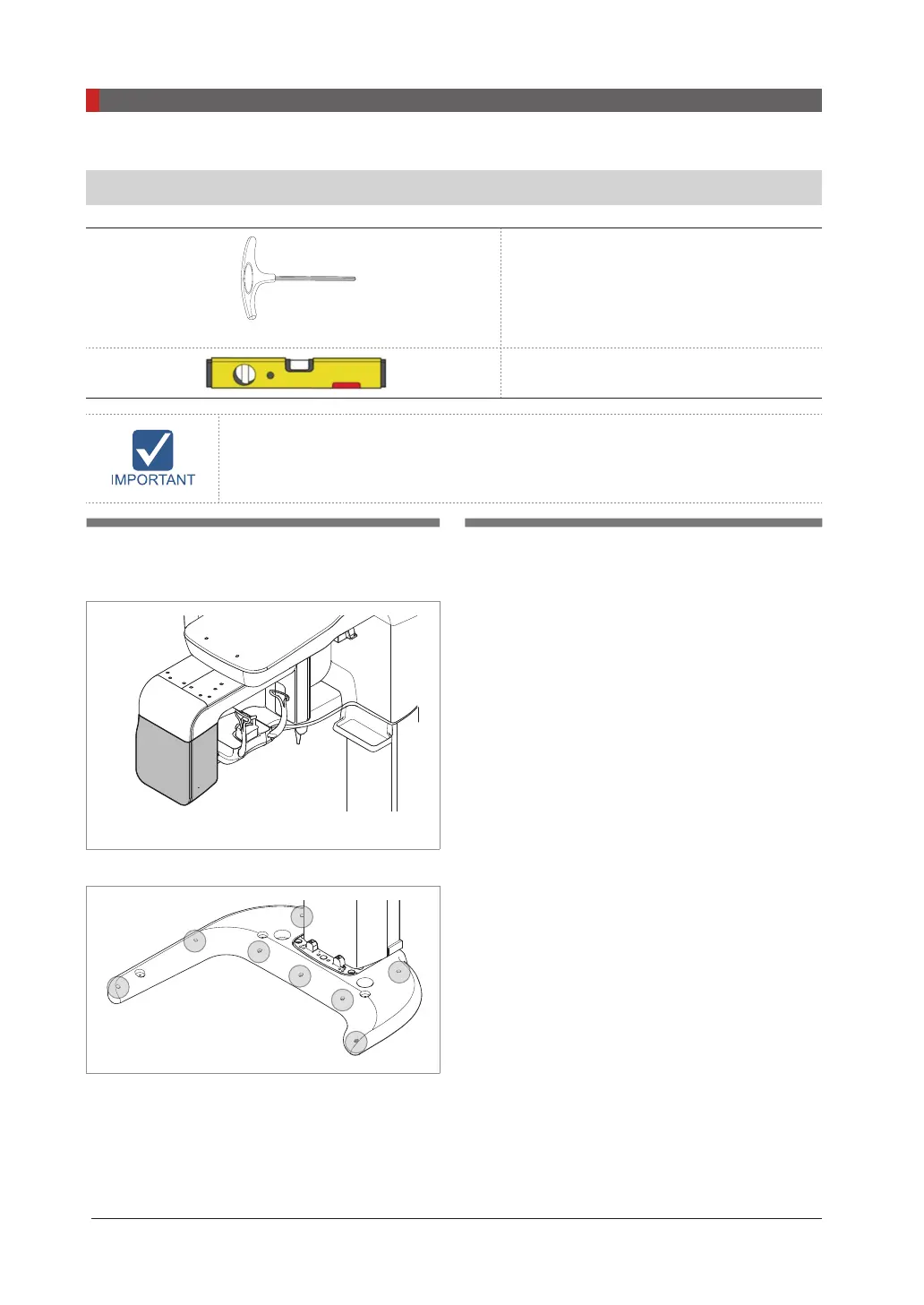

4 Installing the Equipment: Floor Standing (Optional)
4.7
Leveling the Equipment
8mm / 0.3"
T-shaped hex wrench
Spirit level
Ensure that the spirit level should restonly on the locations indicated in
the following gures to obtain the accurate center.
1.
Prepare the spirit level.
Tube head
2.
Position the rotating unit so that the X-Ray
tube head faces the front.
3.
Turn all eight screws on the base plate unit
clockwise until they touch the ground.
