NCU Controller Procedure
Refer to this section if your system is furnished with an NCU Controller.
NCU Controller Initialization
Refer to the NCU Instructions (UM1M830BNA) for detailed instructions.
Refer to Figure 80 for locations of the NCU local indicators and navigation keys.

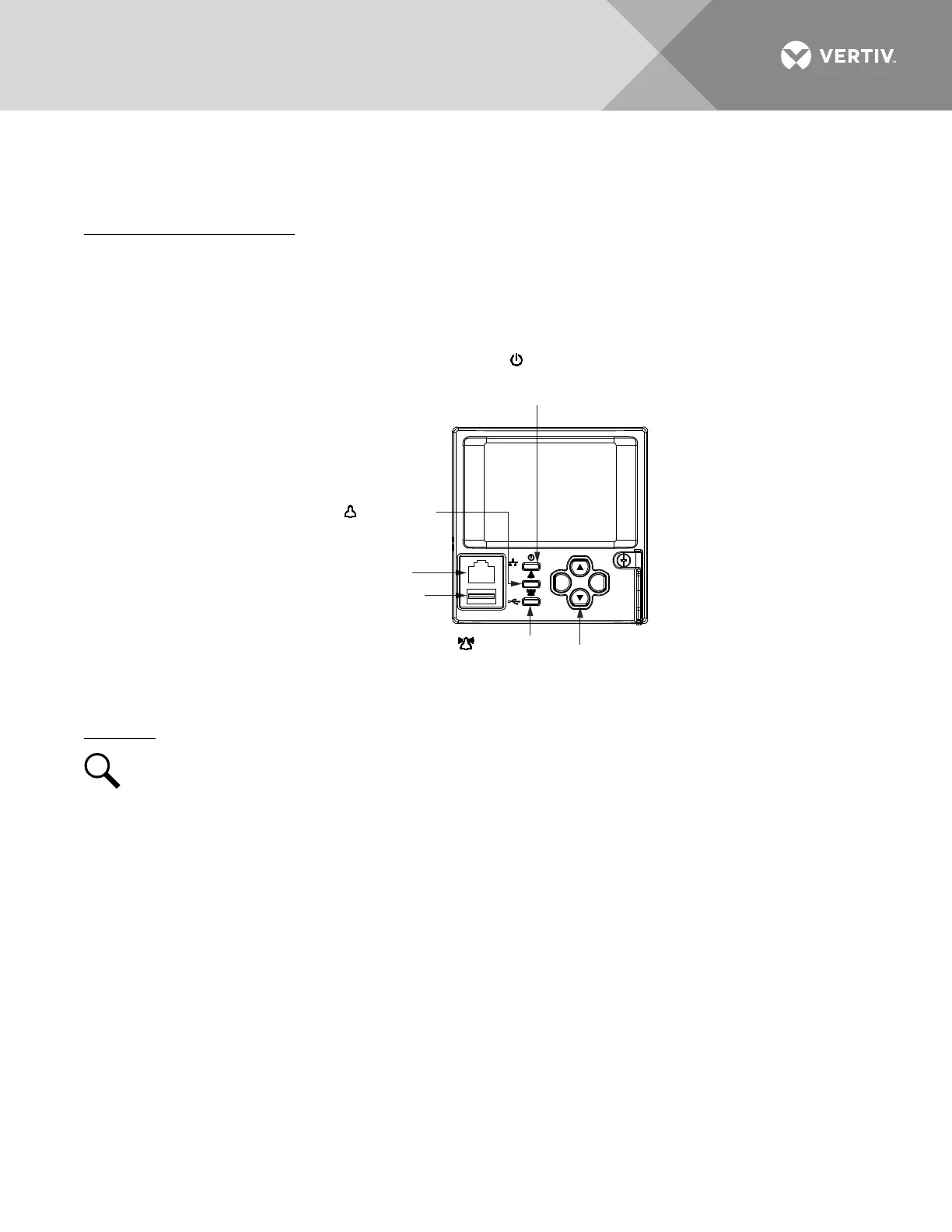

Figure 80: NCU Local Indicators and Navigation Keys
Procedure
NOTE! The initialization routine takes several minutes. During that time various alarm indicators may
illuminate on the NCU front panel and an audible alarm may sound. Disregard all alarms. An audible
alarm can be silenced at any time by momentarily depressing the ENT key on the NCU Controller.
1. After the NCU is powered on, the display shows the “logo” screen. The controller is initializing.
2. When initialization is complete, the language screen appears. Press the up or down arrow key to select
the desired language. Press the ENT key to confirm the selection.
3. The Main Menu displays. See Figure 81.
Status
Indicator
(Green)
Minor Alarm
Indicator ( Yellow)
Critical or
Major Alarm
Indicator
(Red)
Menu
Navigation
Keys
USB
Port
10/100M Ethernet
Port (RJ-45)
M830D
ESC ENT
