Vertiv NetSure 7100 Series User Manual

Vertiv | NetSure 7100 Series Quick Start Guide (QS582127000) | Rev. T
87
Load Connections to Single Voltage Distribution Panels

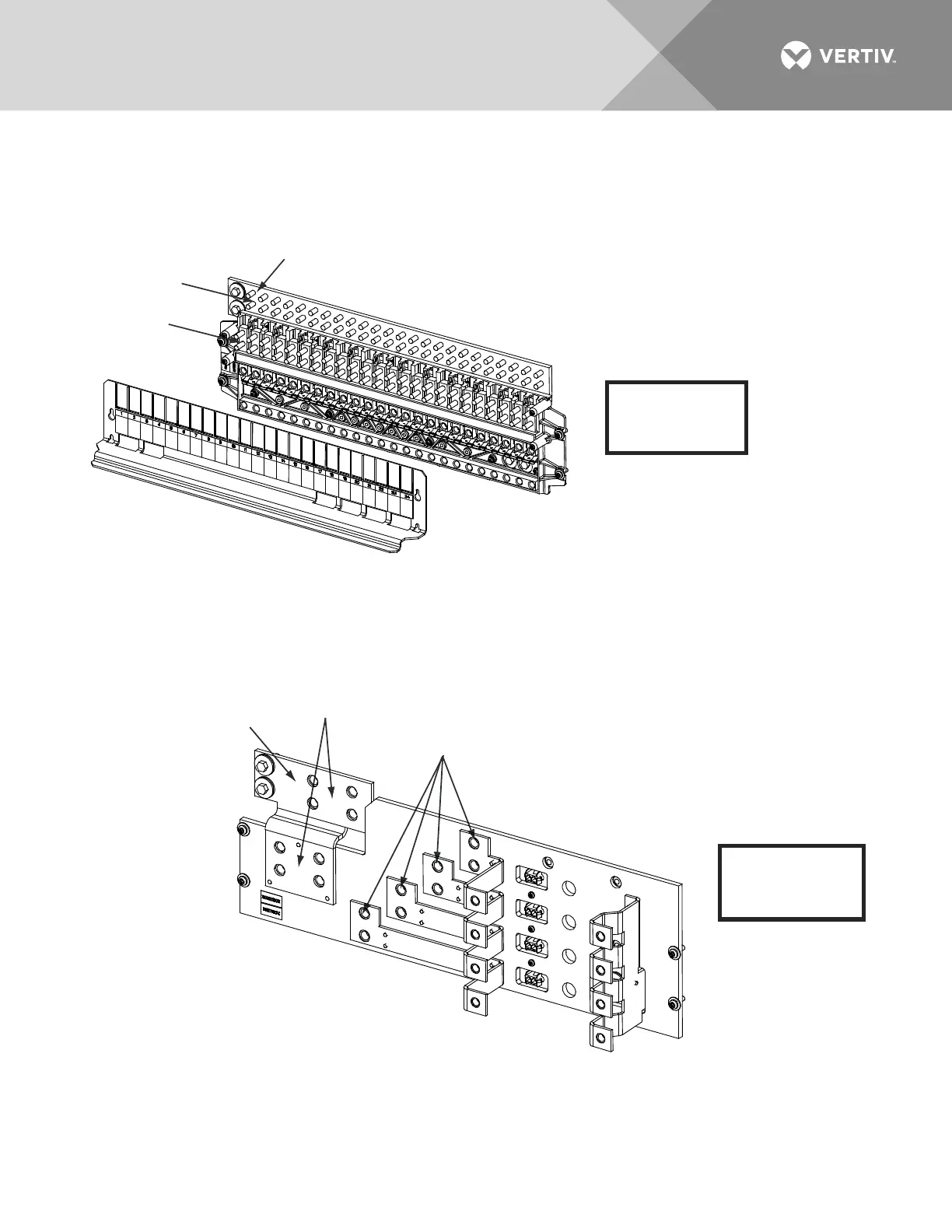

Figure 43: List AA: -48V Distribution Panel (with Return Busbar) and List AB: -48V Distribution Panel
(without Return Busbar), (24) Bullet/TPS/TLS Circuit Breaker/Fuse Positions
Figure 44: List AC: -48V Distribution Panel (with Return Busbar) and List AD: -48V Distribution Panel
(without Return Busbar), (4) GJ/218 Circuit Breaker Positions
-
4
8VDC Load
Connections
Load Return
Connections
LOAD AND LOAD RETURN CONNECTIONS
1/4-20 Studs on 5/8” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 0.625 inches.
Return Busbar
(not included with List AB)
Observe proper
polarity when making
load connections.
WARNING!
Caution: 100 A circuit breakers and fuses can be used without a space
provided the continuous operating current in each 100 A device does not
exceed 64 A. A 175 A or greater circuit breaker shall have an empty
mounting position between it and any other overcurrent protective device.
-48VDC Load
Connections
Load Return
Connections
LOAD AND LOAD RETURN CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.375 inches.
Return Busbar
(not included with List AD)
Observe proper
polarity when making
load connections.
WARNING!
For an 800A circuit breaker,
continuous load must not exceed 600A.
