Vimar Eikon Instruction Handbook

10 - ENGLISH

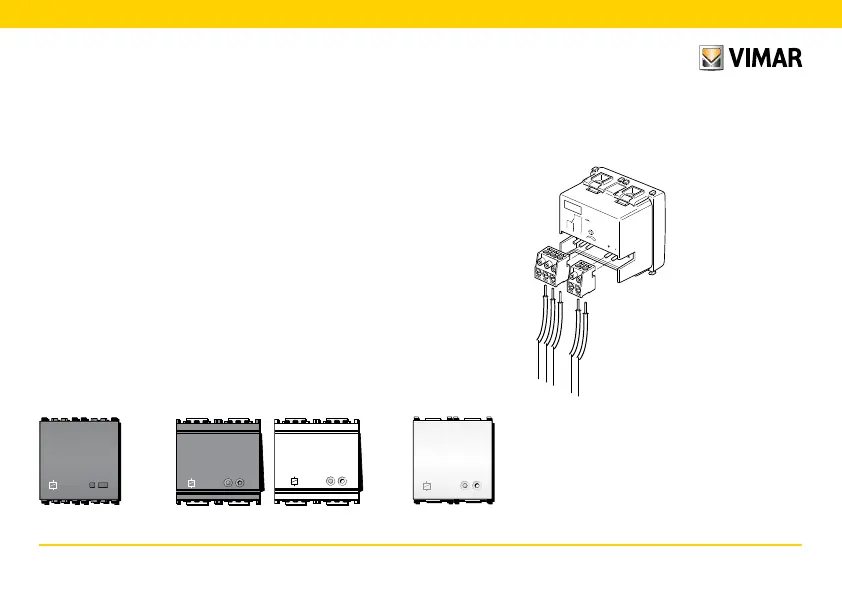

3.4 - Relay actuator
The actuator is a device with a clean contact relay output for
driving electrical locks, activating lighting systems, etc.
Technical specifications
• Rated supply voltage (Vn): BUS 20-32 V d.c.
• Enclosure protection: IP30
• Operating temperature: –5 - +45 °C (indoors
• Installation: flush or wall mount
• Relay characteristics: 3 A 30 V
• Typical current draw: 8 mA
• Operation in monostable mode
• Trimmer for adjusting relay activation time, between 0.25
and 10 seconds
• Configuration button
Key:
+, - : Connection to BUS
0: Common
1: Normally open contact
2
: Normally closed contact
ATTUATORE
BUS
3A 30V
2
1
+
-
0
IdeaEikon
1647220472 1447216472.B
Plana
• Indicator LEDs:
LED illuminated red during the configuration phase
LED illuminated green during relay activation
