Vision MAX Pro User Manual

Vision Max Pro User Manual138
© 2015 Vision Engraving Systems
4.3 Level 3 Job Examples - Using the Rotary Axis
These last 3 example jobs use the Rotary Axis on the Max Pro Engraver. The T-Slot Table will need to be
removed. Refer to Level 1 Jobs - Using the T-Slot Table for removal instructions. Several different types
of tools are used to hold items in the rotary vise. These include; cones, flat surfaces, chucks and related
pins. If you do not have certain tools for the rotary fixture, contact technical support at Vision - 602-439-
0700.
4.3.1 Example Job 7 - Engraving Round Objects
In this example job, a metal mug will be engraved using the rotary axis.

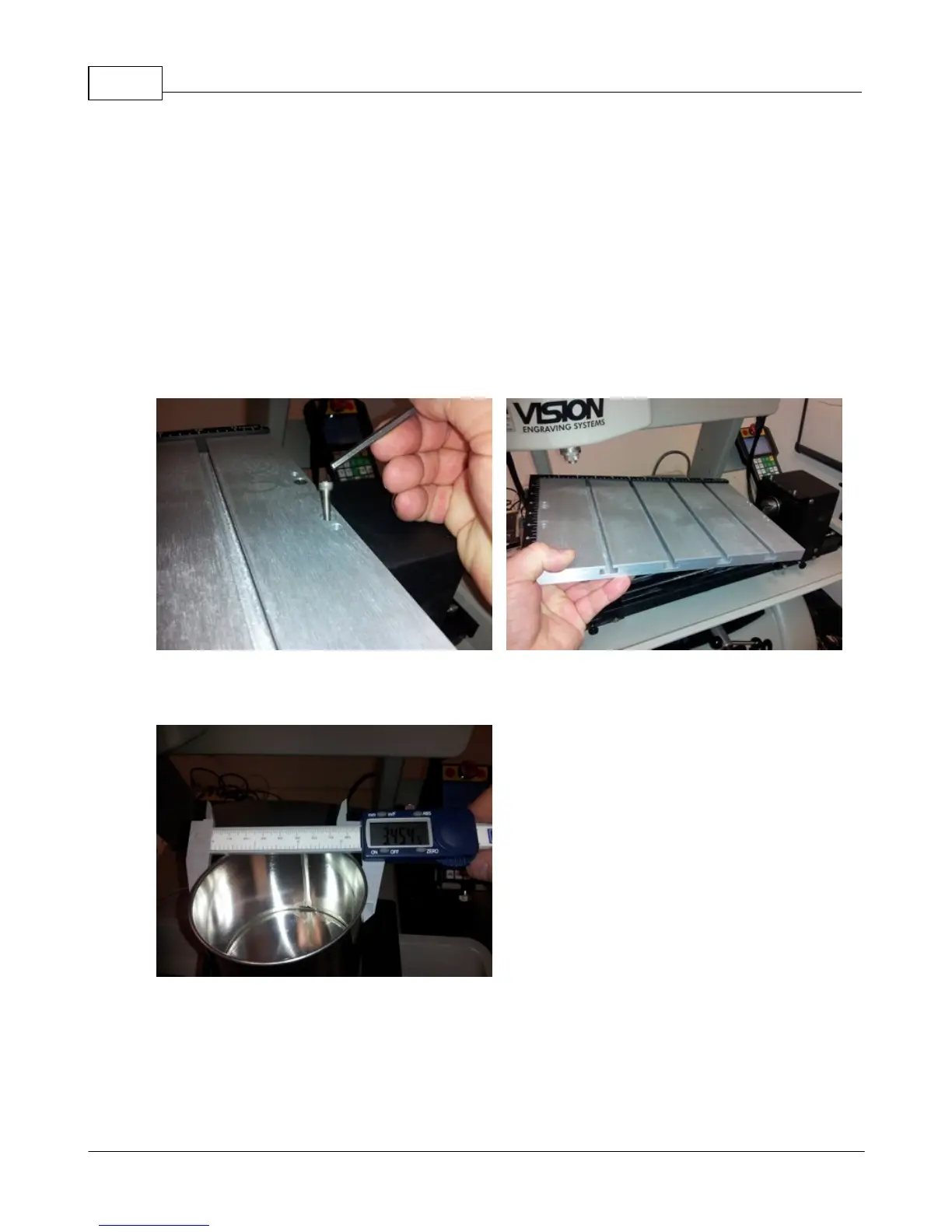

To prepare the machine for use of the rotary axis, remove the T-slot table by removing the 4 screws
securing the table as shown and removing the table.
Measure the diameter of the item to be engraved with calipers in the are where the engraving will be
positioned. In this example, a mug was used and the diameter was 3.454 inches.
