Vision Max Pro User Manual22

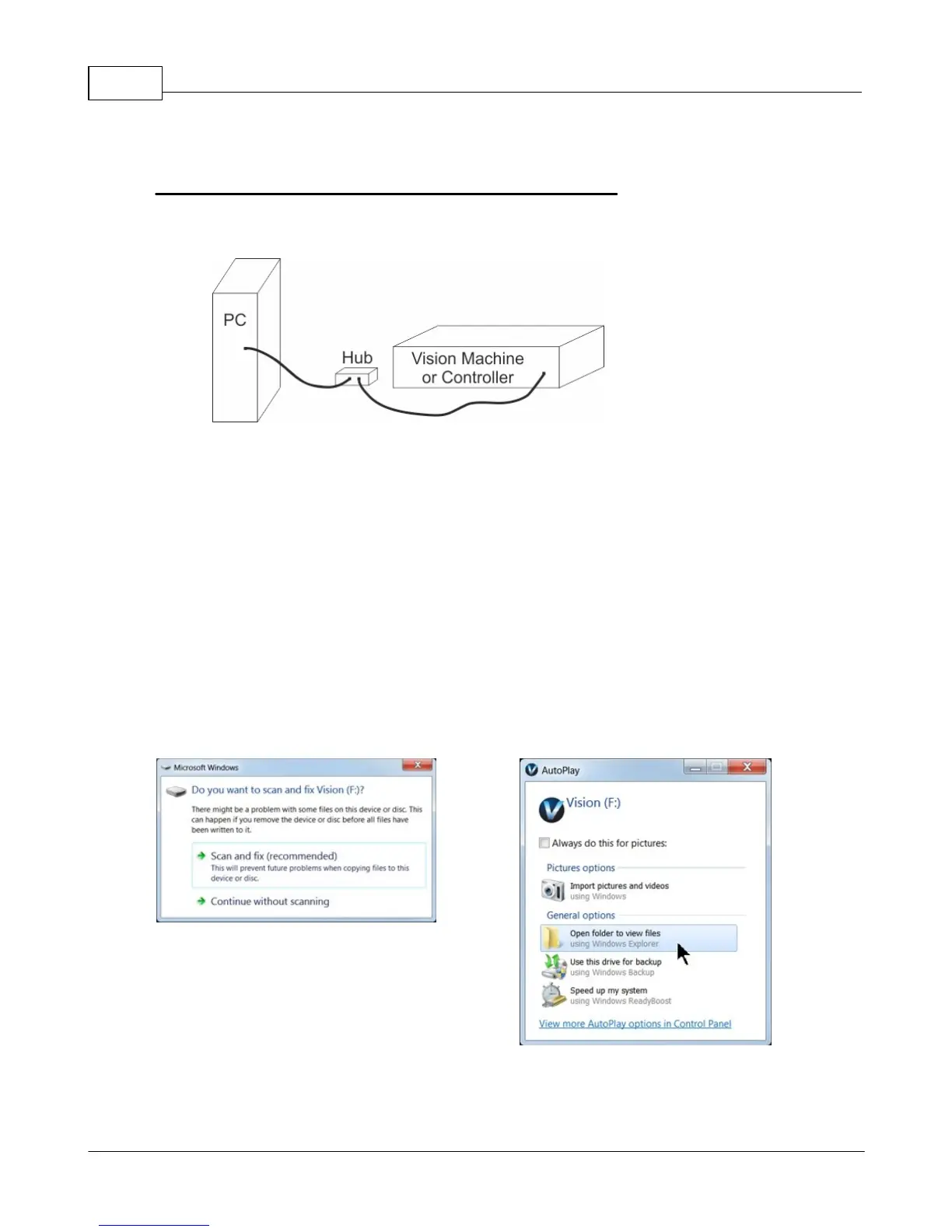

2.2.3 Using a Network Hub - ONLY

Connection from PC to Hub or Router to Machine or Controller

Once the machine is connected to a hub or router, and the hub or router is connected to your

computer's network port, turn the machine on. The power switch for the Max Pro is located on the left

rear of the machine's base. Once the machine has initialized, plug the supplied Vision USB drive into

an available USB port on your computer.

NOTE - This installation is performed on a Windows 7 PC. For Windows XP, Windows 8, Windows 8.1

or Windows 10, the screens are slightly different.

The computer will recognize the USB drive

and the following screen will appear.

Select Continue without scanning.

Select Open folder to view files.
