Service procedures - intake and exhaust systems Group 22

120

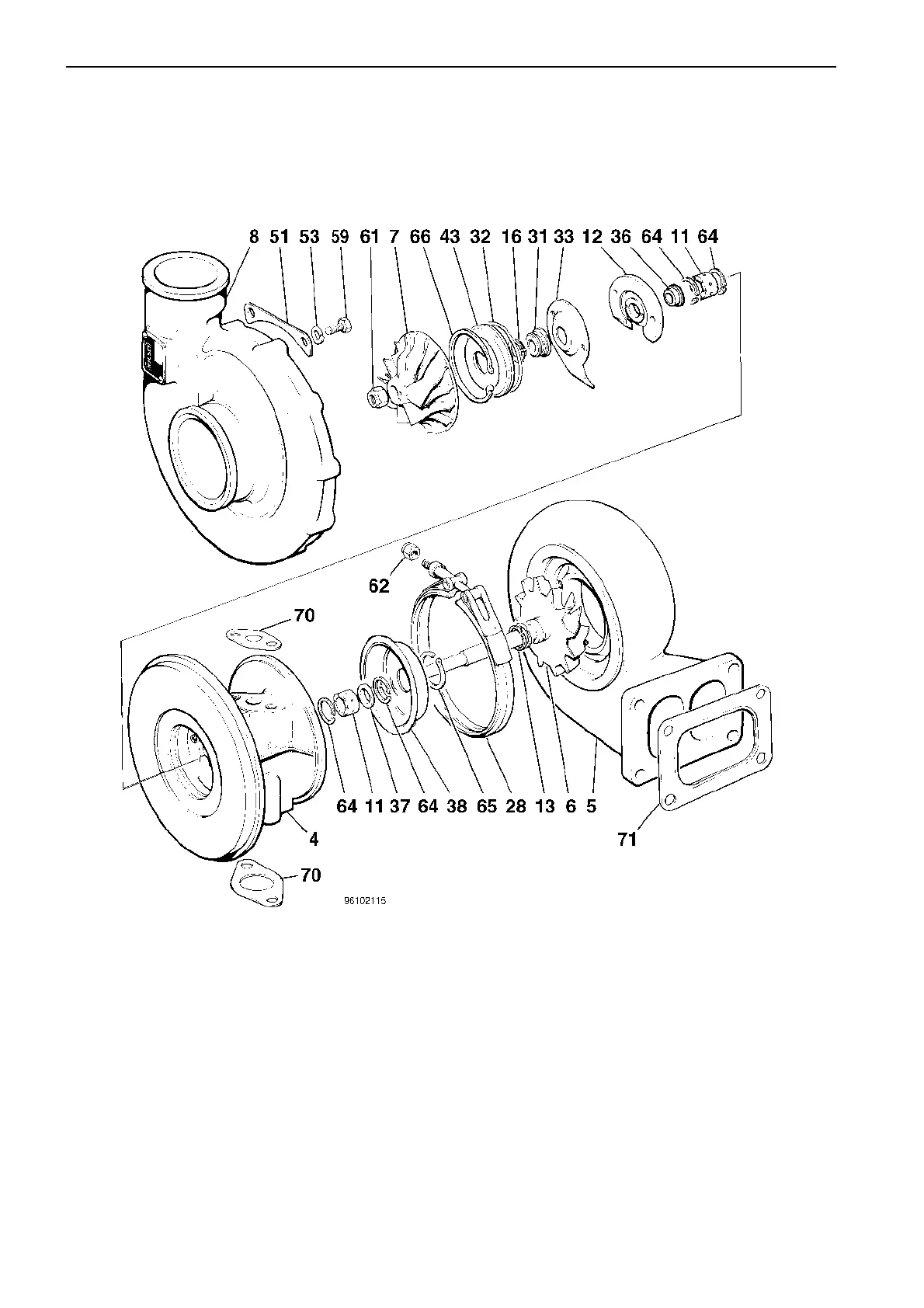

Holset H3B/HSB 0870/B36, TWD1620,

TID162, TWD1630

4. Bearing Housing

5. Turbine housing

6. Shaft and Wheel

7. Compressor Wheel

8. Compressor Cover

11. Bearing bushing

12. Thrust bearing

13. Piston ring

16. Piston ring

28. V-Band Clamp

31. Oil Slinger

32. O-Ring

33. Oil Deflector

36. Thrust flange

37. Oil Control Ring

38. Heat Shield

43. Insert

51. Clamp

53. Washer

59. Screw

61. Compressor Wheel Locknut

62. Clamp Locknut

64. Snap ring

65. Snap ring

66. Snap ring

70. Gasket-Oil Connection

71. Gasket-Inlet
