Volvo Penta TAD1630V User Manual

Group 20 Special tools
11

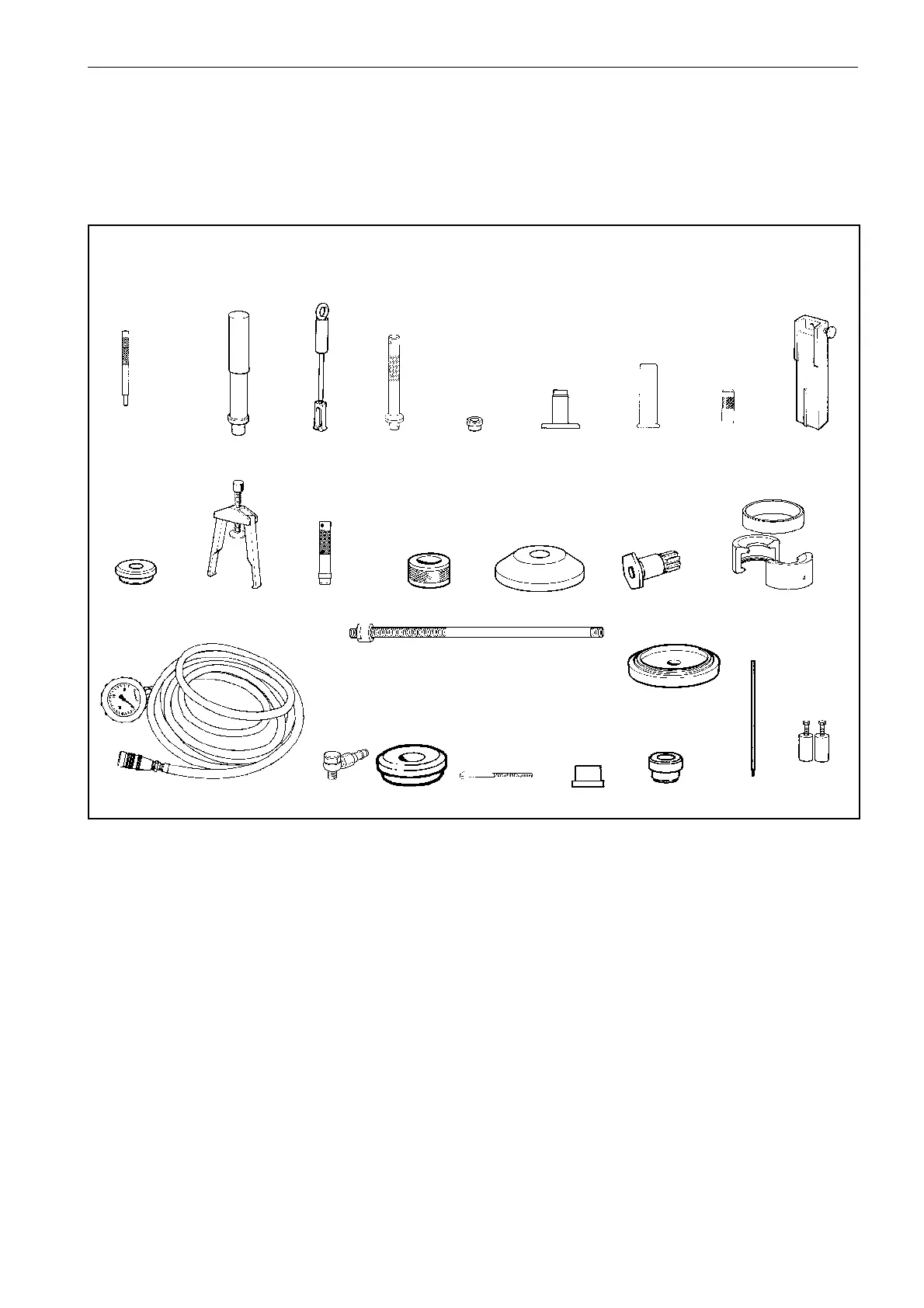

Special tools
The following special tools are used when working on the engine.
The tools can be ordered from AB Volvo Penta by specifying the number shown.
Tool Designation/use
999 2929 Drift, coolant pump seal ring
999 3590 Cranking tool for flywheel
999 6019 Support segments
999 6062 Spindle 7/8”-9 UNC
999 6065 Pressure gauge 2.5 bar.
999 6066 Nipple for feed pressure
999 6071 Drift for camshaft bearings
999 6225 Drift for rocker arm bushings
999 6315 Spindle
999 6236 Drift for cylinder liners
999 6352 Drift for rocker arm bushings
999 6390 Gauge extension
999 6394 Spacer for liner extractor
Tool Designation/use
999 1083 Drift for valve guides
999 1801 Standard handle 18x200
999 1819 Puller
999 2000 Standard handle 25x200
999 2061 Drift for reconditioning coolant pump
999 2269 Drift for fitting flywheel
999 2412 Drift for reconditioning coolant pump
999 2457 Hollow drift for rocker arm bushings
999 2479 Holder for dial indicator
999 2529 Drift for gudgeon pin
999 2658 Puller
999 2677 Drift for reconditioning oil pump
999 2852 Press ring
999 1083
999 1801
999 1819 999 2000
999 2061
999 2269 999 2412
999 2457
999 2479
999 2529
999 2658 999 2677 999 2852 999 2929
999 3590
999 6019
999 6065
999 6066
999 6062
999 6071
999 6225
999 6236
999 6352 999 6390
999 6394
999 6315
