Group 22 Service procedures - lubrication system
83

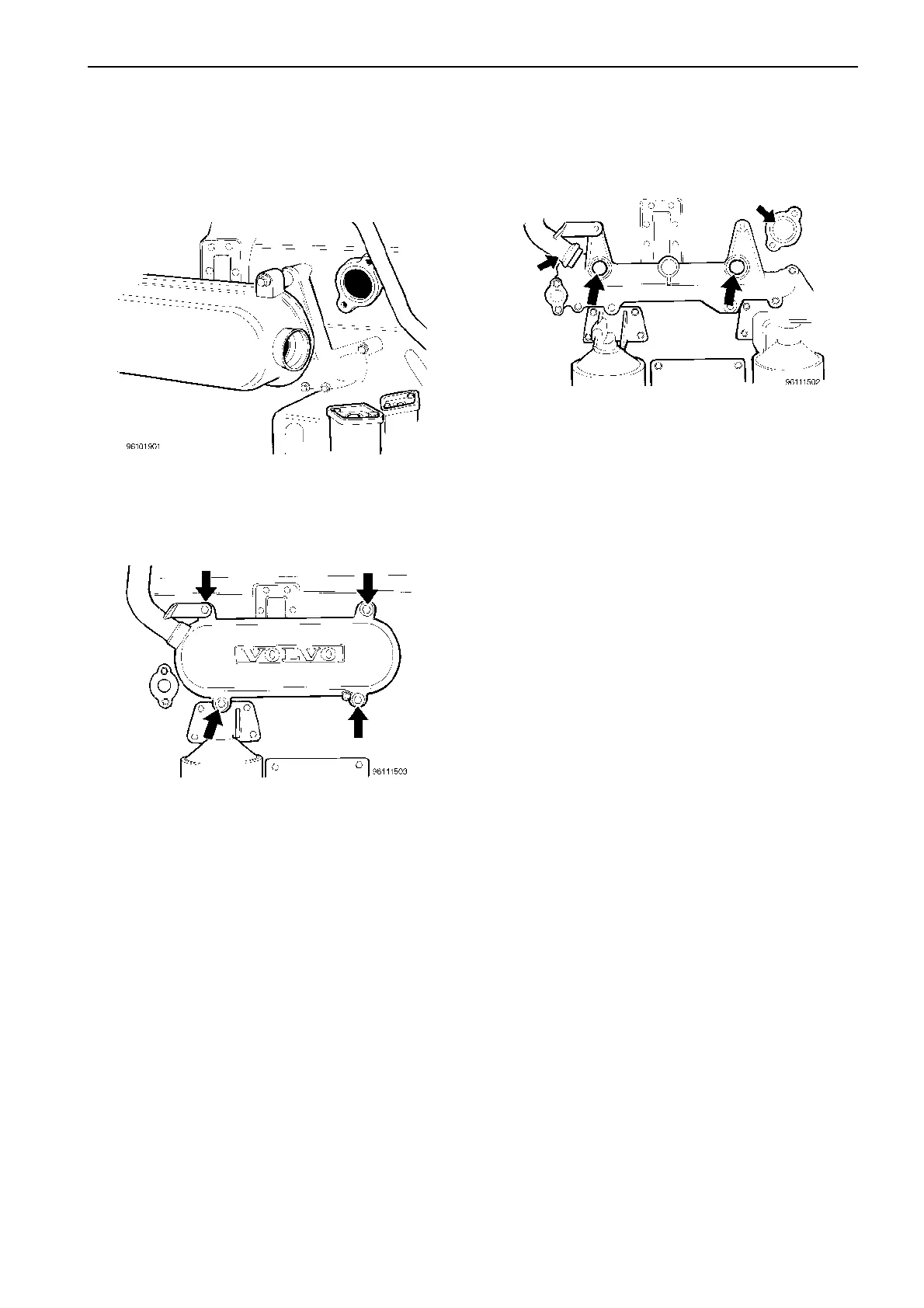

Oil cooler, replacing
1
Drain the coolant.
2
Remove the rear coolant pipe.
3
Remove the bolts (4) holding the oil cooler to the engine
block and spacer plate.
4
Disconnect the oil cooler from the front coolant pipe.
5
Fit new sealing rings to the engine block and to both coolant
pipes.
6
Push the new oil cooler onto the front coolant pipe.
7
Bolt the oil cooler to the spacer plate and engine block.
8
Replace the rear coolant pipe.
9
Fill with coolant.
10
Fill the engine with oil.
11
Start the engine and check for leaks.
