Group 22 Service procedures - lubrication system

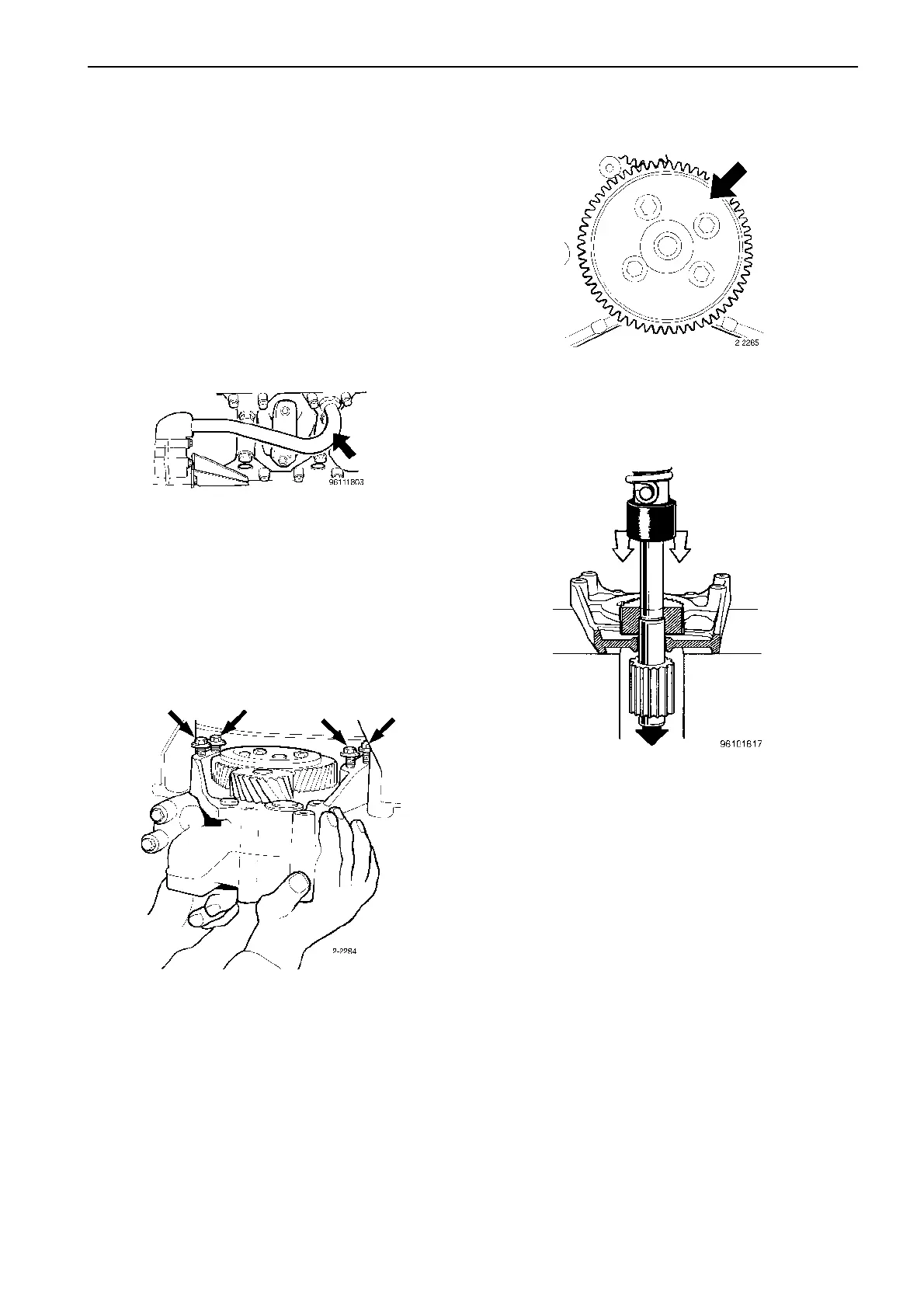

Oil pump, replacing

(Pan removed)

Special tools: 999 6413, 999 8012

Removal

Remove the delivery oil pipe.

Remove the suction oil pipe.

Remove the bolts for the bracket (4). Remove the pump

together with the bracket.

Remove the idler gear from the bracket.

Remove the pump housing from the bracket. Push the shaft

out of the drive gear.

Remove the pump from the bracket.
