Service procedures - engine Group 21

Flywheel, replacing

(Clutch removed)

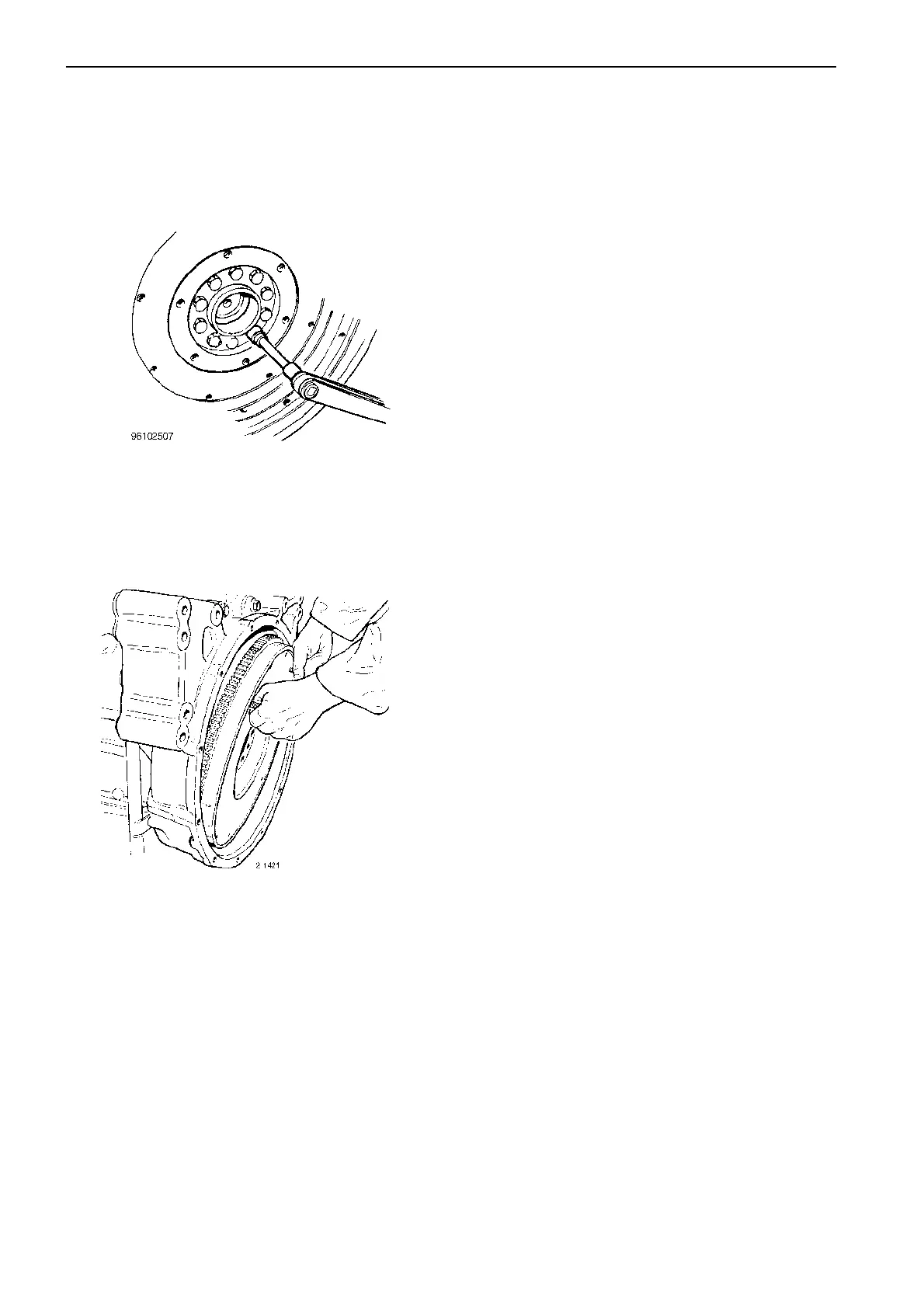

Remove the flywheel bolts.

Screw two bolts into the flywheel.

Using the bolts, lift off the flywheel.

Clean the crankshaft flange contact surface.

Check the guide pin, replace it if damaged.

Clean the flywheel contact surface which mates with the

crankshaft flange. Fit a new flywheel bearing (Power Pack

engines).

Fit the flywheel and the bolts.

Torque the flywheel to 260 Nm (191.8 ft-lb).
