Group 21 Service procedures - engine
27
Valve guides, inspection
Special tools: 998 9876, 999 9696
To determine the degree of valve guide wear, fit a new valve
into the guide and then measure the amount of play with a
dial indicator.
1

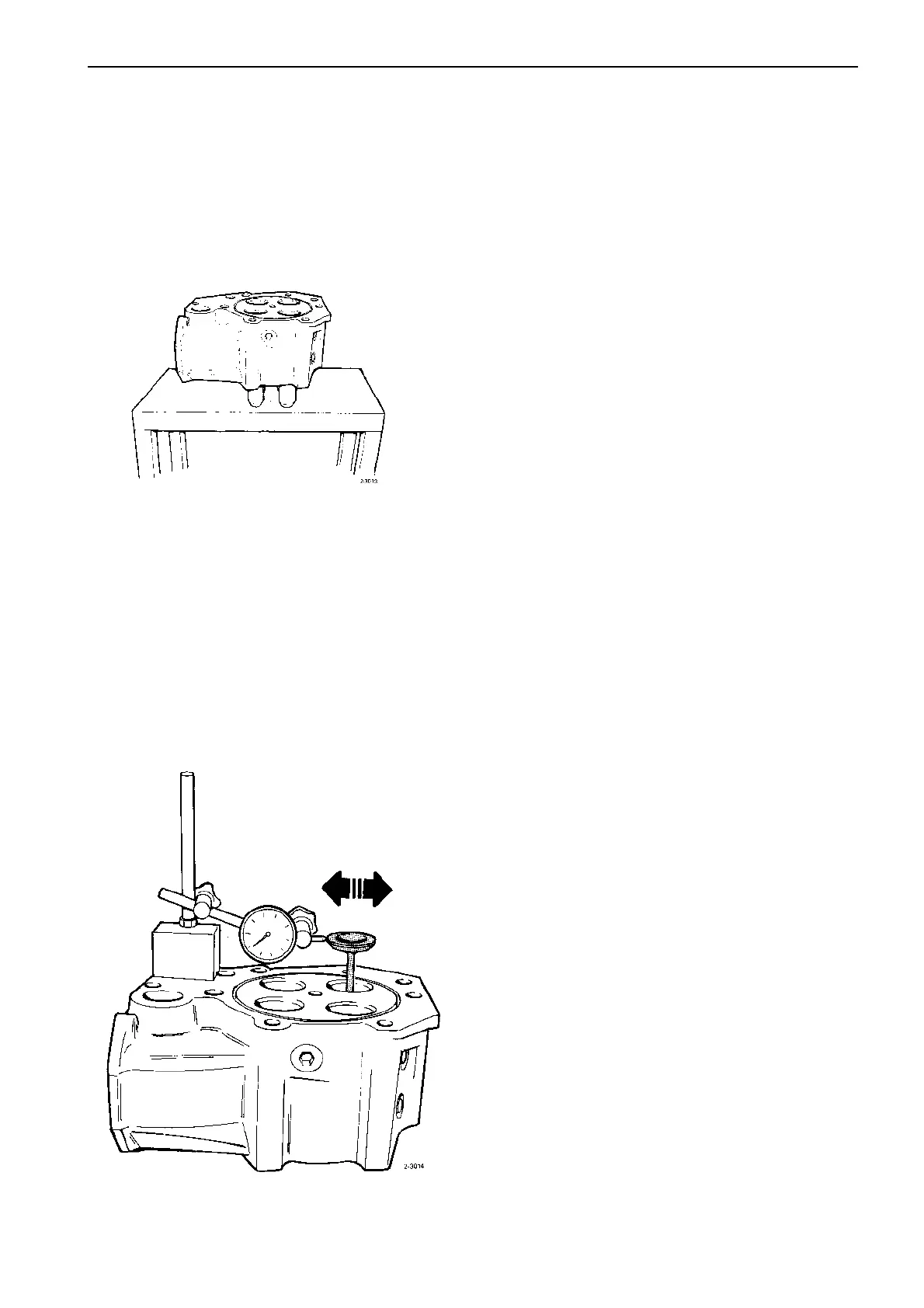

Put the cylinder head on a flat surface with the head resting
on the valve guides.
2
Fit a new valve into a valve guide pushing the valve down
until the stem rests against the flat surface underneath.
3
Use a dial indicator with a magnetic stand, placing the tip of
the dial indicator against the edge of the valve.
4
Move the valve sideways in the direction of the exhaust or
inlet ducts. Note the reading of the dial indicator.
Wear tolerances:
Inlet valve max play 0.30 mm (0.0118")
Exhaust valve max play 0.45 mm (0.0177")
If these amounts of play are exceeded, the valve guides
must be replaced.
