Group 21 Service procedures - engine

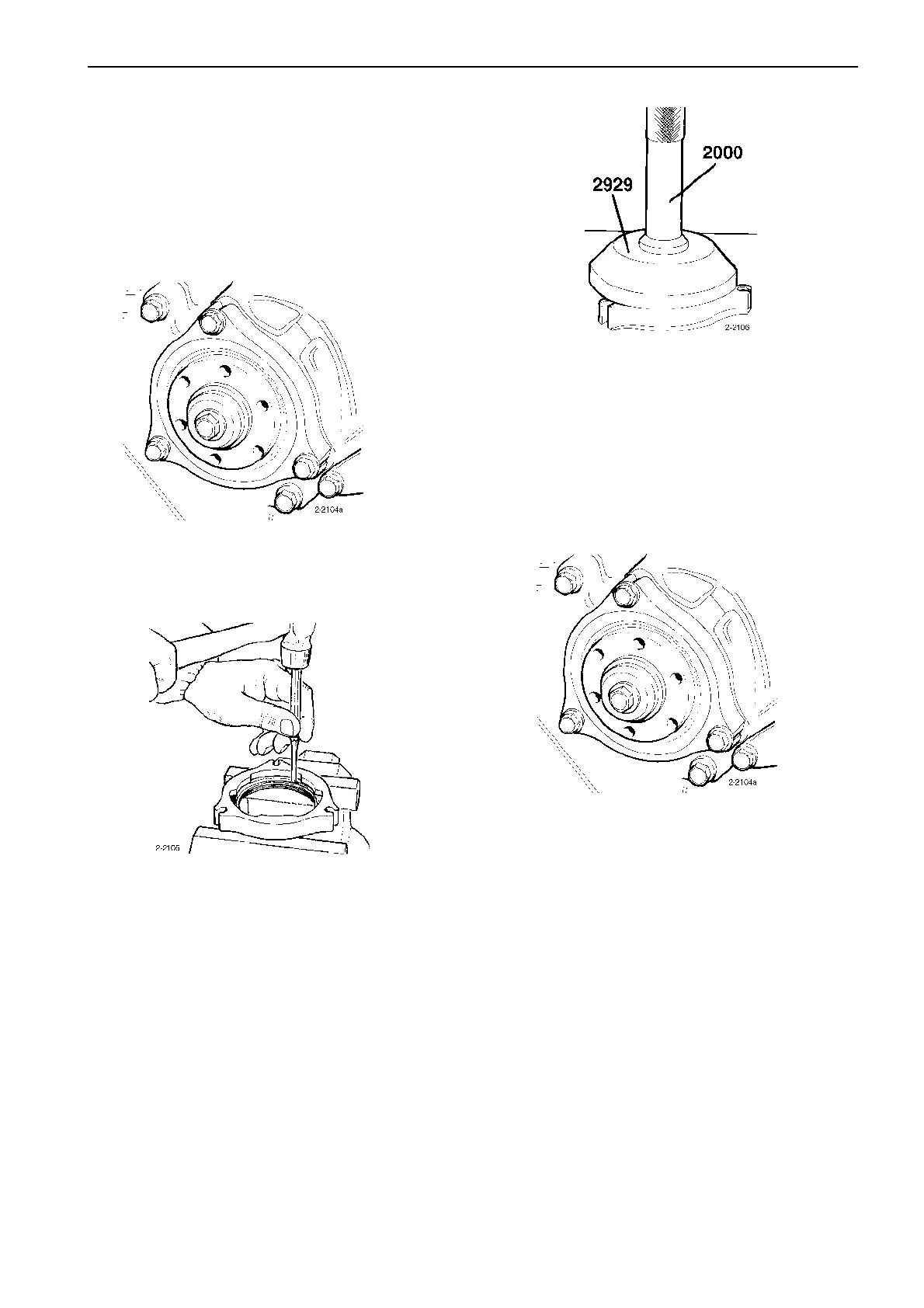

Front sealing ring for coolant

pump, replacing

Special tools: 999 2000, 999 2929

Remove the drive belt and the belt pulley and the holder

from the timing cover.

Remove the sealing ring from the holder.

Press the new sealing ring into the holder using tools 999

2000 and 999 2929.

Place a bead of sealant on the mating surface of the timing

gear cover.

Fit the holder on the timing cover.

Fit the belt pulley and the drive belts.
