Controls, indicators, and connectors

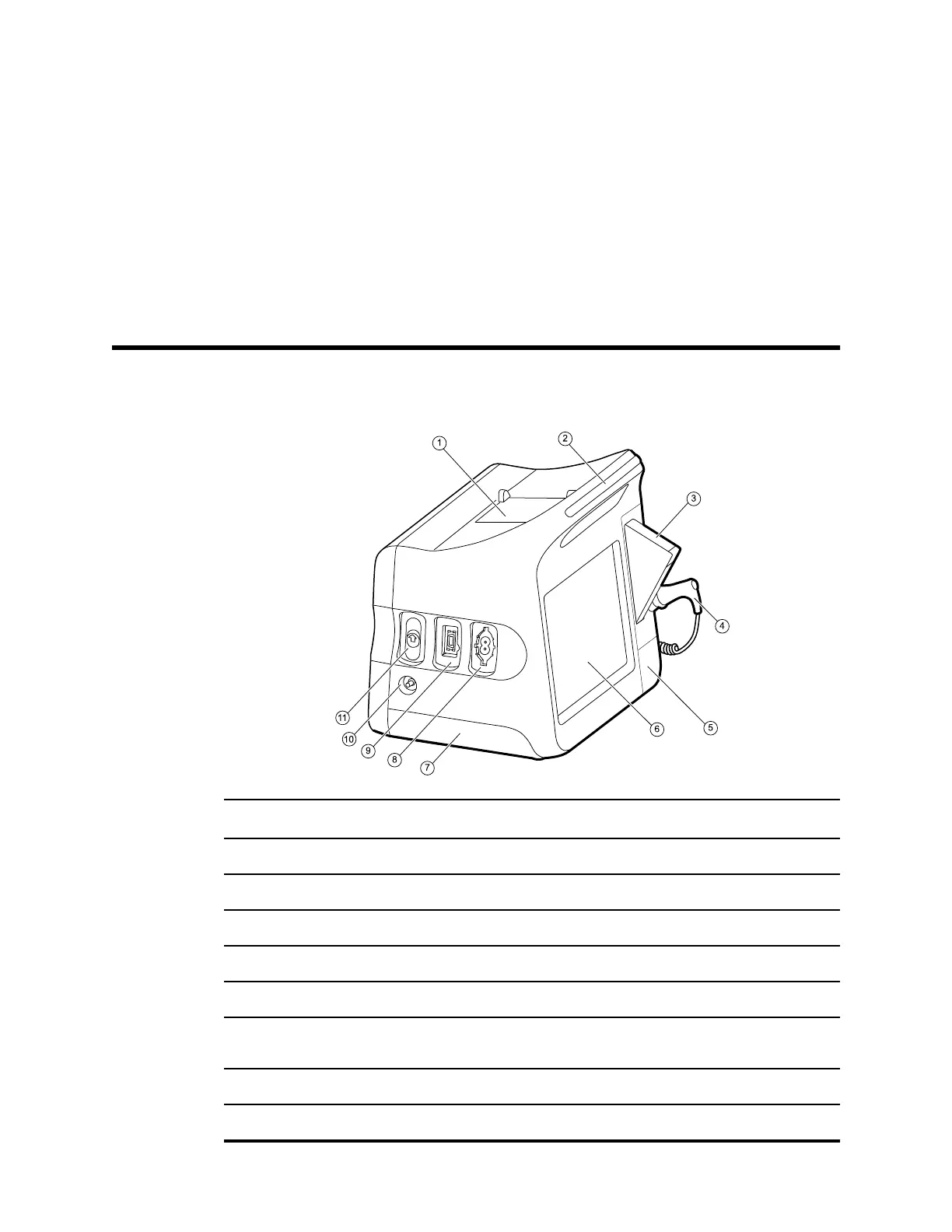

The following diagrams show a full-featured monitor. Your monitor, based on size or
configuration, might not contain all of these features.
No. Feature Description
1 Printer Printer provides a printout of patient and device information.
2 Light bar Provides a visual alarm with red and amber LEDs.
3 Thermometry Temperature probe cover box.
4 Thermometry Temperature probe.
5 Thermometry (connector behind cover) Secures the probe connection to the monitor.
6 LCD screen 1024 x 600 pixels color touchscreen provides a graphical user
interface.
7 Battery compartment (behind cover) Houses the lithium-ion battery.
8 Blood pressure Supports dual-lumen or single-lumen hoses.
