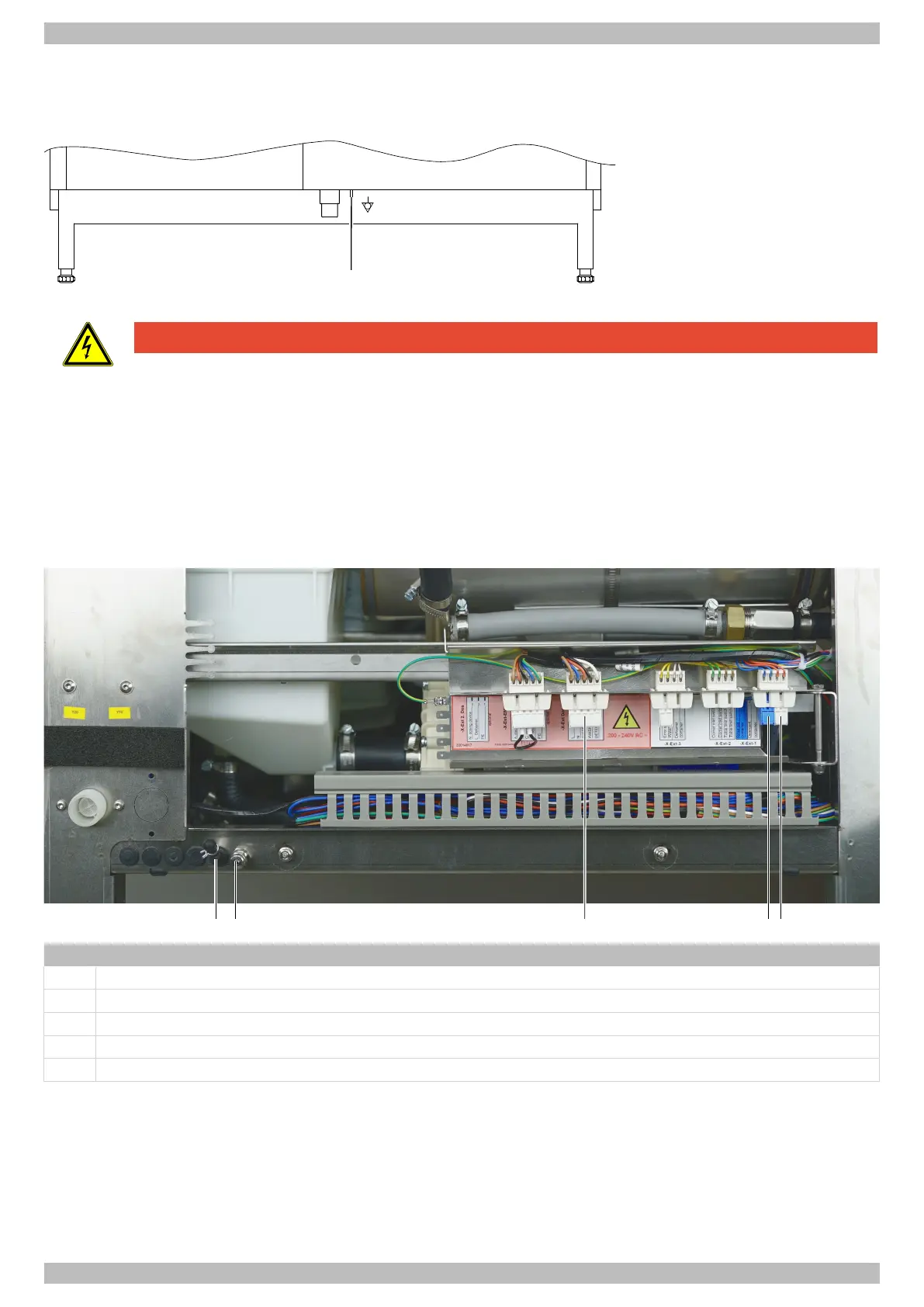

Establishing equipotential bonding
Ø Connect the warewasher to the on-site equipotential bonding system.
Ø Position of the connecting screw (1) see drawing.
5.3 Connecting external dosing devices
Danger
Electric shock from live components
A fatal electric shock can occur when the warewasher and its additional devices are connected to the elec-
trical mains supply.
Ø The warewasher and its additional devices may be connected to the electrical mains supply only by a
specialist company registered within the electrical trade and approved by the energy supplier.
Ø All locally applicable standards and regulations must be observed during the connection to the electrical
mains supply.
Ø When performing installation and maintenance work as well as repairs, unplug the warewasher from the
mains supply. Check that there is no voltage present.
5.3.1 Terminals
Item Name
1 Connection for detergent
2 Connection for rinse aid
3 Connection for external dosing devices
4 Connection for suction tube rinse aid
5 Connection for suction tube detergent
