5.3.2 Electrical connection

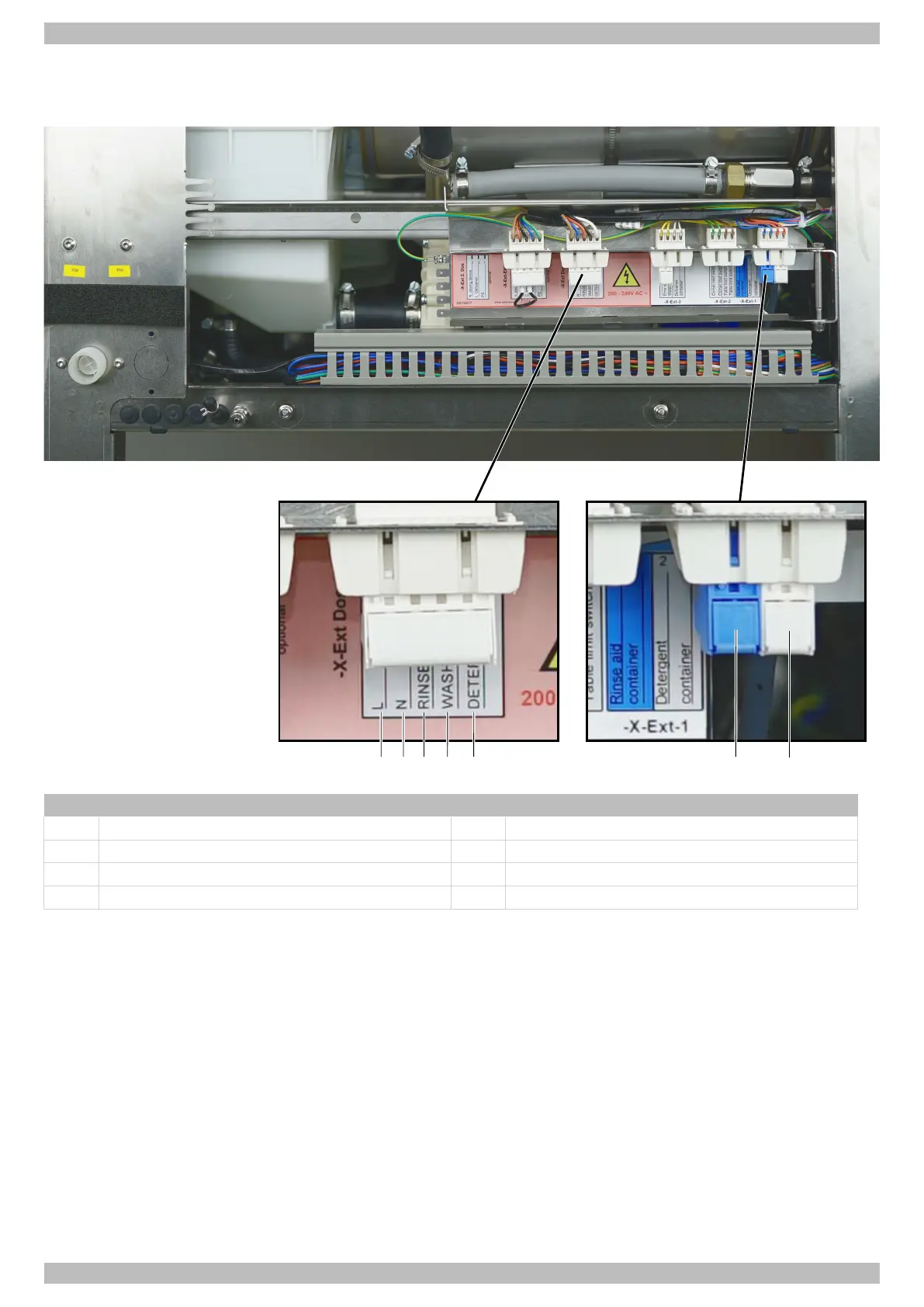

Ø Connect the external dosing device to the 5-pin plug.
Ø Configuring the transfer strip. }18
Item Name Item Name
1 Continuous voltage L 5 DETERGENT terminal
2 N Terminal 6 Connection for suction tube rinse aid
3 RINSE terminal 7 Connection for suction tube detergent
4 WASH terminal
See also
2 Terminals [}29]
5.4 Before working with the warewasher
Ø Have the warewasher set up by an authorised service technician or your dealer.
Ø Have the warewasher connected according to the locally applicable standards and the regulations by authorised
mechanics (water, waste water, electrical system).
Ø After connecting the water and the power properly, contact the relevant Winterhalter dealer or your dealer for the com-
missioning of the warewasher and for providing training in its operation. Have yourself and your operating personnel
trained in the operation of the warewasher.
