3 Machine description
3.1 Description of function
The CTR is a warewasher with automatic rack conveyor. For this, the wash rack is moved with the help of the push bars
through the various zones. The working direction can be either from left to right or from right to left. The detergent for the
main wash zone and rinse aid for the rinse zone are automatically added with the help of external and optional dosing
devices. The CTR can be expanded by a pre-wash zone, a drying zone and an energy module.

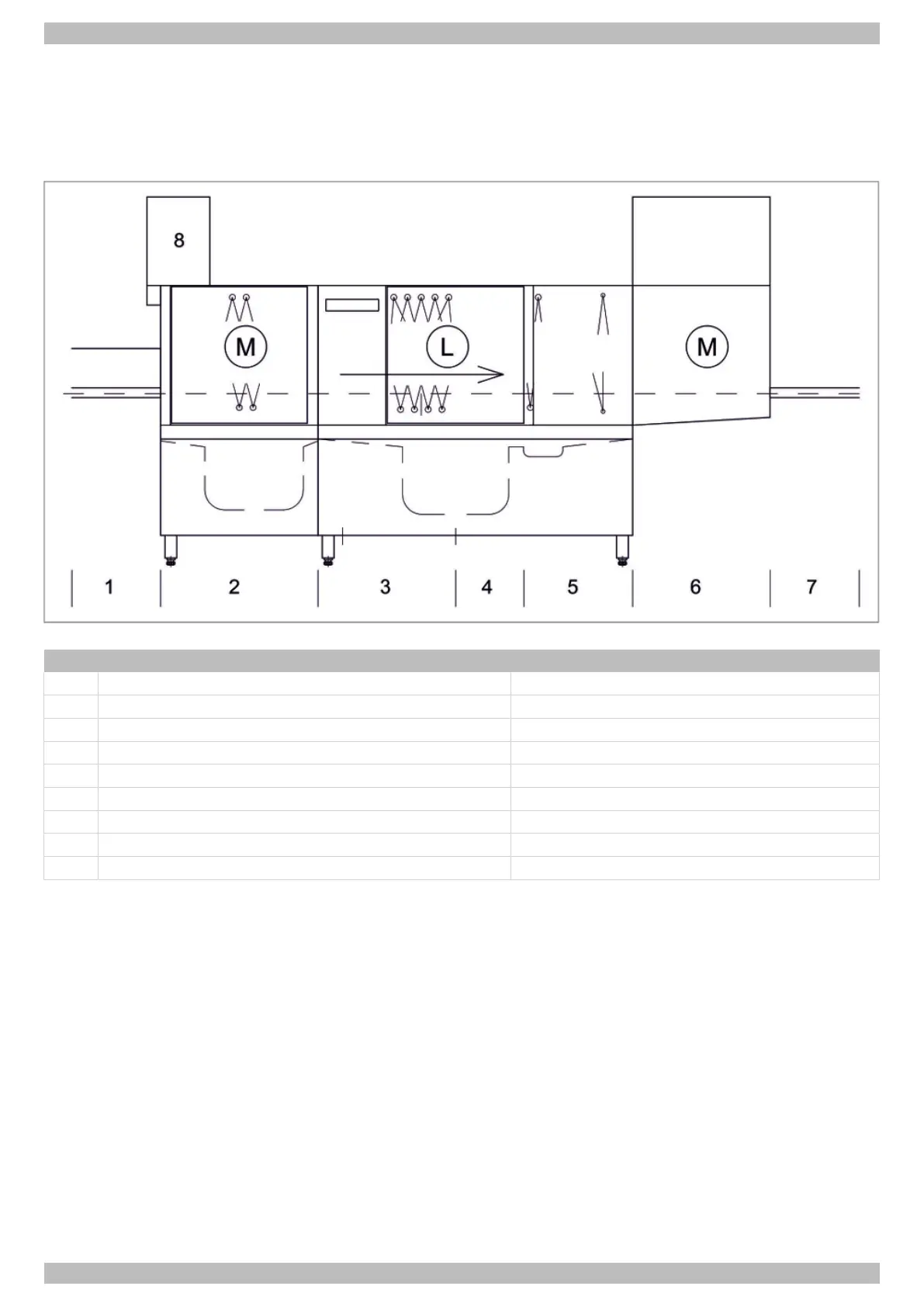

Figure: CTR ML-M with energy module
Item Name Alternative
1 Inlet table (straight or around the corner) Corner conveyor
2 Pre-wash zone M Pre-wash zone S
3 Main wash zone
4 Drip section
5 Rinse zone with dual rinse Single rinse
6 Straight drying zone M Corner drying zone M with corner conveyor
7 Outlet roller table Corner conveyor
8 Energy module
3-5 CTR L CTR M
