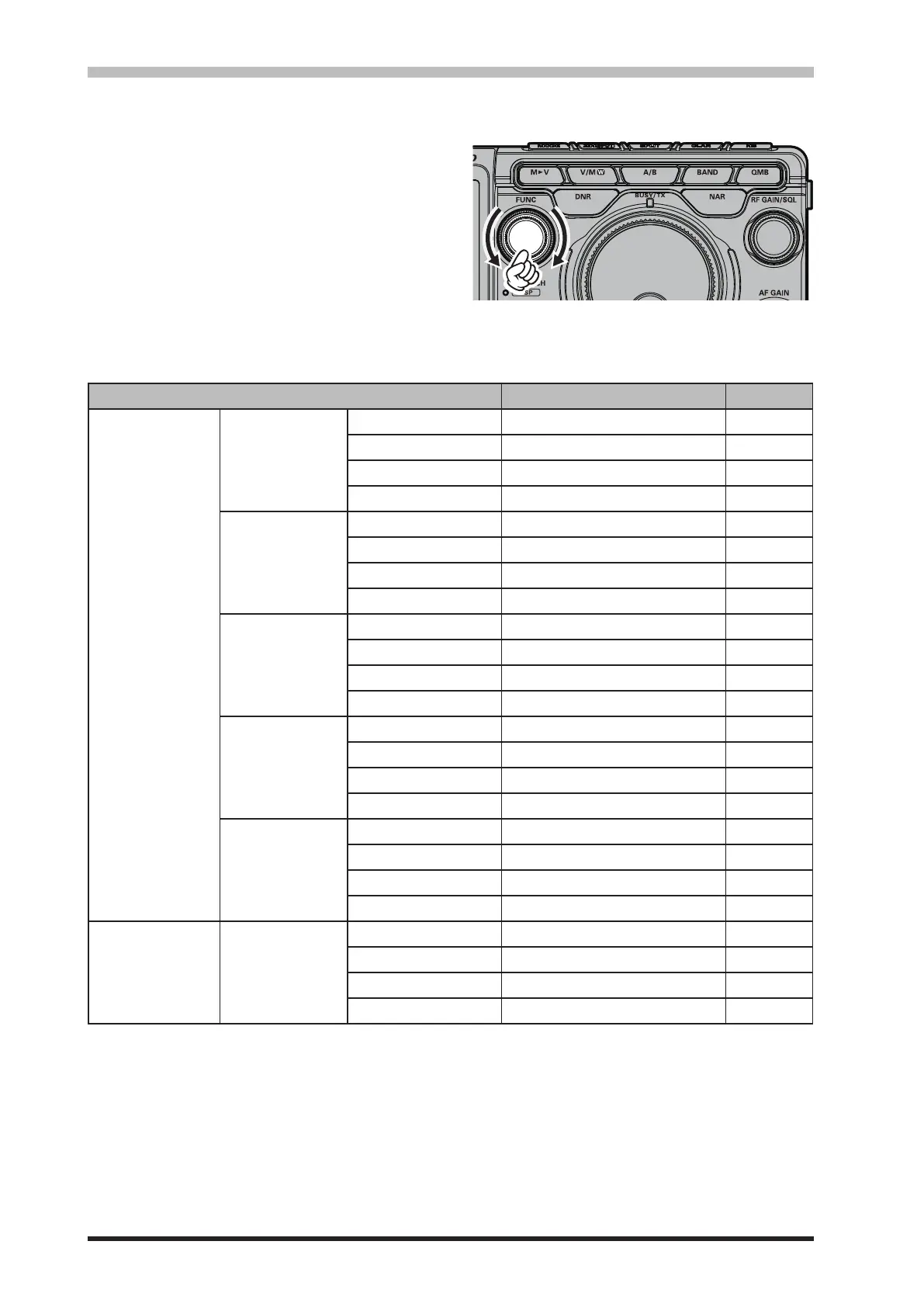

Yaesu FT-710 User Manual

46
Adjustable Receiver Audio Filter
The FT-710 incorporates an adjustable receiver audio lter, that a󰀨ords precision control of the lower and
upper audio ranges independently.
1. Press the [FUNC] knob.
2. Select [CW SETTING] for CW mode and [RA-
DIO SETTING] for other modes.
3. Select the Mode and Menu Item you want to
set (see table below).
4. Rotate the [FUNC] knob, or touch “<” or “>”
on either side of the value to adjust the re-
ceiver audio response as desired.
5. Press the [FUNC] knob, or wait for about 3
seconds to save the setting.
6. Touch [BACK] several times to return to nor-
mal operation.
Menu Item Available Values Default
RADIO SETTING
MODE SSB
LCUT FREQ OFF/100Hz - 1000Hz (50Hz step) 100Hz
LCUT SLOPE 6dB/oct / 18dB/oct 6dB/oct
HCUT FREQ 700Hz - 4000Hz (50Hz step)/OFF 3000Hz
HCUT SLOPE 6dB/oct / 18dB/oct 6dB/oct
MODE AM
LCUT FREQ OFF/100Hz - 1000Hz (50Hz step) OFF
LCUT SLOPE 6dB/oct / 18dB/oct 6dB/oct
HCUT FREQ 700Hz - 4000Hz (50Hz step)/OFF OFF
HCUT SLOPE 6dB/oct / 18dB/oct 6dB/oct
MODE FM
LCUT FREQ OFF/100Hz - 1000Hz (50Hz step) 300Hz
LCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct
HCUT FREQ 700Hz - 4000Hz (50Hz step)/OFF 3000Hz
HCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct
MODE PSK/DATA
LCUT FREQ OFF/100Hz - 1000Hz (50Hz step) 100Hz
LCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct
HCUT FREQ 700Hz - 4000Hz (50Hz step)/OFF 3200Hz
HCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct
MODE RTTY
LCUT FREQ OFF/100Hz - 1000Hz (50Hz step) 300Hz
LCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct
HCUT FREQ 700Hz - 4000Hz (50Hz step)/OFF 3000Hz
HCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct
CW SETTING MODE CW
LCUT FREQ OFF/100Hz - 1000Hz (50Hz step) 250Hz
LCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct
HCUT FREQ 700Hz - 4000Hz (50Hz step)/OFF 1200Hz
HCUT SLOPE 6dB/oct / 18dB/oct 18dB/oct

Yaesu FT-710 Specifications

General

Antenna Tuner	Built-in Automatic Antenna Tuner
Weight	4.5 kg
Type	HF/50 MHz Transceiver
Supply Voltage	13.8 V DC ±15%
IF Frequency	24 kHz
Antenna Connector	SO-239
TX Frequency Range	1.8 - 54 MHz
Modes	AM, FM
RF Output Power	100 Watts
Receiver Type	Superheterodyne
Display	4.3-inch Color TFT
Circuit Type	SDR (Software Defined Radio)
Current Consumption	22 A (maximum)
Output Power	5 - 100 Watts (adjustable)
Dimensions	239 x 80 x 247 mm (W x H x D)
