adVanced operatIon

The course deviation needle moves to the right if
your aircraft is off course to the left of the OBS, or
moves to the left if your aircraft is off course to the
right of the OBS.

The deviation marks indicate off-course level by
2 degrees up to 10 degrees per each side. If your
deviation exceeds 10 degrees, the course deviation
needle will stay at the position of the fth mark (the
end of the scale) of the left or right side.
Flying to a VOR station

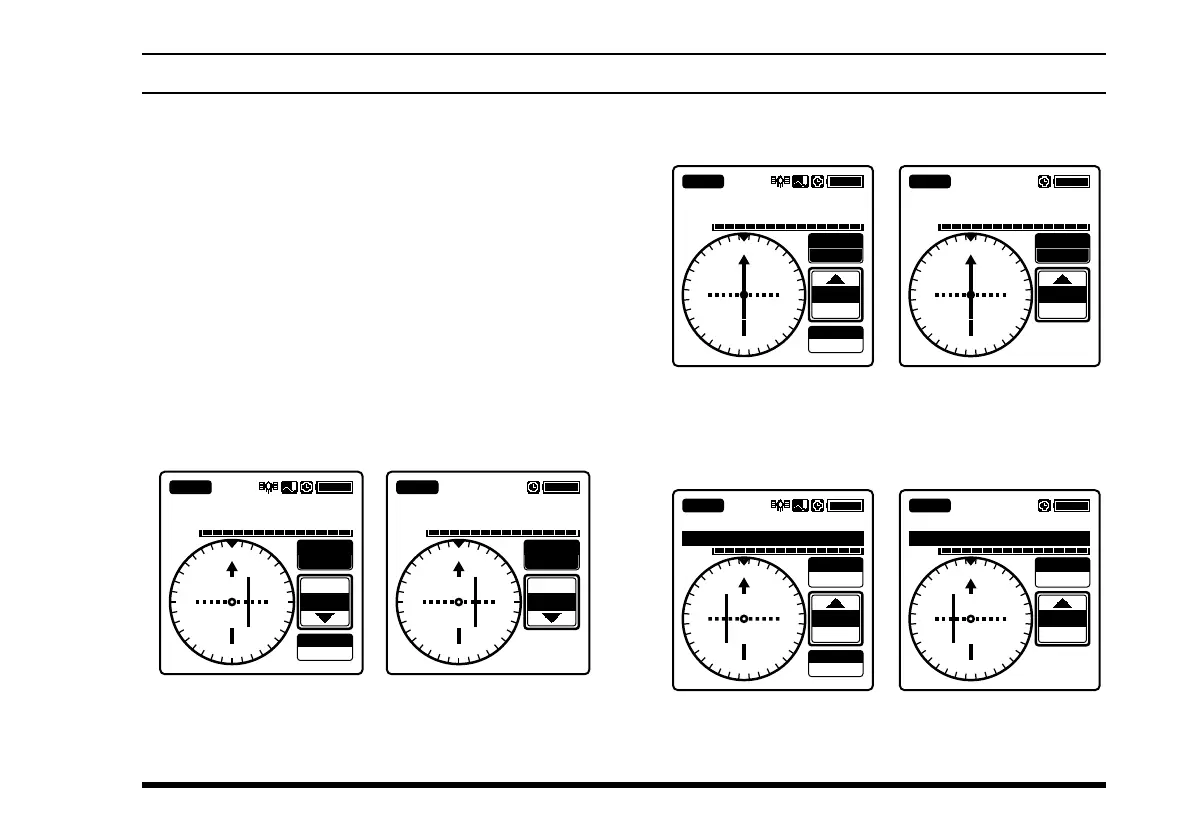

1. Set the frequency to the desired VOR station .
2. Press the
[
◄
]
or
[
►
]
key to select “
OBS
” on the
screen.
113.600
VOL
SOGKT
150
355
°
OBS
000
°
NAV VOR
FROM
KLAX-VOR
N
S
EW
33
24
21
15
12
30
3
6
113.600
VOL
355
°
OBS
000
°
NAV VOR
FROM
KLAX-VOR
N
S
EW
33
24
21
15
12
30
3
6
FTA-750 FTA-550
3. Enter the course to the VOR station with the keypad
or the
DIAL
knob.
113.600
VOL
SOGKT
150
OBS
175
°
NAV VOR
TO
KLAX-VOR
N
S
E
W
33
24
21
15
12
30
3
6
175
°
113.600
VOL
OBS
175
°
NAV VOR
TO
KLAX-VOR
N
S
E
W
33
24
21
15
12
30
3
6
175
°
FTA-750 FTA-550
4. Correct your course until the course deviation
needle on the screen is at the center of the compass
rose.
113.600
VOL
SOGKT
150
OBS
175
°
NAV VOR
TO
KLAX-VOR
S
N
W
E
15
6
3
33
30
12
21
24
170
°
113.600
VOL
OBS
175
°
NAV VOR
TO
KLAX-VOR
N
S
E
W
33
24
21
15
12
30
3
6
170
°
FTA-750 FTA-550
