Fuel Position Resistance (Ω)
FULL 180±5
½ 95±5
EMPTY 10±½
Maintenance of Fuel System
The fuel system is to be maintained and serviced once
for every 100 work hours, with the following method.
The fuel tank must be cleaned once every 600 work
hours.
Fuel filter service
The fuel filter is used to remove dust and impurities in
fuel. The fuel filter is located between the fuel tank and
the gasoline pump (gasoline engine) or oil delivery
pump and oil injection pump (diesel engine).
1. STEEL TUBE CLAMP
2. FUEL FILTER
3. HIGH PRESSURE FUEL PUMP
4. FUEL PUMP FITTING AND GASKET
5. FUEL PUMP MANIFOLD
6. 6 STOR 5/16 SAE FITTING
7. 3 STOR 5/16 SAE FITTING

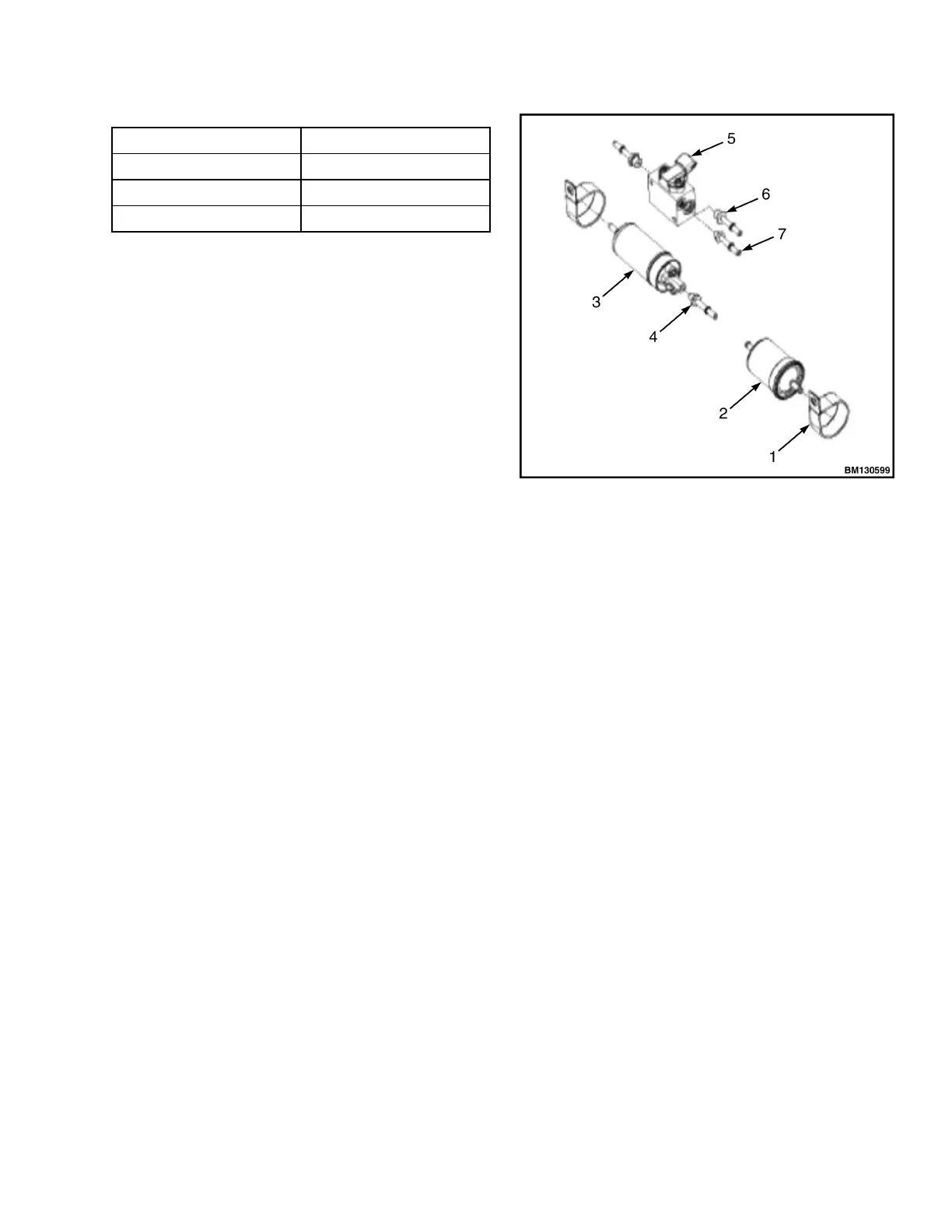

Figure 6. Fuel Filter (PSI 4G64-2.4L Engine)
The fuel filter must be changed every 400 hours or
every 6 months.
