Steering System
STEERING SYSTEM
Type of Steering System Rear Wheel Steering with Power Steering
Forklift Truck Capacity 2T, 2.5T, 3T, 3.5T
Cycloid Full Hydraulic Steering Gear BZZ1-125BC-D
Steering
Cylinder
Cylinder Diameter 70 mm (2.8 in.)
Diameter of Piston Rod 50 mm (2 in.)
Stroke 99 mm (3.9 in.)
Diameter of Steering Wheel 300 mm (11.8 in.)
Overview
The steering system is composed of a hydraulic
steering gear, and steering cylinder.
Hydraulic Steering Gear Assembly
The steering system is composed of a fully hydraulic
steering gear and steering cylinder. See Figure 19
Item 2. The hydraulic steering gear transfers high
pressure hydraulic fluid from the bypass valve to the
steering cylinder. When engine is turned off, the pump
cannot feed hydraulic fluid, and steering may be
performed manually.
The steering column and steering wheel are designed
to tilt 4.5º forward and backward, for operator comfort.
See Figure 19 Item 1.

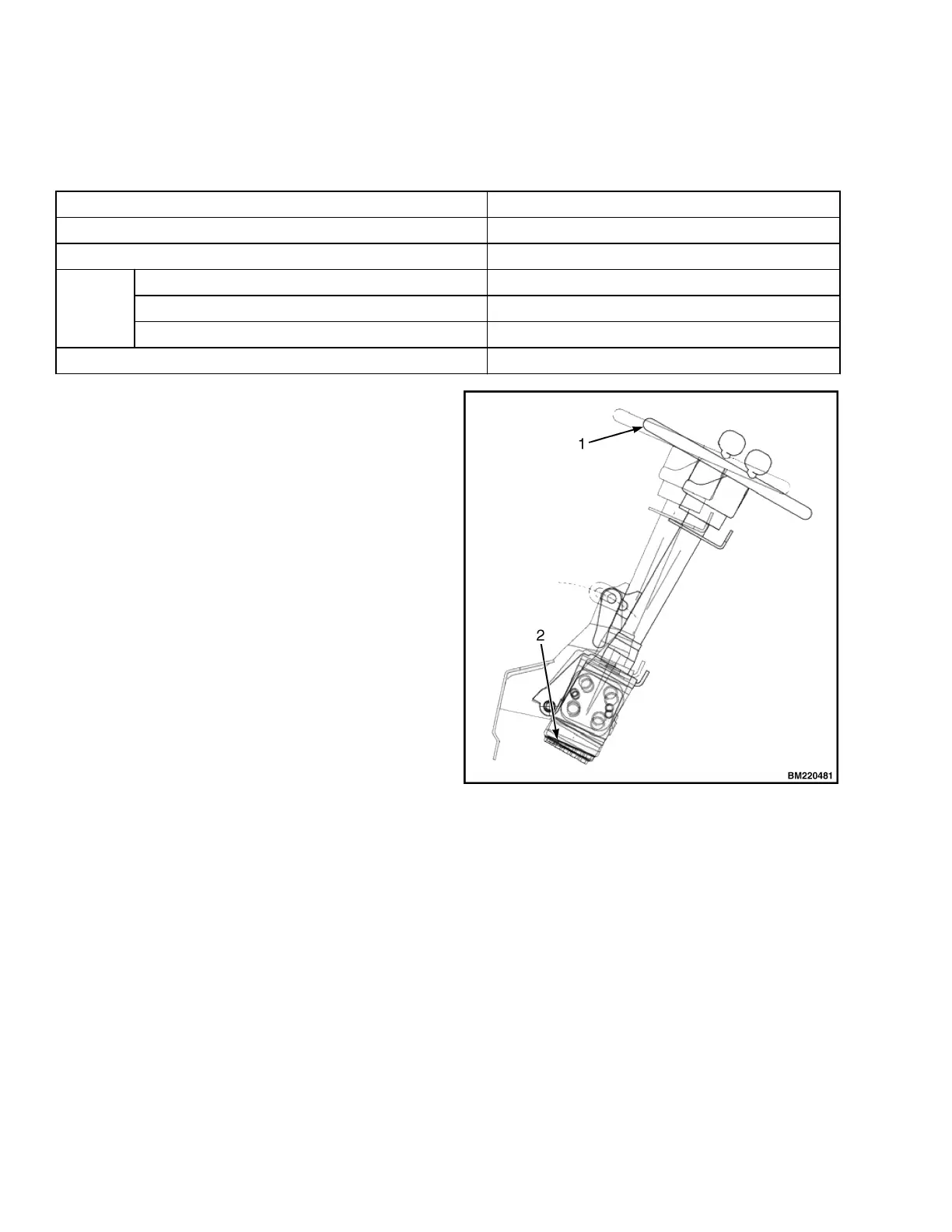

1. STEERING WHEEL 2. STEERING GEAR
Figure 19. Hydraulic Steering Gear and Steering
Wheel
Steering System 8000 YRM 2199
